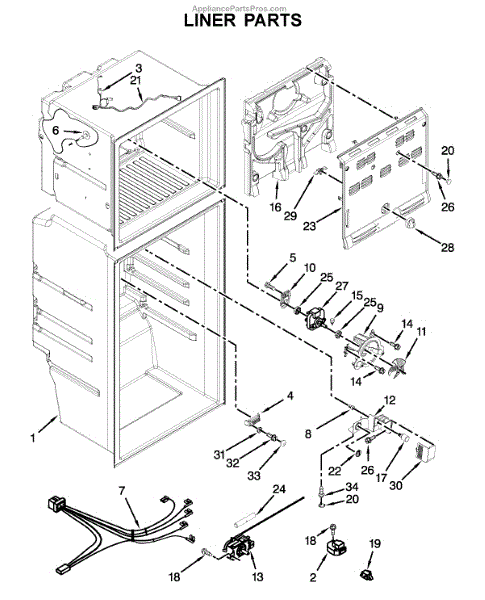

Parts for Whirlpool WRT111SFDM04: Liner Parts

The Defrost Control Board is an OEM part for Whirlpool refrigerators. This board manages the defrost cycle by controlling the defrost heater and monitoring the freezer's temperature.

Causes of a bad defrost control board can include electrical issues, wear from continuous use, or damage from power surges.

Symptoms of a bad defrost control board include:

• Excessive frost buildup in the freezer compartment
• The refrigerator not cooling properly
• The defrost heater not activating
• The refrigerator running continuously without cycling off

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This support mounting bracket helps hold and stabilize internal components so assemblies stay aligned and reduce excess movement. Replacing a worn or broken support restores proper fit and helps reduce noise or rubbing caused by loose parts. What it does:

• Provides structural support for an internal assembly to maintain alignment
• Helps prevent sagging, misalignment, and component-to-component rubbing
• Reduces vibration-related noise when the appliance is operating
• Restores proper spacing that can prevent wear on adjacent parts

• Disconnect power (and water, if applicable) before starting any repairs
• Handle plastic brackets carefully to avoid cracking; use proper hand tools
• Follow the appliance service manual for exact removal and reinstallation steps
• If fasteners or clips are damaged, replace them to ensure a secure fit

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This control box is the appliance's electronic control module that manages cycle functions and user interface signals, restoring reliable control when the original module fails. It replaces a faulty control assembly to return proper operation. What it does:

• Receives user commands and runs timed cycles and functions for the appliance
• Sends power and signals to motors, heaters, valves, or sensors as the machine's control center
• Commonly replaced for symptoms like no response from controls, erratic or unpredictable operation, or unresponsive cycle starts
• Does not describe external housings or user-facing panels — it replaces the internal electronic module only

• Disconnect all power to the appliance before starting work
• Handle the module by edges and avoid touching circuit components; observe ESD precautions
• Verify wiring connections and harness orientation match before reconnecting power

The Thermostat is an OEM part for Whirlpool refrigerators. It is a temperature control component located within the refrigerator compartment or freezer.

Causes of a bad thermostat can include moisture damage compromising electrical components, loose or cracked wiring, or swollen components inhibiting accurate temperature readings over time.

Symptoms of a bad thermostat include:

• Fluctuating interior temperatures not staying within the set range
• Increased frost or ice buildup inside due to inefficient cooling
• Compressor or fans running excessively short-cycling or failing to start
• Thermal cutout activating requiring manual resetting of the fridge

This Whirlpool refrigerator part also fits models manufactured by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 8-18 x 1/2 inch.

The Light Bulb is an OEM replacement part for Whirlpool refrigerators. It is responsible for providing lighting inside the refrigerator, allowing you to easily see and locate stored items.

A bad refrigerator light bulb can occur due to regular usage or electrical issues. If you notice symptoms such as a dim or flickering light, or if the bulb has completely stopped working, it may indicate a faulty light bulb.

Symptoms of a bad refrigerator light bulb include:

• Dim or flickering light
• Complete failure of the bulb

Restore your refrigerator by replacing the faulty or burnt-out light bulb with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Wire Harness is an OEM component specifically designed for Whirlpool refrigerators. It is a network of bundled wires that connect electrical components throughout the unit.

The wire harness plays an important role in powering functions like LED lighting, ice makers, door alarms, and temperature control boards behind interior shelves. It acts as the circulatory system that energizes systems.

Causes of a bad wire harness can include cracked insulation exposing wires to moisture, cuts from sharp edges during repairs, or severed connectors preventing signals from passing through.

Symptoms of a bad wire harness include:

• Lights or ice production malfunctions
• Failure to maintain desired temperatures
• Buzzing or humming sounds behind walls
• Entire refrigerator not powering on

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This evaporator cover is the interior plastic shroud that protects the refrigerator evaporator and helps direct cold airflow for consistent cooling. It replaces damaged or cracked covers that can expose the evaporator and disrupt airflow. What it does:

• Shields the evaporator coil and refrigeration components from direct contact and debris
• Helps channel airflow across the evaporator for even temperature distribution
• Reduces frost buildup by maintaining proper air paths around the coil
• Addresses symptoms such as unusual frost accumulation, airflow disruption, or visible damage to the evaporator area

• Disconnect power to the appliance before beginning any repair
• Typically accessed from inside the freezer/refrigerator compartment; remove shelves, drawers, or ice chute as needed
• Handle plastic parts gently to avoid cracking; inspect mounting tabs and replace any broken fasteners
• Check the evaporator gasket and drain before reassembly

This rubber grommet cushions and protects components where wiring, tubing or hardware pass through panels, helping reduce vibration and wear. Replace worn grommets to restore a snug, quiet fit and help prevent chafing. What it does:

• Cushions parts to reduce vibration and noise during operation
• Protects wires, hoses, and edges from abrasion where they pass through openings
• Keeps components aligned and helps maintain a secure fit
• Prevents metal-to-metal contact that can lead to premature wear

• Unplug the appliance or shut off power before beginning any repair
• Inspect the surrounding mounting area and replace any damaged fasteners or seals
• Pry out the old grommet carefully to avoid enlarging the opening; press the new grommet into place until fully seated

Size: 8 x 1/2 ab.

This replacement thermostat knob restores safe, easy temperature selection on compatible ranges and ovens. It provides a secure grip and clear setting alignment so you can accurately set bake and broil temperatures. What it does:

• Replaces a cracked, stripped, or missing temperature control knob
• Allows smooth turning to select oven temperature settings
• Restores tactile feedback and alignment with the control panel
• Helps eliminate slipping or poor connection between user and thermostat shaft

• Includes: 1 thermostat knob

• Disconnect power to the appliance before beginning any service
• Most knobs pull straight off the control shaft; align splines and press firmly to install
• If a set screw is present, tighten securely but do not overtighten

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening
