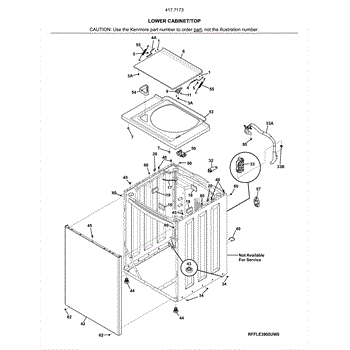

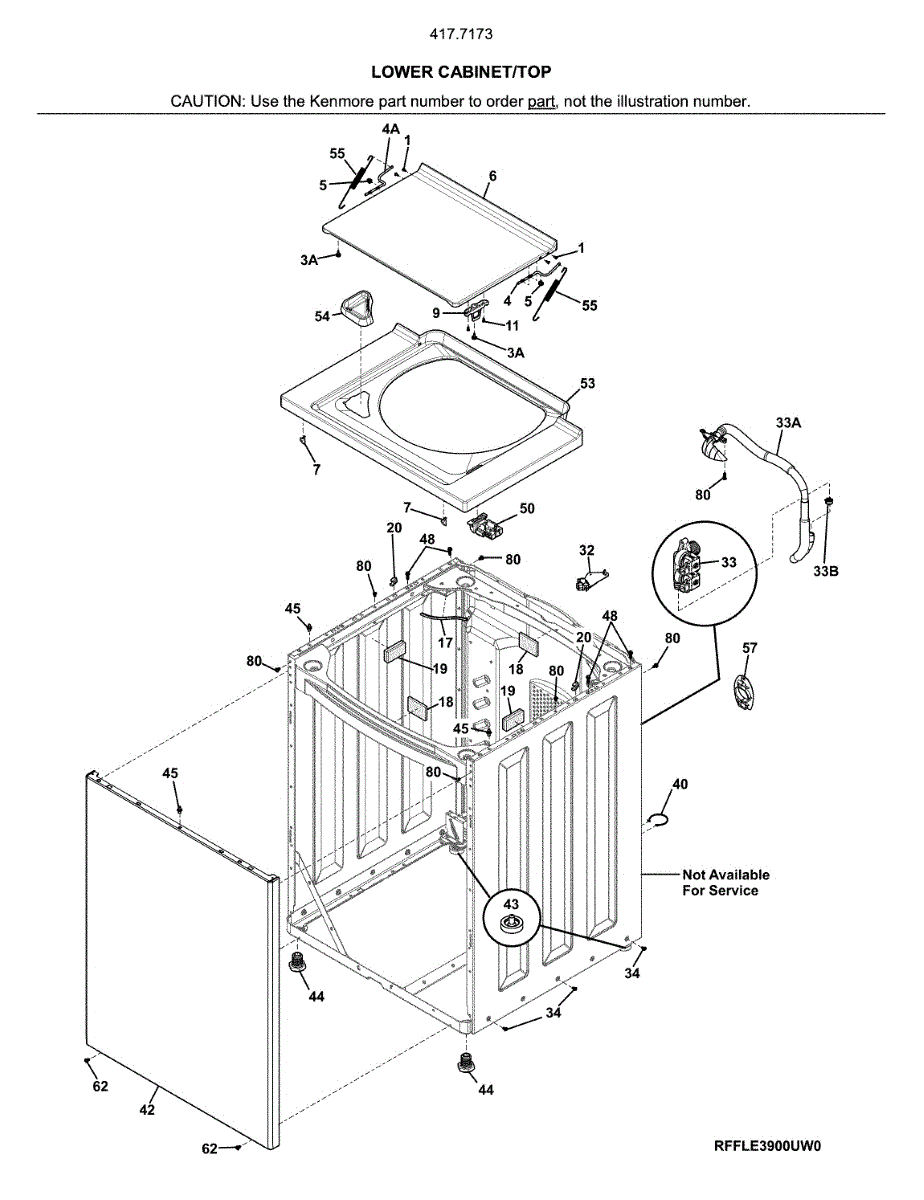

Parts for Kenmore 417.71732811 (41771732811, 417 71732811): Lower Cabinet / Top Parts

Pan hd phillips ,6-32 x 0.337 ,dog point

This rubber lid bumper cushions the washer lid to prevent hard contact and reduce noise and wear. It replaces a worn or missing bumper to help the lid close more softly and sit level. What it does:

• Acts as a soft contact point between the lid and cabinet to absorb impact
• Reduces lid slamming, rattling, and vibration during operation
• Helps keep the lid aligned and prevents cosmetic damage to the rim
• Commonly replaced when the bumper is cracked, flattened, or missing

• One rubber lid bumper

• Install by removing the old bumper and pushing the new bumper into the mounting hole or recess; hand tools may be helpful
• Ensure the appliance is powered off and disconnected before servicing
• Inspect surrounding mounting area for damage and replace any broken retainers as needed
• If the bumper is hard to seat, warm it briefly with a hair dryer to improve flexibility

This genuine OEM part is a washer lid. The washer lid is the main piece that covers the washer. Over time, a washer lid can become damaged to the point where it no longer closes securely. If the washer lid is no longer closing all the way or is severely cracked or damaged, it will need to be replaced.To replace this part, start by making sure the washer is unplugged. After it has been powered off, proceed to take a putty knife to lift to release the two retaining clips that secure the washer's main top. Once released, proceed to remove the lid lock assembly wire connector. Fully remove the main top and set it upside down. Release the tension on the lid springs and detach the springs from the main top and hinge bars. Using a Phillips head screwdriver, remove the screws that secure the hinge bars to the lid. Push the hinge bars through the bearings then twist the bars to remove them. This will separate the lid from the main top. Take the new lid and align it with the main top. Insert the hinge bar between the main top and bearing while threading the screws to secure the new top. Reinstall the top panel and connect the wire harness. This replacement part is sourced directly from the manufacturer and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand washers.

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

The Striker is an OEM component specifically designed for Frigidaire laundry centers. It connects the door to the stainless steel panel, providing secure closure of the unit.

Symptoms of a bad striker include:

• Loose or misaligned door that does not fit properly
• Latching issue causing the door to open unintentionally
• Failure points developing around striker mounting location
• Over time increased stresses on other door closure parts

Causes of a bad striker can be normal wear from repeated door openings, damage during moves impacting door alignment, or loose fasteners compromising connections.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore laundry center models. Replace promptly before needing other repairs.


This strike screw secures the door strike/catch to the appliance, keeping the latch aligned so the door closes firmly and any safety interlock engages. Replacing a missing, stripped, or corroded screw helps restore reliable, consistent door latching. What it does:

• Fastens the strike/catch to the door or cabinet
• Maintains proper alignment for positive latch engagement
• Helps address issues like door not latching, loose/rattling door, or intermittent door switch activation
• Replace if threads are stripped, the head is damaged, or the screw is missing

• 1 strike screw

• Disconnect power before servicing; allow hot surfaces to cool. For gas appliances, also shut off the gas supply.
• Support the door or strike and remove the damaged/missing fastener.
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening.
• Verify door alignment and latch/lock operation after installation.

This ratchet-style fastener secures replaceable panels or components, keeping parts locked in place to prevent loosening and maintain proper alignment. Use it to restore secure fastening and reduce vibration or rattling. What it does:

• Holds panels or components with a one-way ratcheting grip to prevent back-out
• Restores secure attachment when original fastener is worn or stripped
• Helps stop panel rattling, vibration noise, or intermittent gaps
• Works where a small, durable locking fastener is required

• Disconnect power and unplug the appliance before starting any repair
• Use appropriate hand tools; avoid overtightening which can strip threads
• Inspect mating holes and surrounding fasteners; replace any damaged parts
• Test fit and operation after installation to ensure secure engagement

The Water Valve is an OEM part for Frigidaire washing machines. It is responsible for regulating the flow of water into the washer tub and hoses during all cycles. The water valve allows cold, warm, or hot water to pass through depending on the settings and ensures the proper amount is distributed for optimal cleaning performance.

Causes of a bad water valve can include mineral buildup over time, worn or damaged internal components that interfere with water flow regulation, or issues with the electronic control board that operates the valve.

Symptoms of a bad water valve include:

• Inability to select warm or hot water temperatures
• Poor or inconsistent water temperature
• No water filling or slow water filling during the wash cycle
• Water leaks from the valve area

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

The Fill Hose Assembly is an OEM part for Frigidaire laundry centers. This assembly is responsible for supplying water to the washing machine during the fill cycles. It ensures that water flows smoothly and efficiently from the household water supply to the washing machine, allowing for proper washing and rinsing of clothes.

Causes of a bad fill hose assembly can include wear and tear from regular use, damage from kinks or twists, or deterioration due to mineral buildup. If the fill hose assembly is compromised, it can lead to leaks, insufficient water flow, and potential water damage.

Symptoms of a bad fill hose assembly include:

• Water leaks around the hose connection points
• The washing machine not filling with water properly
• Slow or uneven water flow during the fill cycle
• Visible cracks or damage on the hose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This backsheel clip secures the appliance backsheet to the cabinet, keeping panels aligned and preventing gaps. It's a simple replacement that restores proper panel fit and reduces rattling or movement. What it does:

• Holds the backsheet or rear panel in place for a flush fit
• Stabilizes the cabinet to reduce vibration and noise
• Helps maintain proper airflow paths by keeping panels sealed
• Replaces damaged, broken, or missing mounting clips

• High-level, screwless snap-in or push-fit — remove power and access the rear panel before replacing
• Use a flashlight and small flat tool to pry the old clip free if brittle or stuck
• Wear gloves to protect hands from sharp sheet-metal edges
• If multiple clips are damaged, replace all affected clips for even panel alignment

This replacement control panel restores the user interface and appearance of your appliance's console, providing a clean mounting surface for buttons, knobs, and the display so controls operate reliably and look like new. What it does:

• Houses the control buttons, selector switches, and display area used to operate the appliance
• Replaces cracked, faded, or cosmetically damaged panels to improve appearance
• Helps remedy problems where buttons stick, feel loose, or no longer register presses
• Provides the proper mounting and alignment for switches and electronic components

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or console screws to access and replace the panel; some models require transferring switches or displays from the old panel.
• Handle edges carefully and avoid touching exposed circuitry or contacts.

Self leveling leg pad

The Leveling Leg is an OEM component specifically designed for Frigidaire washers. These adjustable legs properly mount and balance the washer on varied floor surfaces within specifications.

Symptoms of a damaged leveling leg include:

• Excessive vibration during wash and spin cycles
• Abnormally loud operation noises
• Difficulty opening and closing the washer door

Causes can include deterioration of internally threaded plastic rods over repeated adjustments. Frigidaire engineers leveling legs as a wear item to preserve smoother cycles.

This OEM Frigidaire part is also compatible with Kenmore, crossed references to Electrolux brands may not apply. Leveling aids proper support under heavy drum motions and balanced spin extraction for vibration reduction. Replacing compromised legs restores stable platform balance as designed.


A small locating pin used to align and secure parts during assembly, helping panels and components sit correctly for reliable operation. Ideal when a worn or missing pin causes fit or alignment issues. What it does:

• Positions and holds panels, trim, or assemblies in the correct location during reassembly
• Prevents shifting or misalignment of covers and access panels
• Restores proper fit where a bent, broken or missing pin causes loose trim or gaps
• Small, simple replacement that addresses common fit/fitment symptoms

• Disconnect power and unplug the appliance before beginning any work
• Use basic hand tools; avoid forcing parts into place to prevent damage
• Inspect surrounding components for damage and replace if worn

This is a replacement 12-24 UNC machine screw used to secure appliance panels and internal components so fittings stay tight and stable during use. It restores proper fastening where the original screw is damaged or missing. What it does:

• Fastens and secures panels, brackets, and component assemblies
• Helps stop rattling, loose parts, or gaps caused by a missing or stripped screw
• Provides correct thread engagement for 12-24 UNC threaded holes
• Replaces worn, rusted, or damaged screws to restore original fit

• Disconnect power and water to the appliance before servicing
• Use the correct driver and size to avoid stripping the head
• Thread in by hand first, then tighten snugly—do not overtighten
• Replace only with the exact part number to ensure proper fit and function

This door lock assembly secures the washer door and signals the control that it's safe to run. Replace it to restore reliable locking and allow cycles to start and spin as designed. What it does:

• Locks and releases the door at the correct points in the cycle
• Sends door-closed status to the main control board
• Prevents the door from opening while the tub is moving
• Common symptoms: cycle won't start, "door open/locked" message, door won't lock or unlock, washer won't spin

• Door lock assembly

• Disconnect power before servicing; internal components can move unexpectedly
• Access the lock behind the front panel/door gasket area; remove the door-boot clamp and mounting screws as needed
• Transfer wiring connectors one at a time to the new lock to maintain correct orientation
• Test door operation and run a quick cycle check before final reassembly

The Lock is an OEM part for Frigidaire washers, designed to securely close the door. The mechanism engages at the start and releases at the cycle's end or pauses for drum access. Over time, it may wear out or malfunction, jeopardizing appliance safety and function.

Causes of a bad lock can include mechanical wear and tear from regular use, electrical faults within the lock mechanism, damage from forceful closing or opening of the washer door, and corrosion or buildup affecting the lock's components.

Symptoms of a bad Lock include:

• The washer door won't lock or unlock
• The washing machine fails to start a cycle due to the door not being securely locked
• An error code appears on the washer's display indicating a door lock issue
• Unusual noises from the door area when attempting to start a cycle

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser is an OEM replacement part for Frigidaire washing machines. Located on the interior door, the dispenser accurately releases detergent, softener, and other treatments through a series of internal chambers and slots directly into the wash drum.

Causes of failure include clogging of internal dispenser parts from built-up detergent, damaged outlets preventing proper release into the drum, worn gears interfering with controlled dispensing timing, or electronic control issues disrupting the sequenced release.

Symptoms of a bad dispenser include:

• Products not fully dispensing or spraying inside the wash drum as intended
• Residue buildup inside dispenser compartments
• Loose, sagging, or missing internal dispenser components
• Premature dispensing during water fill instead of correct cycle times

This OEM Frigidaire component is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a suspension spring for select washers. It supports and stabilizes the wash tub during spin and agitation to reduce vibration and noise, helping the machine run smoothly.

• Supports the tub within the cabinet to control movement
• Helps reduce excessive vibration, banging, or walking during spin
• Addresses symptoms like out-of-balance loads, noise, or shaking
• Loss of tension, stretching, or breakage can require replacement

• Unplug the washer and shut off water supply before repair
• Access typically requires removing the top or front panel; support the tub to relieve spring tension
• Wear gloves and eye protection; springs are under tension
• Replace any damaged or missing suspension components in pairs or as required.

This is a replacement mounting bracket that secures appliance panels and components, restoring proper alignment and stability. A direct-fit part that helps stop loose panels, rattling, or misalignment for safe, reliable operation. What it does:

• Provides a secure attachment point for panels, trim, or internal components
• Restores correct alignment to reduce rattling and vibration
• Prevents parts from shifting or coming loose during operation
• Re-establishes proper fit where a worn or broken bracket allows gaps

• One mounting bracket

• Install with appliance powered off and disconnected from power source
• Use appropriate fasteners and torque to avoid stripping or damage
• Inspect surrounding clips and hardware; replace any damaged fasteners

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Wiring Harness is an OEM part for Frigidaire washing machines. It is responsible for connecting various electrical components of the washer, allowing for proper communication and voltage.

A bad wiring harness can be caused by wear and tear, exposure to moisture, or damage from rodents or pests. Signs of a faulty wiring harness include the washer not powering on, error codes displayed on the control panel, or issues with the functioning of different washer features.

Symptoms of a bad wiring harness can include:

• The washer not powering on
• Error codes displayed
• Issues with specific  features

Replace your worn-out or damaged wiring harness with this genuine OEM part to restore your washer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Hex washer head ,10-32 x 0.375. Ground

No.8 pan head `10 - 10b x 0.50 `cr/sq drive
