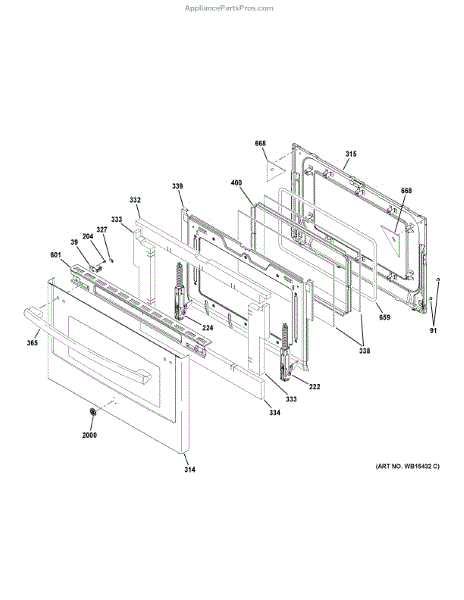

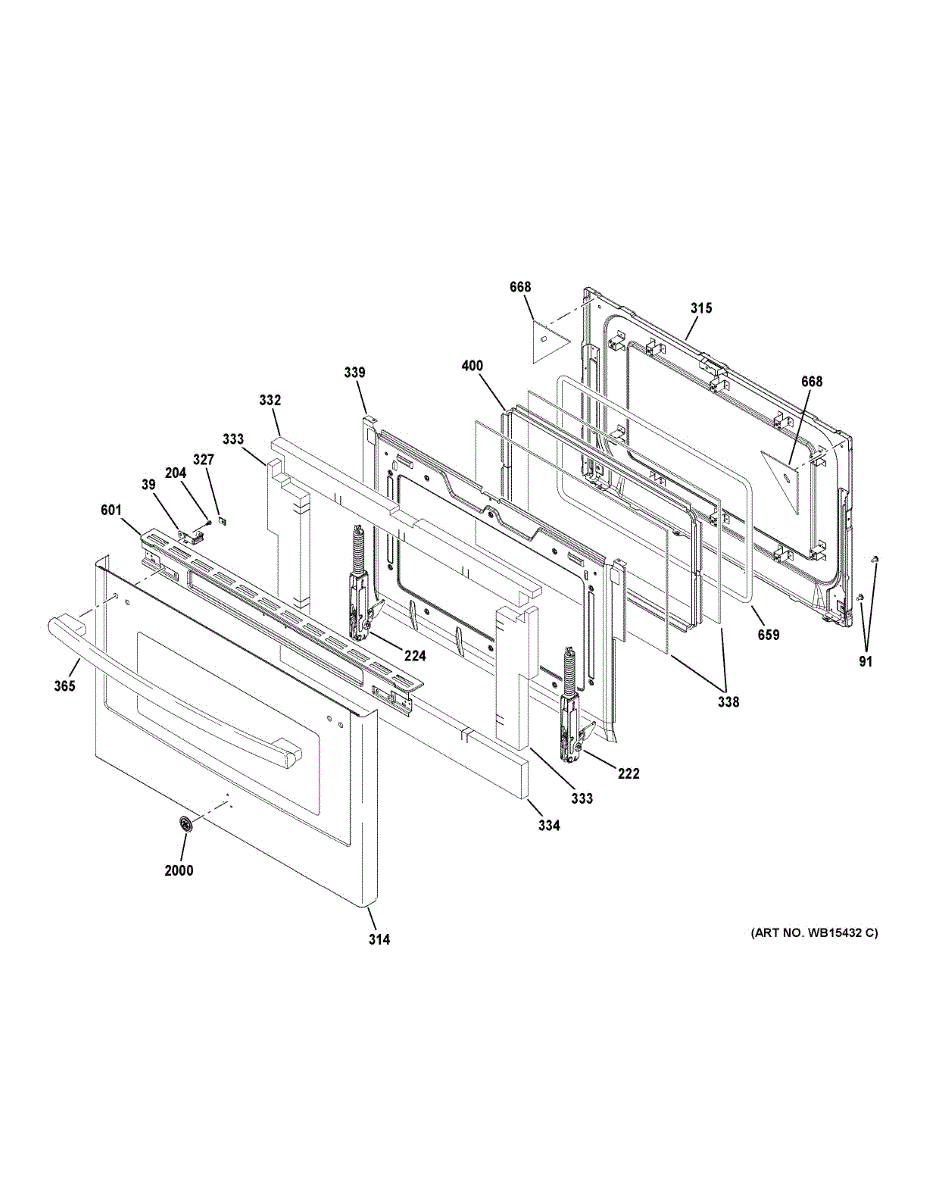

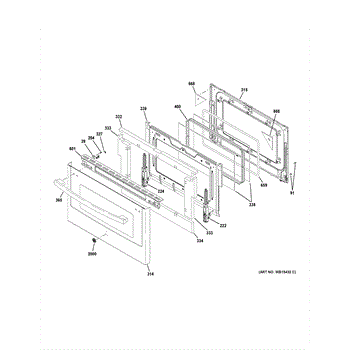

Parts for Ge JGB860FEJ1DS: Lower Door Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

The Door Hinge is an OEM part for GE gas ranges. It acts as the pivot point that allows the oven door to smoothly and securely open and close.

Symptoms of a bad hinge can include wear and tear over time, damage or bending due to excessive force applied while opening or closing the door, or failure of components that assist the door movement.

Symptoms of a bad door hinge include:

• The door becoming misaligned and no longer closing or sealing properly
• Difficulty or resistance when opening and closing the door
• Noise or squeaking coming from the hinge area
• Visual signs of damage or bending to the hinge itself

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side door hinge secures and supports the appliance door, providing stable pivoting and proper alignment so the door opens and closes smoothly. It replaces a worn or damaged hinge to restore correct door fit and operation. What it does:

• Supports the weight of the right-hand door and provides the pivot point for opening and closing
• Restores proper door alignment when the door sags, binds, or sits crooked
• Helps stop scraping, rubbing, or uneven gaps that can affect sealing
• Works with existing hinge pins and mounting points to reestablish smooth movement

• One right-side door hinge

• Unplug the appliance or shut off power before starting any work; for refrigerators, also remove food and secure shelves/door
• Support the door while removing fasteners to prevent dropping or damage
• Keep all original screws and hardware; replace only what is specified for your model

The Handle and End Cap Assembly is an OEM part for GE gas range models. It provides a grip for opening and positioning the oven door.

Symptoms of a faulty assembly include:

• Loosened mounting of the handle introducing inaccuracies
• End caps cracking or warping from prolonged heat exposures
• Degraded aesthetic appeal detracting from the cooking space

Failures stem from normal wear on mounting screws from frequent use, impact damages compromising structural support, and heat exposures deteriorating plastic end caps over time.

This OEM part is compatible with select Hotpoint and RCA gas range models as well.

A replacement inner door insulation that restores the refrigerator door's thermal barrier to help maintain proper temperature and reduce condensation. Fits behind the door panel to support efficient cooling and prevent cold air loss. What it does:

• Replaces damaged or compressed insulation that can allow cold air to escape
• Helps reduce moisture buildup and frost on the door interior
• Supports consistent internal temperatures for better food preservation
• Dampens noise and helps the door close more evenly

• Disconnect power to the appliance before starting any repairs
• Remove the door panel and any trim or handles to access the insulation
• Handle carefully around sharp sheet metal and retain any fasteners for reassembly
• Use the exact replacement part number for proper fit; avoid forcing or trimming the insulation
