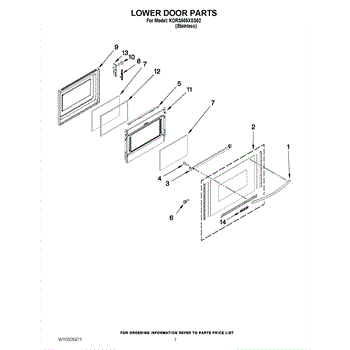

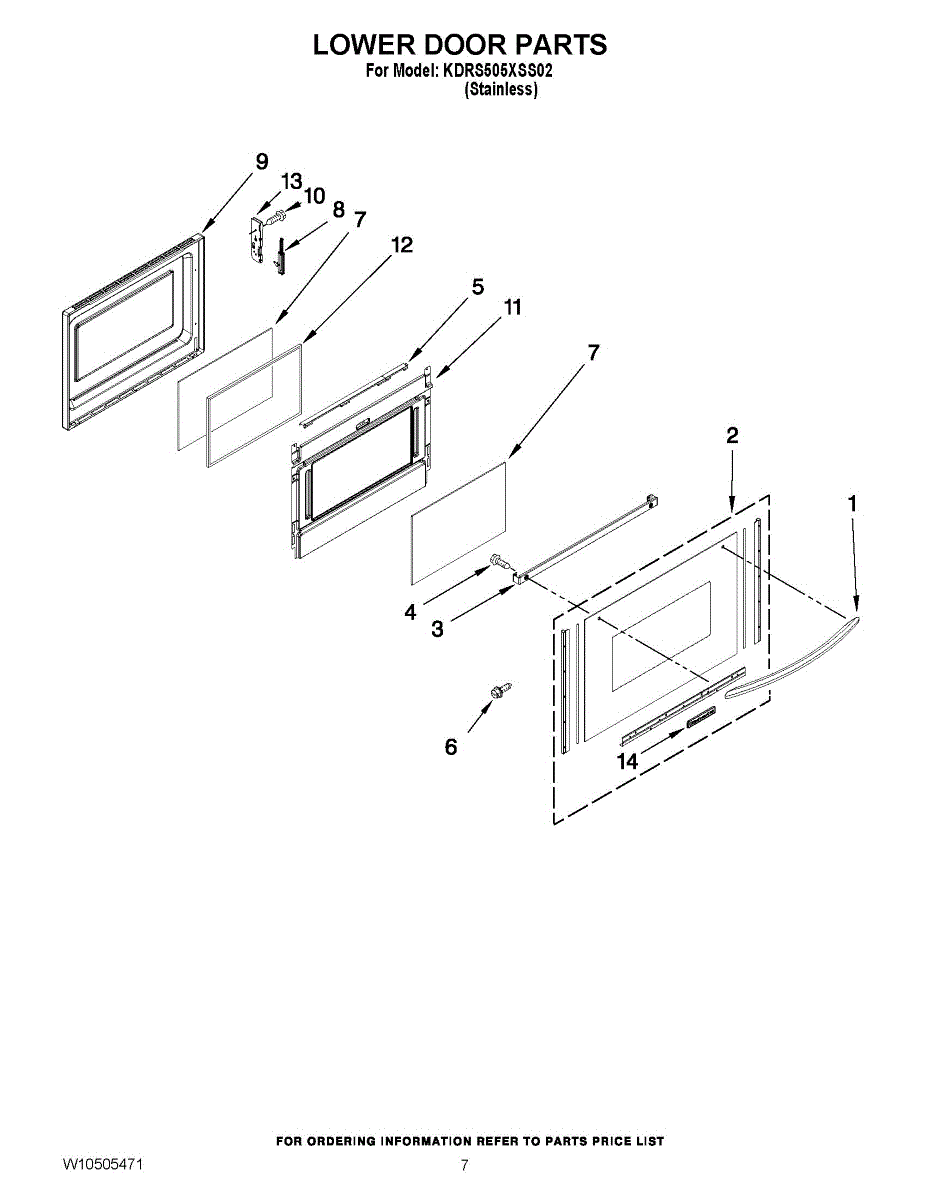

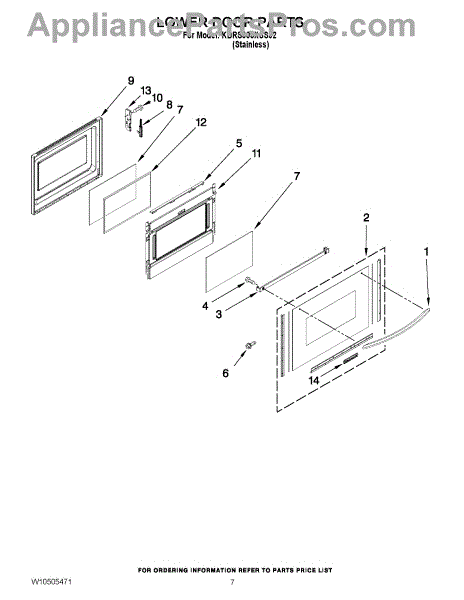

Parts for Kitchenaid KDRS505XSS02: 06 - Lower Door Parts

Color: Stainless

Color: Stainless

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This inner oven door glass mounts on the inside of the door to help seal in heat while letting you view cooking progress. Replace damaged glass to restore safe viewing, proper insulation, and consistent oven performance.

• Forms the inner pane of the oven door window and acts as a thermal barrier
• Helps the oven reach and maintain set temperature by limiting heat loss through the door
• Provides visibility into the oven cavity during cooking
• Replace if the glass is cracked, shattered, missing, or heat is escaping from the door

• Disconnect power and allow the oven to cool completely; if applicable, shut off gas
• Remove the door and place it on a protected, flat surface before disassembly
• Wear cut-resistant gloves and eye protection; handle glass carefully and support the edges
• Reuse existing brackets, seals, and screws; note orientation during reassembly

This right-side oven door hinge secures and supports the oven door, restoring proper alignment and smooth opening/closing. A direct-fit hinge helps stop door sag, reduce gaps, and maintain a safe seal for efficient oven operation. What it does

• Supports the oven door weight and maintains correct door alignment
• Guides smooth opening and closing to prevent sticking or uneven movement
• Helps restore a tight door seal to reduce heat loss and uneven cooking
• Addresses symptoms like a drooping door, uneven gaps, or a door that won't stay open

• Disconnect power to the oven before beginning any repair to avoid electrical or heat hazards.
• Support the oven door while removing and installing the hinge to prevent dropping or damage.
• Use basic hand tools; follow OEM instructions for hinge orientation and fastener torque.

This left-side oven door hinge secures and supports the oven door, restoring smooth opening, closing and proper alignment. Designed to replace a worn or damaged hinge and help eliminate door sag, rubbing and improper sealing. What it does:

• Supports the oven door at the left hinge point so the door opens and closes smoothly
• Restores correct door alignment to prevent rubbing, gaps, or uneven sealing
• Eliminates sagging or a door that won't stay open or won't latch properly
• Works with the oven's door assembly to maintain safe operation

• Disconnect power to the range before starting and ensure the oven is cool
• Support or remove the oven door per the service manual before removing/installing the hinge
• Keep fasteners and mounting hardware together; torque to OEM specs if available

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power
