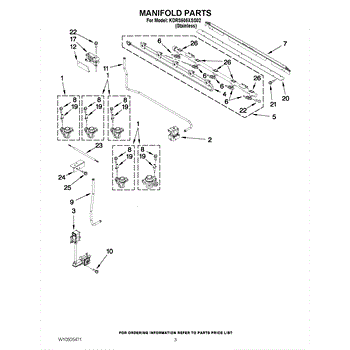

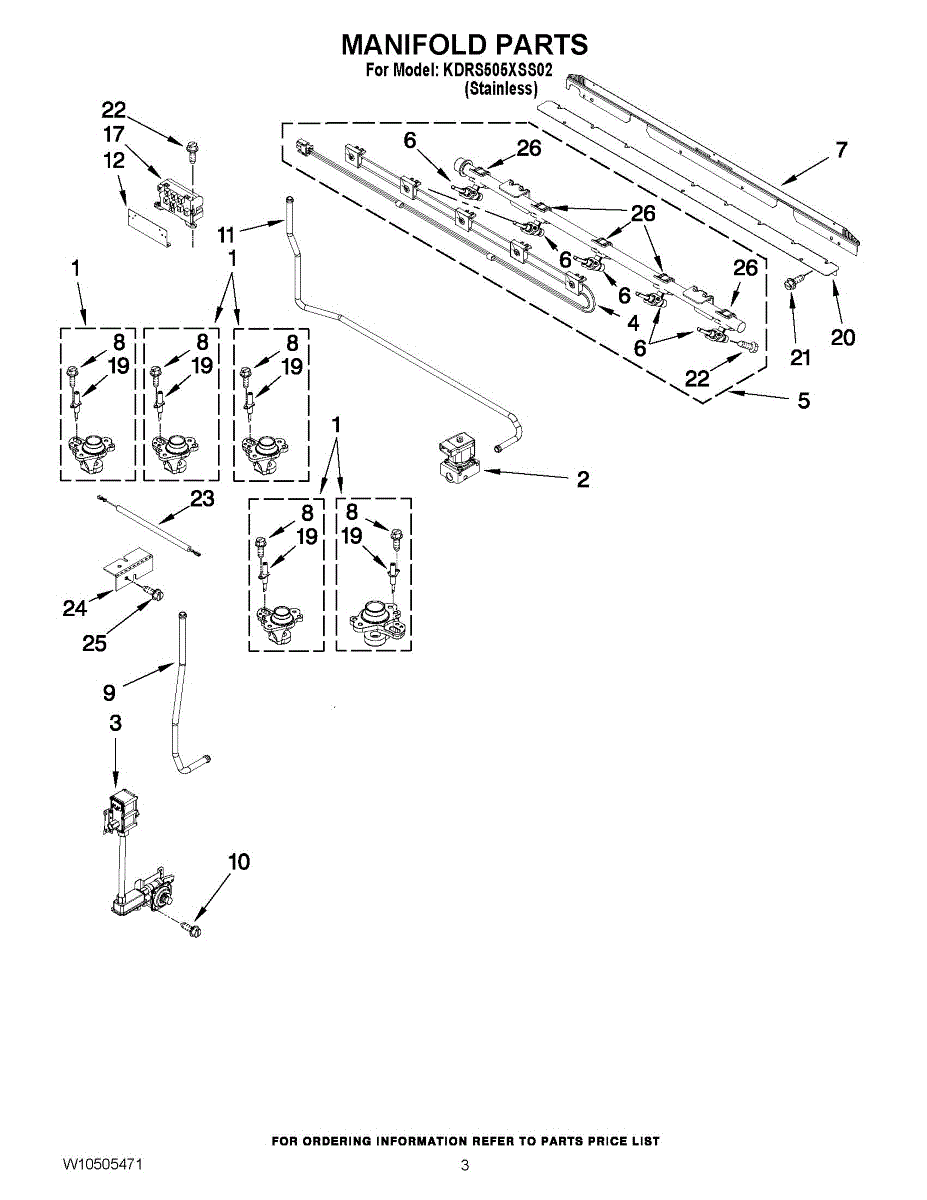

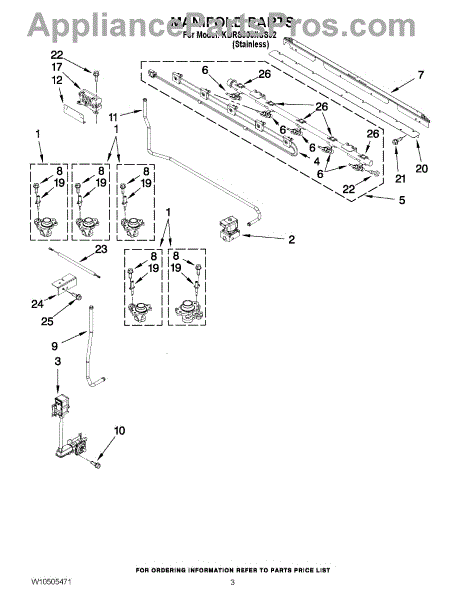

Parts for Kitchenaid KDRS505XSS02: 03 - Manifold Parts

This orifice holder secures the gas orifice to the valve assembly so the burner receives a steady, directed gas flow for reliable ignition and stable flames. It's a small replacement part that restores correct fuel delivery at the burner. What it does:

• Holds the burner orifice in place and aligns it with the gas valve
• Directs gas flow from the valve into the burner tube for proper combustion
• Common symptom: burner won't light or lights weakly
• Common symptom: uneven or unstable flame at a burner

• Turn off the gas supply and unplug the appliance before servicing
• Use basic hand tools; note orientation so the orifice seats correctly
• After installation, check for proper ignition and inspect for gas leaks

This orifice holder secures the right-rear gas burner orifice on ranges and cooktops, keeping the orifice correctly positioned for reliable ignition and consistent flame. It helps restore proper burner operation after a damaged or worn holder. What it does

• Centers and holds the burner orifice in the correct position for steady gas flow
• Supports consistent ignition and even flame on the right-rear burner
• Replaces a cracked, bent or otherwise damaged orifice holder
• Helps correct weak or irregular flame and intermittent lighting at the right-rear burner

• Turn off the gas supply and disconnect power before servicing the range
• Remove burner components carefully; keep track of small parts and screws
• Align the orifice and holder exactly before tightening; avoid overtightening

ORIFICE,HOLDER RF 10K GE

ORIFICE,HOLDER LF 16K GE

This is the wiring harness that links key components such as the water inlet valve and switches. Replacing a damaged harness restores proper electrical connections so the appliance fills and runs reliably without intermittent power losses.

• Carries power and signals between the valve and related switches
• Helps resolve issues like no fill, intermittent operation, or cycling failures
• Corrects symptoms from burned, brittle, or broken wires/connectors
• Restores safe, stable connections after heat or vibration damage

• Disconnect power and shut off water supply before servicing
• Take photos of existing connections to ensure correct routing
• Inspect mating terminals for heat damage or corrosion before reassembly
• Do not force connectors; seat fully until they click or fit snugly

This manifold assembly routes the appliance's gas supply to the burner control valves, restoring safe, consistent distribution when the original tube is cracked, corroded, or leaking. It helps ensure even flame performance across multiple burners. What it does:

• Distributes gas from the inlet to multiple burner valves
• Provides mounting/connection points for valves and tubing
• Replaces assemblies that are bent, cracked, or leaking
• Common symptoms: multiple burners with weak/no flame, gas odor near the manifold, visible corrosion or damage

• 1 manifold assembly

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Photograph tubing and valve orientation to aid reassembly
• Support fittings with two wrenches; use only manufacturer-approved thread sealant where specified
• After installation, restore gas and leak-test all joints with an approved bubble solution before use

This surface burner valve regulates gas flow to a single top burner on your range or cooktop. Replacing a worn valve restores smooth flame control and reliable shutoff for consistent, safe cooking performance.

• Controls gas delivery from the manifold to one surface burner
• Opens/closes with the control knob to ignite and adjust flame height
• Works with the burner's igniter to light and maintain the flame
• Common symptoms: burner won't light, low or uneven flame, flame won't adjust, or a knob that's stiff or spins without control
• Each valve serves one burner position

• Disconnect power, shut off gas supply, and allow the appliance to cool before service
• Note tubing orientation; support the manifold when loosening or tightening fittings
• Use gas-rated thread sealant only if originally used; tighten and check all joints with an approved leak-detection solution
• Restore gas/power and verify proper ignition and flame adjustment on all burners

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Valve is an OEM part for Whirlpool gas ranges. It plays an important safety role in controlling the flow of gas fuel to the range's burners.

Causes of a bad gas valve can include wear and tear over extended use, mineral deposits clogging the valve's small passages, or physical damage affecting its precision-controlled mechanisms.

Symptoms of a faulty gas valve include:

• Burners that will not light or that light unpredictably
• Inability to adjust burner flames properly
• Gas odors detecting around the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This surface ignitor lights a gas burner by creating the spark needed to ignite the gas, restoring reliable ignition and consistent burner operation. Designed as a direct replacement part for compatible gas ranges. What it does:

• Generates the spark to ignite a surface gas burner so cooktop burners light reliably
• Replaces a cracked, damaged, or non-sparking electrode that prevents ignition
• Helps eliminate clicking without flame when the ignitor is functioning correctly
• Works with the range's control and valve assembly to start the burner safely

• One surface ignitor (single)

• Turn off power and gas supply to the appliance before servicing to avoid shock or gas leaks
• Handle the ceramic tip and electrode carefully; damage can prevent proper sparking
• Use factory diagrams or service manual for correct location and wiring; do not force parts

This surface burner spark electrode creates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode helps restore quick, reliable ignition and can reduce excessive clicking at the affected burner. What it does:

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure fast, consistent ignition for the specific burner
• Common symptoms can include no spark/no light at one burner, weak or intermittent sparking, or continuous clicking from a damaged/contaminated insulator
• For the surface burner ignition circuit

• 1 spark electrode

• Disconnect power and shut off gas before servicing; allow the cooktop to cool completely
• Remove burner cap and head to access the electrode; note wire routing and connection
• Transfer/reuse any mounting hardware; avoid stressing or cracking the ceramic insulator
• Align the tip to the burner per service information and ensure all connections are secure before restoring power and gas

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This orifice spud is the small gas jet used in LP conversion kits to regulate propane flow to a burner, helping restore correct flame size and combustion after converting to liquid propane. It's a direct-fit component for affected burners. What it does:

• Replaces the burner jet that meters propane for safe, consistent flame
• Restores proper flame height and prevents oversized or sooting flames after LP conversion
• Helps burners light reliably and maintain even heat
• Works as part of an approved LP conversion to match appliance fuel type

• Turn off gas supply and power before starting any gas appliance service
• Use the correct orifice size and follow the appliance LP conversion instructions or service manual
• Hand-tighten and then torque per manufacturer spec if provided; avoid overtightening
