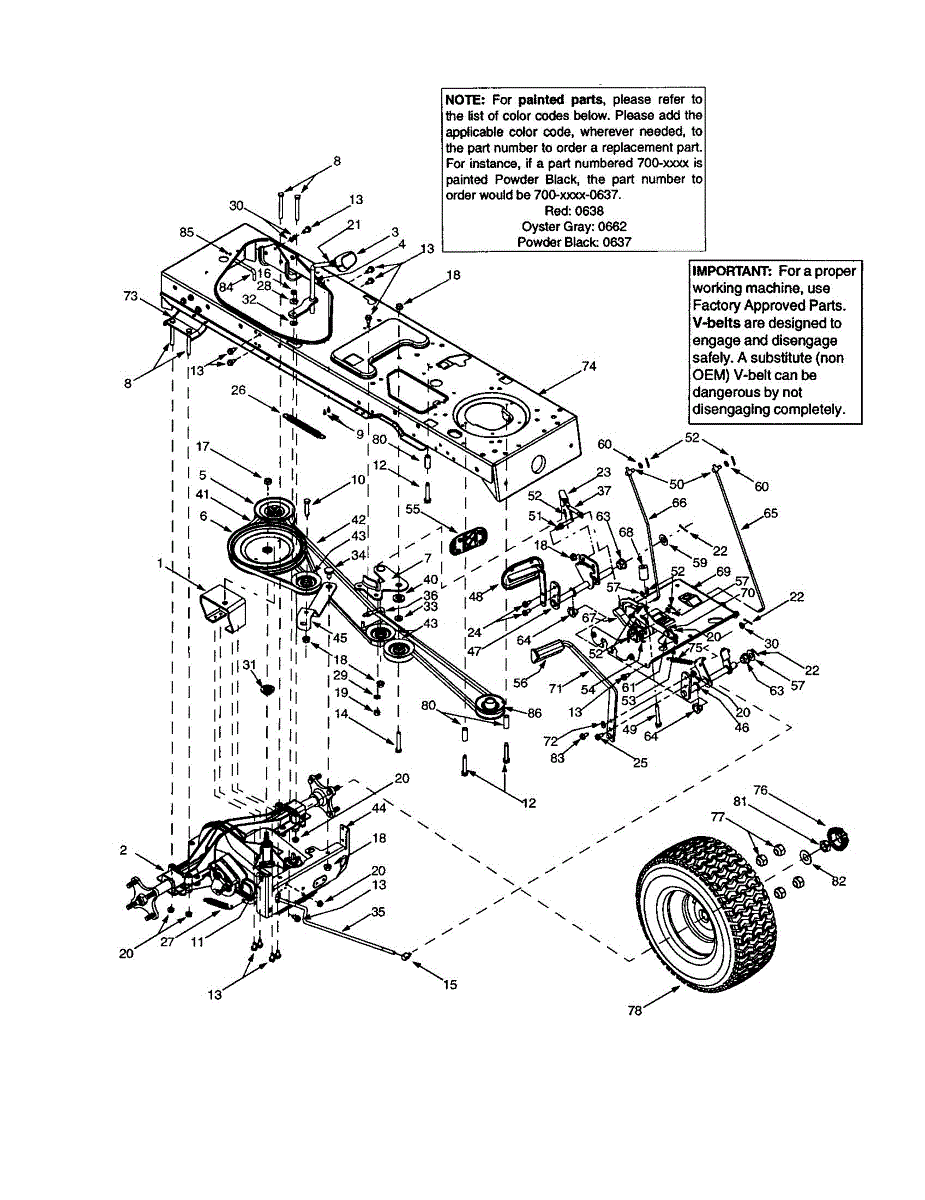

Parts for Troy-Bilt 14AZ809K063: Lower Frame Assembly / Wheel Parts

Connects headlight wiring to enable on/off control. Replace if lights fail, wires are damaged, or connections are corroded. Confirm fit with your model.

Wire harness assembly for lawn tractors. Connects electrical components throughout the tractor. Replace if wires are frayed, corroded, or damaged.

Fix inconsistent tractor speed or loss of drive power with this variable speed pulley assembly. Controls transmission shaft speed for smooth operation.

If your lawn tractor won't move or shifts poorly, a worn transaxle pulley may be the cause. This replacement pulley restores proper drive function.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Hex screw for lawn mowers and garden equipment. Replaces cracked, stripped, or missing hex head bolts. Six-sided head fastens metal or wood components.

Hex cap screw secures components on lawn tractors, tillers, snowblowers, and garden equipment. Replace if broken, stripped, or missing.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

Ball joint assembly for lawn tractor steering systems. Secures tie rod ends and drag links. Replace if cracked, worn, or damaged to restore proper steering.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This extension spring attaches to the axle support bracket and the drive belt idler pulley on many types of lawn and garden equipment. It creates additional tension to the drive belt idler pulley. Sometimes the extension spring can be stretched out or may break, often caused through excess use. If this is the case, the spring will need to be replaced.If the spring is broken or no longer creates the appropriate amount of tension, replacement is required. It is an easy process that only requires a set of pliers. The pliers can be used to take the old spring off of the yard equipment before attaching the new extension spring. Make sure the equipment is on a stable surface and powered off when working with it. Remove the spark plug wire to prevent accidents.This extension spring is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual component. The spring is made to be used with lawnmowers, lawn tractors, and tillers created by MasterCut, Yard-Man, Bolens, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Cub Cadet, and Craftsman.

Extension spring for lawn tractors and riding mowers. Replace if damaged, stretched, or losing tension to restore proper operation. Verify fit with model.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Replacement flat washer for lawn tractors and outdoor power equipment. Install between fasteners to distribute load. Replace if lost, damaged, or worn.

Replacement idler adjustment rod for lawn tractors and garden tractors. Replaces worn, bent, or broken rods. Installs in the drive system to control belt tension.

Fully-threaded hex tap screw for lawn tractors and outdoor power equipment. Fastens machine components together. Replace if damaged, stripped, or missing.

Shoulder spacer for lawn tractors and riding mowers. Maintains proper spacing between components during assembly. Replace if missing, damaged, or worn.

Drive belt for lawn tractor transmission systems. Replace if you notice slipping, squealing, or loss of power. Verify fit with your model number.

Variable speed drive belt connects engine to transmission for lawn tractors and riding mowers. Replace if stretched, damaged, or broken. Verify fit with your model.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

Service kit for lawn tractors and walk-behind mowers. Includes essential parts for routine maintenance. Replace worn or missing components during service.

Compression spring for lawn tractors and snow blowers. Replaces worn, broken, or missing springs in various mechanical assemblies. Restores proper tension.

Replacement extension spring for lawn tractors and mowers. Installs internally to create tension for proper operation. Needed when original is broken, stretched, or missing.

Replacement pedal pad for lawn tractor auto-drive system. Installs on foot pedal control. Needed when original pad is cracked, worn, or missing.

Foot pad for lawn tractors and riding mowers. Replaces worn, cracked, or missing foot pads on the operator platform for comfort and safety.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

Flat washer flange for lawn mowers, snow throwers, tillers, and edgers. Replace when washer is missing, damaged, or worn to ensure proper assembly.

Hex flange bearing supports rotating shafts in riding mowers and tractors. Replace when you notice grinding noise or rough rotation. Verify fit with your model.

Flange bearing for lawn tractors and riding mowers. Replace if wheels wobble, make noise, or don't spin freely. Verify fit with your model number.

Metal support bracket for lawn tractors and mowers. Bolsters and stabilizes internal components. Replace if cracked, broken, or missing. Sold individually.

Extension spring for lawn tractors and riding mowers. Replace if stretched, broken, or causing poor engagement. Verify fit with your model number.

Replacement wheel hub cap for lawn tractors and riding mowers. Covers and protects the wheel hub assembly. Replace if cracked, broken, or missing.

This lug nut secures the wheel to your lawn tractor or riding mower. Replace if cracked, stripped, or missing to ensure proper wheel mounting.

Tubeless air valve for lawn tractor and mower tires. Replace when cracked, leaking, or damaged during tire changes. Installs in wheel rim for proper inflation.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Flat washer for lawn tractors and riding mowers. Replace when worn, damaged, or during maintenance to ensure proper fastener tension and fit.

Fastening screw for lawn tractors and mowers. Secures components together. Replace if stripped, missing, or damaged during maintenance or repairs.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.
