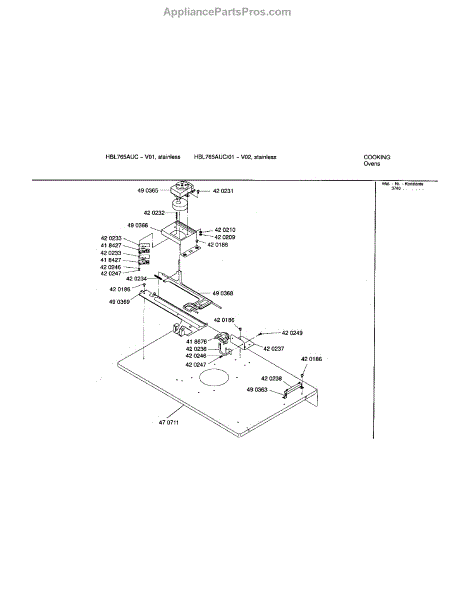

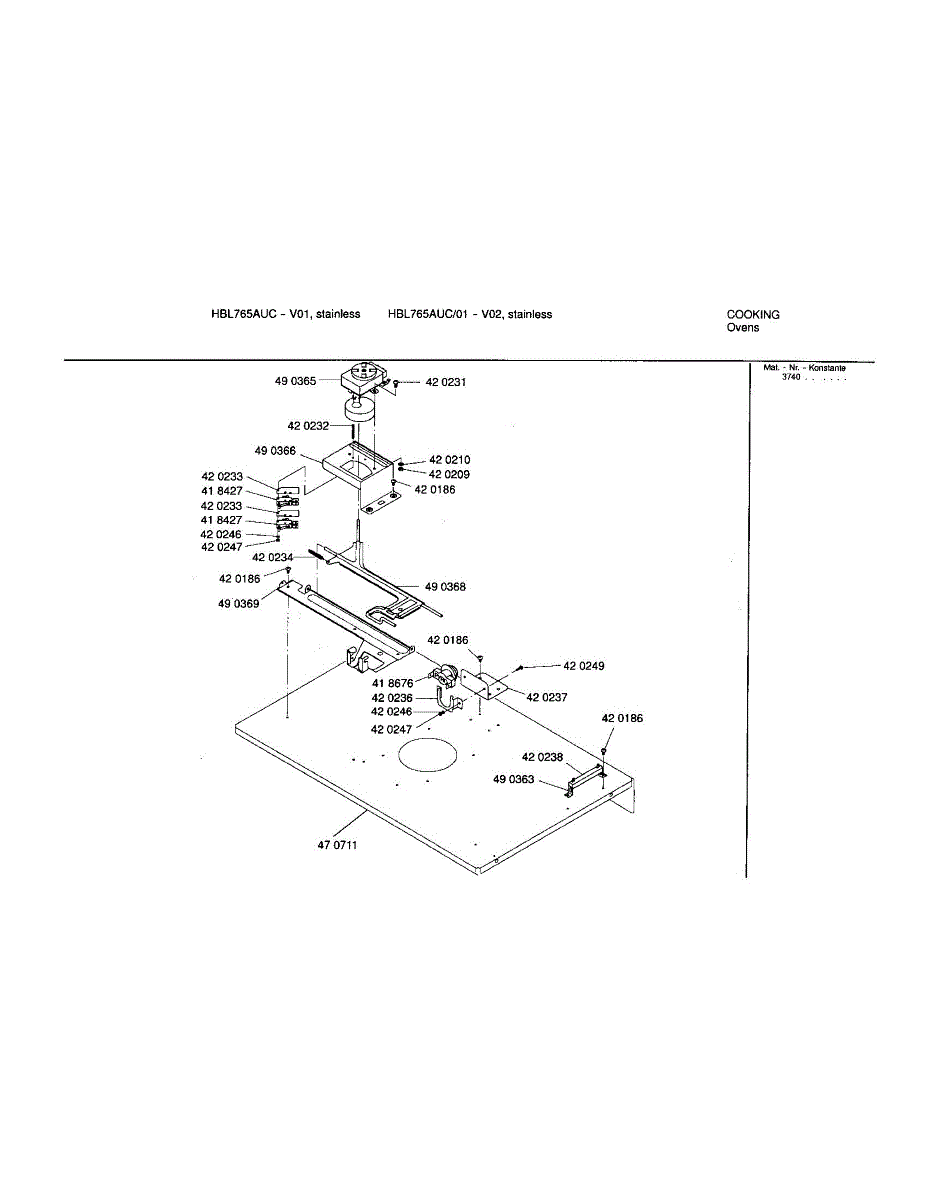

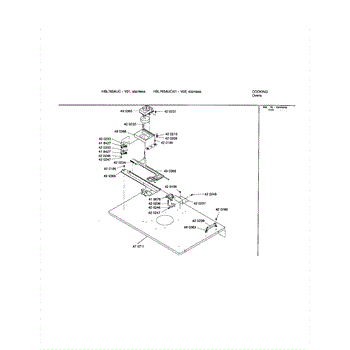

Parts for Bosch HBL765AUC: Lower Internal Panel Parts

Installation instructions manual for HBL and HBN series wall ovens. Replace lost or damaged paperwork for proper oven mounting and setup guidance.

Replacement use and care manual for wall ovens. Provides operating instructions, maintenance guidelines, and safety information for your oven.

311 degrees fahrenheit.

M4.2 x 9.5mm mounting screw for wall ovens. Secures interior panels, brackets, and components. Replace if stripped, missing, or damaged during repairs.

M5 x 10mm mounting screw for wall ovens. Secures internal components and panels. Replace if stripped, missing, or corroded during repairs.

Heat shield for wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.

A replacement mounting bracket that secures internal components or panels so parts stay aligned and stable during normal use. Restores proper fit and reduces movement that can cause rubbing or noise. What it does:

• Supports and holds a panel, assembly, or component in the correct position
• Prevents shifting that can lead to rattling, misalignment, or premature wear
• Provides a fixed attachment point for fasteners or clips
• Helps maintain proper gap and alignment for doors or covers

• Disconnect power and water before starting repairs
• Inspect surrounding fasteners and clips; replace any that are damaged
• Use basic hand tools; follow OEM diagram for orientation and screw locations

M3 x 12mm mounting screw for wall ovens. Secures internal panels, components, and trim. Replace if missing, stripped, or damaged during repairs.

Replacement resistor support plate for electric wall ovens. Secures heating element resistor in place. Order a new one if original is cracked or broken.
