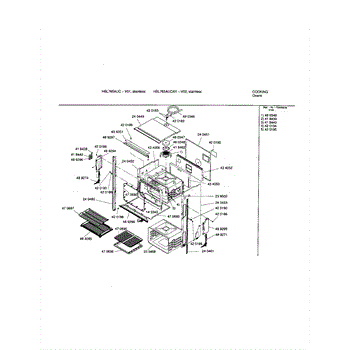

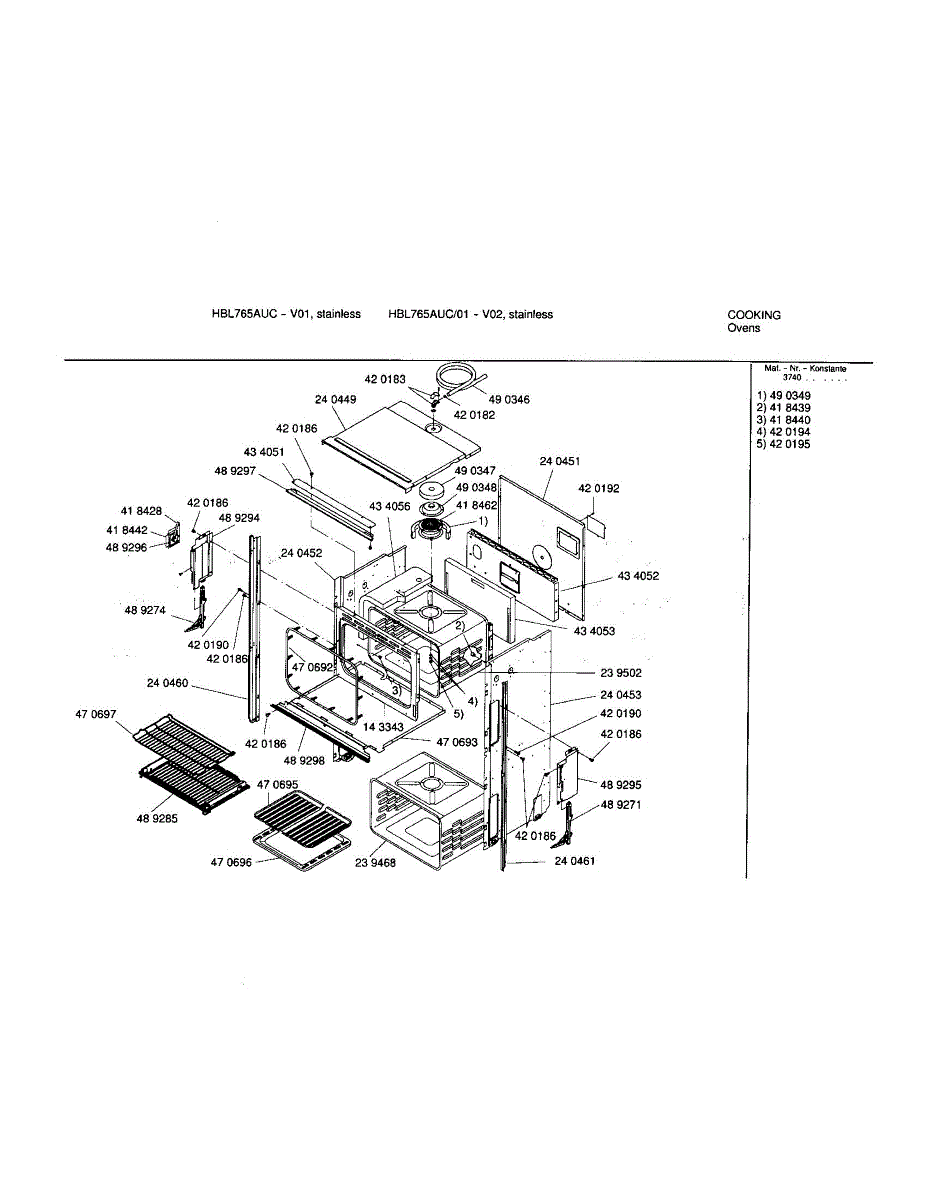

Parts for Bosch HBL765AUC: Upper Body Parts

Installation instructions manual for HBL and HBN series wall ovens. Replace lost or damaged paperwork for proper oven mounting and setup guidance.

Replacement use and care manual for wall ovens. Provides operating instructions, maintenance guidelines, and safety information for your oven.

This genuine right rail support secures the dishwasher rack slide and keeps the lower rack aligned for smooth movement and stable loading. It replaces a missing or damaged support to restore proper rack tracking and reduce wobble. What it does:

• Supports the right side rack rail so the lower rack slides straight and evenly
• Prevents rack misalignment, catching, or wobbling during insertion and removal
• Replaces cracked, broken, or missing plastic support pieces that let the rack sag
• Works with the existing rail and rollers to restore normal rack motion

• One right rail support (black), as shown

• Disconnect power to the appliance before starting any repair
• Remove the lower rack to access the rail support; common hand tools may be required
• Inspect rails and rollers for damage and replace any worn components for best results
• Handle plastic parts carefully to avoid cracking during installation

Fix an oven door that won't latch or close properly with this microswitch hinge support. Restores proper door alignment and switch activation.

M4.2 x 9.5mm mounting screw for wall ovens. Secures interior panels, brackets, and components. Replace if stripped, missing, or damaged during repairs.

M4.2 x 13.5mm mounting screw for wall ovens. Replaces lost, stripped, or damaged screws that secure panels and components during installation or repair.

Insulation pad for electric wall ovens. Installs between the oven cavity and outer panel for heat retention. Replace if worn, torn, or missing.

Split broiler pan for wall ovens. Installs in broiler compartment. Replace if cracked, warped, or heavily stained to restore cooking performance.

This is the left hand hinge kit. This kit now includes the hinge, hinge housing, microswitch assembly, wire harness and instructions. For the right hand side order 00493360.
