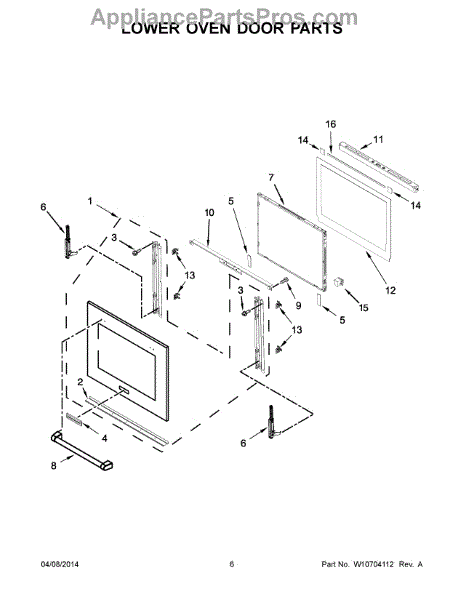

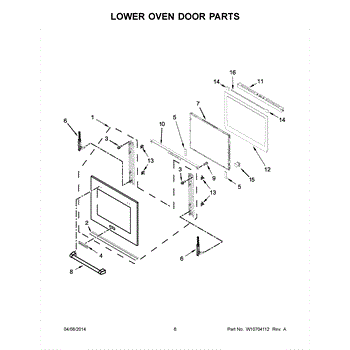

Parts for Kitchenaid KEBS209BSP01: 04 - Lower Oven Door Parts

Parts for Kitchenaid KEBS209BSP01: 04 - Lower Oven Door Parts

Location on Diagram
Part Description
Price & Availability
2
Product photo
By: Whirlpool
Part Number: W10479068

This metal support bracket mounts to the bottom of the oven door, helping to keep the door properly aligned and structurally supported. It reinforces the lower edge of the door assembly and prevents sagging or uneven closure. Replace this bracket if your oven door feels loose at the bottom, hangs unevenly, or no longer closes flush against the oven frame.

More
$14.55

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Product photo
By: Whirlpool
Part Number: WP3196183

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

  • Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
  • Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
  • Replace if the original screw is missing, stripped, rusted, or damaged
  • Using the correct hardware helps restore a secure, factory-tight fit
What's included: 1 screw Install notes:
  • Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
  • Note screw locations/lengths and replace like-for-like
  • Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
  • If the receiving threads are damaged, repair or replace the mating component before installing

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
By: Whirlpool
Part Number: WPW10320959
$51.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10840861

Maintains oven door structure and secures the glass panels in place. Replace if cracked, broken, or missing to restore proper door assembly and fit.

More
$6.75

IN STOCK
Ships Today Guaranteed
Add to Cart
6
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10825778

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

  • Supports door weight and provides the pivot point for opening and closing
  • Maintains proper door alignment to help ensure an even gasket seal
  • Restores smooth, consistent door movement
  • Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush
What's included
  • Includes 1 door hinge
Install notes
  • Disconnect power before servicing
  • Support the door and use a helper; remove contents as needed to reduce weight
  • Mark hinge position and transfer any spacers/bushings in the same order
  • Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

More
$56.34

IN STOCK
Ships Today Guaranteed
Add to Cart
7
Product photo
By: Whirlpool
Part Number: WPW10347598

Replaces cracked, broken, or clouded sealed glass unit in your oven door. Restores clear visibility and proper insulation. Essential for damaged windows.

More
$193.95

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Product photo
By: Whirlpool
Part Number: W10246102A

Replace your cracked, broken, or missing oven door handle. This exterior handle mounts to the front of the door for safe opening and closing.

More
$116.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9
Best Seller
Product photo
4.9 (12)
By: Whirlpool
Part Number: WPY706189

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: WPW10459351

This is a metal bracket used to secure the oven door glass panel in place. It holds the inner or outer glass firmly within the door assembly to maintain proper insulation and visibility. Replace this bracket if the oven door glass is loose, rattling, or if the bracket is bent or broken.

More
$59.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
11
By: Whirlpool
Part Number: WPW10416257

This is a trim piece that covers the vent opening on the oven door, providing a finished appearance while allowing hot air to escape during cooking. It snaps or screws into place along the door's vent area. Replace this trim if it is cracked, warped, discolored, or missing, which can affect both the look and proper ventilation of your oven.

More
$87.07

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
Best Seller
Product photo
5.0 (29)
By: Whirlpool
Part Number: WPW10335920

Replacement inner door glass for your oven. Installs inside the door frame for viewing food while cooking. Order if cracked, shattered, or broken.

More
$263.95

IN STOCK
Ships Today Guaranteed
Add to Cart
13
By: Whirlpool
Part Number: WPW10549747

Cushions contact points inside your oven to prevent metal-to-metal impact. Replace if cracked, worn, or missing to reduce noise and protect finishes.

More
$13.95

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10517428

Positions and supports exhaust components at the top outlet for proper duct alignment and seal. Replace if damaged or missing to prevent air leaks and vibration.

More
$7.73

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: WPW10581826

Secures your oven door to the cabinet hinge for smooth opening and closing. Replace if cracked, broken, or missing to restore proper door alignment.

More
$45.42

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
Product photo
By: Whirlpool
Part Number: WPW10581831

This door plastic bracket secures the appliance door to the cabinet, keeping the door aligned and stable so it closes properly and seals. A simple replacement for worn, cracked, or broken door support hardware. What it does

  • Holds the door in the correct position and connects the door assembly to the cabinet.
  • Restores proper door alignment to reduce gaps, scraping, or uneven closing.
  • Stops rattling or rocking caused by a cracked or broken bracket.
  • Helps the door latch and seal correctly so the appliance can operate safely.
What's included
  • One door plastic bracket (LW) as shown.
Install notes
  • Disconnect power (and water if applicable) before starting any repair.
  • Access may require removing the door or inner door panel; keep track of fasteners.
  • Inspect surrounding screws, clips, and the mating surface; replace any damaged fasteners.

More
$22.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
By: Whirlpool
Part Number: W11082539

Seals your oven's exhaust vent to prevent air leaks and maintain proper airflow. Replace if you notice drafts or heat escaping. Confirm fit with model.

More
$63.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
