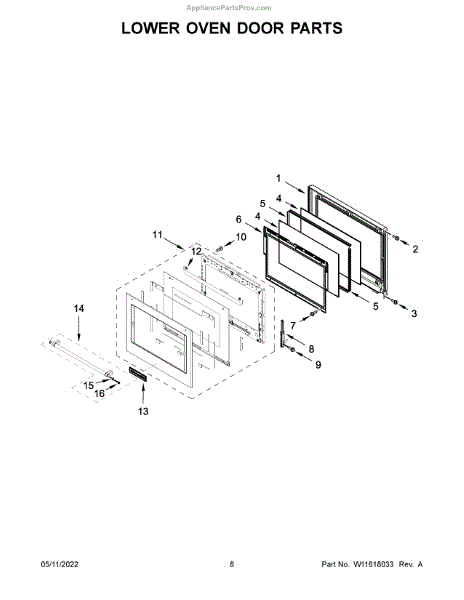

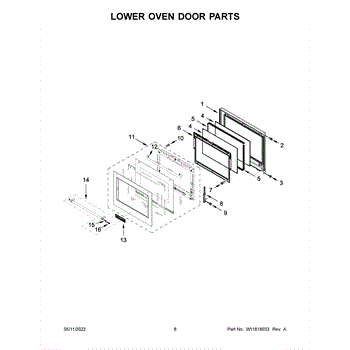

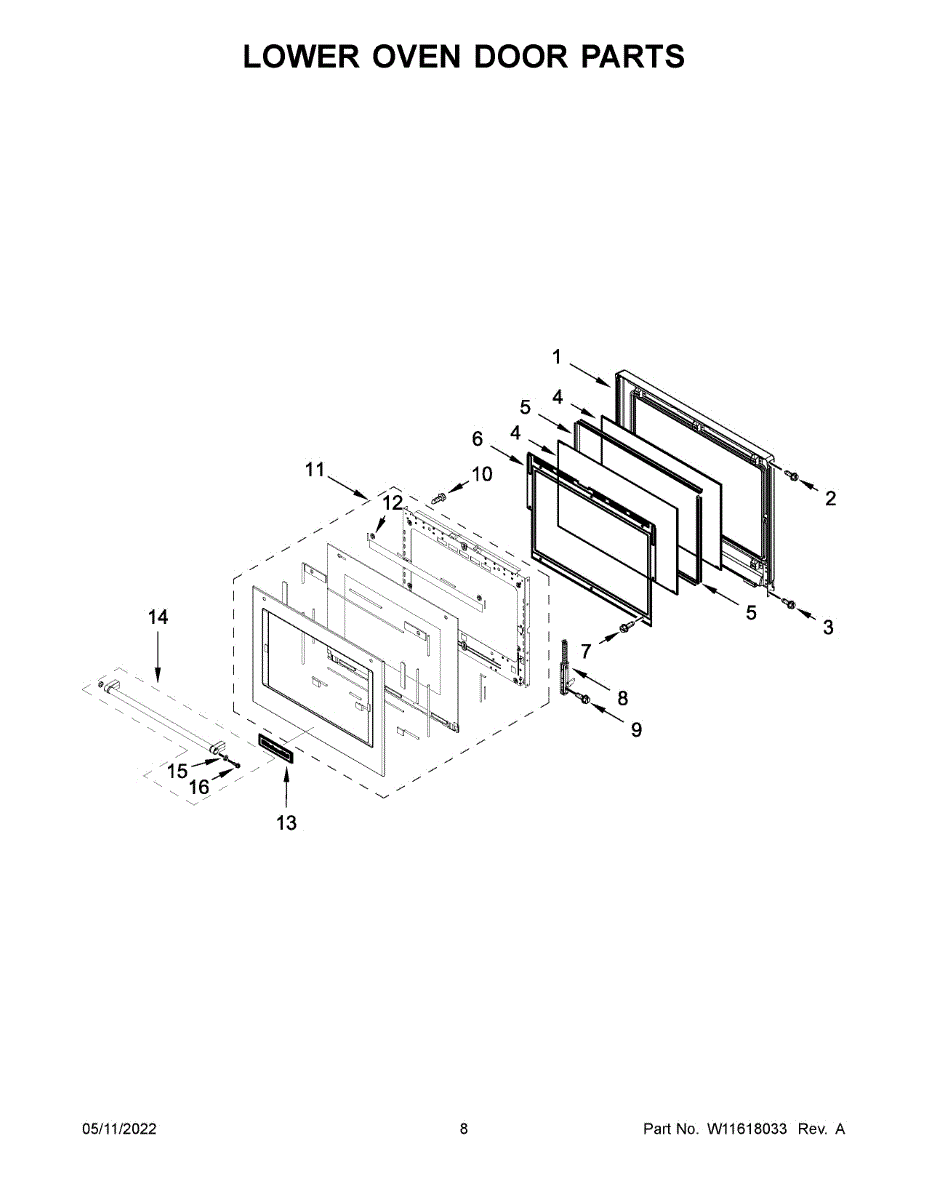

Parts for Kitchenaid KODE507EBS20: Lower Oven Door Parts

Size: 8abx3/8 - blk)

Restore a safe, efficient oven door with this inner glass panel. It replaces the heat-resistant liner on the inside of the door, helping retain heat and keep the viewing window clear during cooking. What it does:

• Forms the inner layer of the oven door window and helps insulate the oven cavity
• Maintains a clear interior-facing surface for viewing food
• A damaged panel can cause heat loss, temperature fluctuations, or poor visibility through the door window
• Replace if the glass is cracked, shattered, chipped, or permanently hazy/etched

• 1 inner oven door glass panel

• Disconnect power at the breaker and allow the oven to cool completely before service
• Wear cut-resistant gloves and eye protection; glass edges can be sharp
• Remove the door and place it face down on a protected surface; follow model-specific steps to access the inner pane
• Transfer any retainers/brackets as needed and tighten hardware evenly without overtightening

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations
