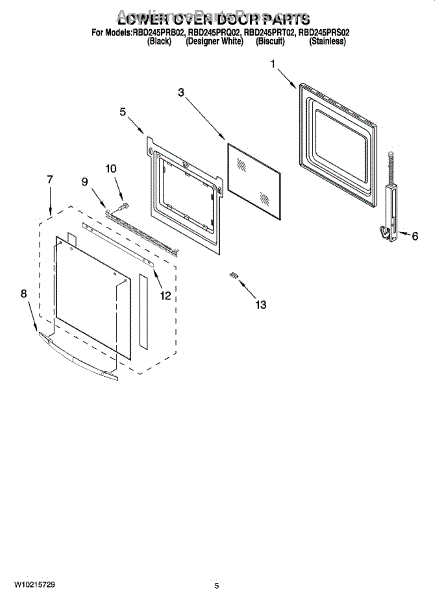

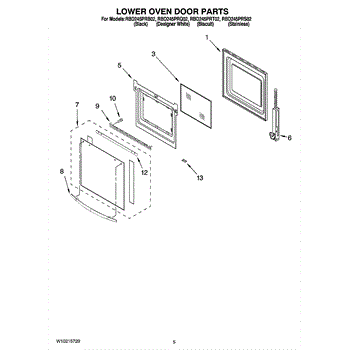

Parts for Whirlpool RBD245PRB02: 03 - Lower Oven Door Parts

This 24-inch door liner panel restores the interior surface of a single oven door, protecting internal insulation and providing a finished look. It replaces a cracked, dented or heat-damaged liner so the door seals and operates correctly. What it does

• Replaces the oven's interior door surface to protect insulation and inner components.
• Restores a smooth, secure surface that helps the door close evenly and maintain heat containment.
• Helps eliminate rattles, light leaks, or visible damage from a compromised liner.
• Matches factory fit and attachment points for a straightforward replacement.

• One 24-inch oven door liner panel

• Turn off power to the appliance before beginning any repair and allow the oven to cool fully.
• Remove the oven door per the manufacturer's instructions to access and replace the liner; retain all screws and mounting hardware.
• Handle edges carefully and support the liner to avoid bending or damage during installation.

The Inner Glass is an OEM replacement part for Whirlpool built-in and slide-in electric ranges. As an interior part, this tempered glass serves as the viewing window for the oven cavity below. It is precision cut by Whirlpool to fit seamlessly within the oven door frame assembly.

Causes of broken inner glass can include impact from heavy pots or pans dropped inside during loading/unloading. Thermal stresses from repeated heating cycles may develop fine hairline cracks as well.

Symptoms of a cracked inner glass involve:

• Visible lines or damaged areas that obstruct full viewing
• Potential safety hazards if glass fully separates from the doorframe
• Inability to efficiently view food inside without opening the door

Compatible with some KitchenAid and Jenn-Air built-in electric ranges too, replacing now prevents further door damage from glass shifting out of position over time.

This right-side oven door hinge (gray) secures and guides the door as it opens and closes, restoring proper door alignment and smooth pivoting for safer operation. Ideal when the door feels loose, sags, or does not latch correctly. What it does:

• Supports the oven door and provides the pivot point for opening and closing
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door latch and seal correctly for safe operation
• Reduces scraping or catching when moving the door

• One right-side (gray) oven door hinge

• Disconnect power to the appliance before starting any repair
• Support or remove the oven door to access the hinge
• Handle hinge and door edges carefully; use gloves and eye protection
• Follow OEM service instructions for reassembly and torque/fastening details

This left-side door hinge secures and guides the appliance door for smooth opening and closing while keeping proper alignment. Designed to restore stable door movement and reduce sagging or misalignment on compatible models. What it does:

• Replaces a worn or damaged left door hinge to restore proper door alignment and movement
• Helps prevent door sag, rubbing, or uneven gaps that can affect operation or seal
• Provides a durable pivot point for consistent opening and closing action
• Matches the original gray finish for proper fit and aesthetics

• One left-side door hinge (gray)

• Verify power is off and appliance is stable before starting any work
• Remove door or support it per your model's service instructions to avoid injury or damage
• Use appropriate tools and keep fasteners organized for reassembly

Color: Stainless

Color: Bisque

Color: White

Color: Black

Color: Black

Color: White.
