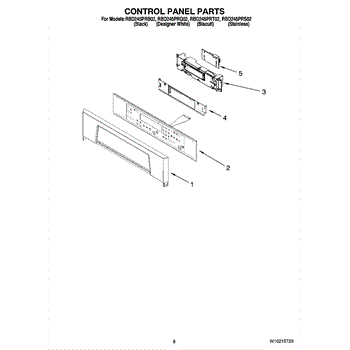

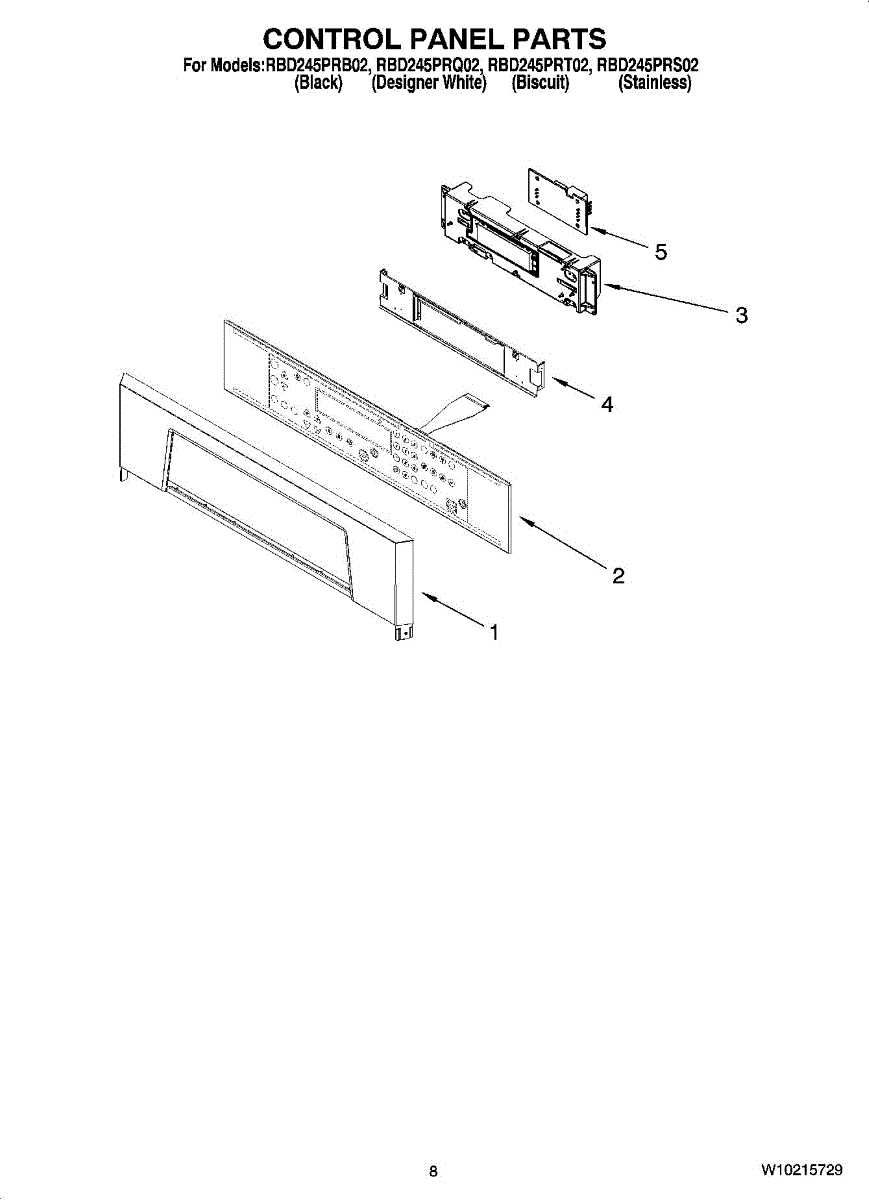

Parts for Whirlpool RBD245PRB02: 06 - Control Panel Parts

Fix unresponsive buttons or a damaged control surface with this white oven control panel assembly. Restores full touchpad functionality and appearance.

Black control panel assembly for your oven. Houses touch buttons and display window on the front surface. Replaces a worn, cracked, or damaged panel.

White touch pad for oven control panels. Replaces cracked, worn, or unresponsive membrane switch pads. Installs on the control interface panel.

Control panel touch pad for electric ovens. Mounts on the front control panel. Replace if cracked, split, unresponsive, or the protective seal is worn.

Fix blank or unresponsive oven display with this control board and touch pad. Solves no display, dead touchscreen, and clock visibility issues.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

Install notes:

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
