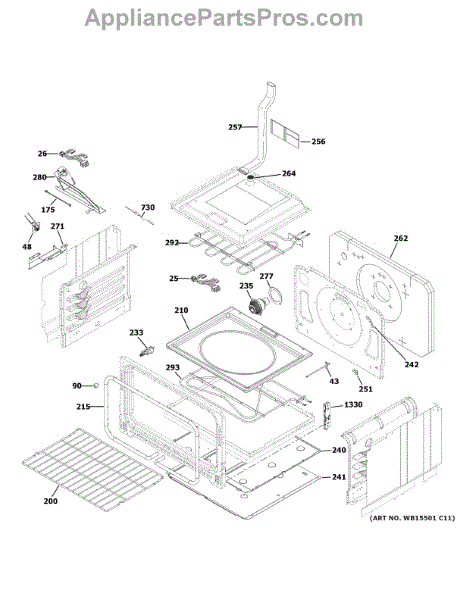

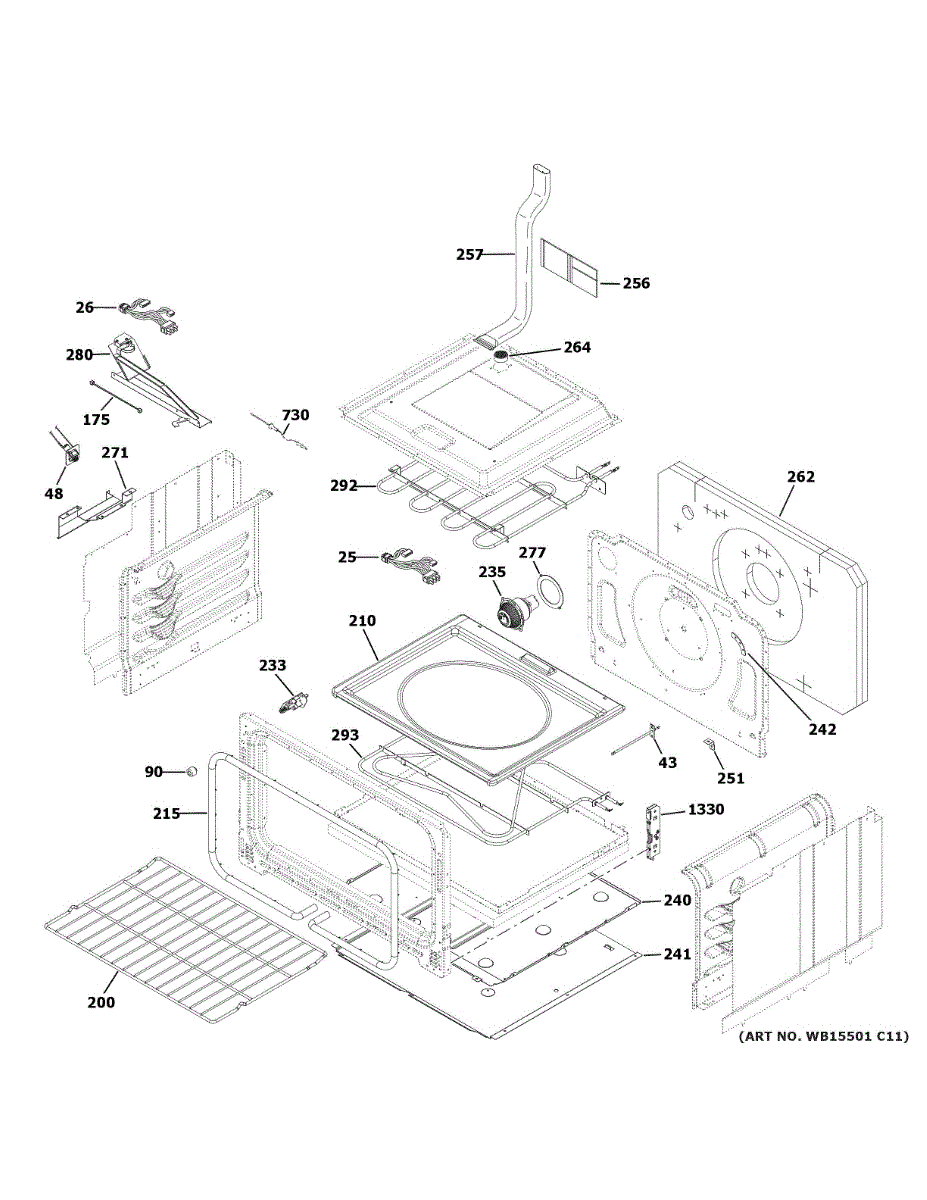

Parts for Ge CHS950P3M8D1: Lower Oven Parts

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Fix intermittent power loss or poor electrical connections in your range. This receptacle assembly replaces worn terminal sockets to restore reliable power.

Replacement front frame bumper that cushions and supports your range's door trim. Prevents metal-on-metal contact and reduces vibration. Needed when original is cracked, broken, or missing.

Fixes electrical shocks or arcing from your range. This grounding harness restores the safe earth ground connection between chassis and outlet. Easy install.

Flat wire shelf that slides into your oven's side supports to hold bakeware at the correct height. Replace if bent, warped, or missing a rack position.

Bottom oven panel for electric ranges. Replaces cracked, damaged, or worn panels on the lower oven exterior. Restores the finished appearance of your range.

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.

Metal angle support bracket that secures interior panels, shelves, or trim inside your range. Replace if cracked, bent, or missing to maintain proper alignment.

Fix excessive heat around your oven cabinet with this rear insulation panel. Replaces damaged insulation to restore proper heat retention and protect components.

Seals between the oven light lens and liner to keep grease and moisture out. Replace if damaged, cracked, or no longer sealing properly.

The Latch Automatic is an OEM component specifically designed for GE ranges. It is responsible for automatically latching and locking the oven door securely in the closed position.

Symptoms of a bad automatic latch include:

• The door not latching or locking fully when closed
• Difficulty keeping the door securely shut
• Inability to automatically engage the latch

Causes of a bad automatic latch can include wear and tear from extended use over time, broken or loose gears and springs, or damage that impairs the proper functioning of the latching mechanism.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Oven not heating evenly or bottom not baking properly? This hidden bake element restores consistent bottom heat. Moderate DIY repair in 30-45 minutes.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A receiver hinge that secures and supports an oven door hinge pin to keep the door aligned and operating smoothly. Replaces a worn or broken receiver to restore proper door fit and movement. What it does

• Accepts and retains the oven door hinge pin so the door opens and closes correctly.
• Supports door weight to prevent sagging or uneven alignment.
• Helps the door latch and seal properly for safe, consistent operation.
• Commonly replaced when the door drops, rubs, or will not stay closed.

• One receiver hinge

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the oven door or access panel per the service manual for safer installation.
• Use basic hand tools; check hinge pins and mating hardware for wear and replace if needed.
