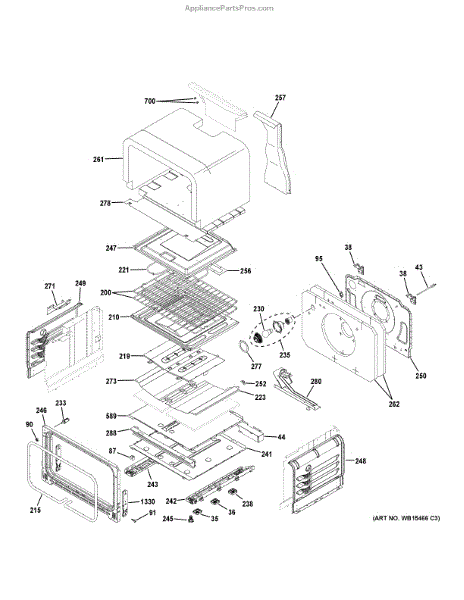

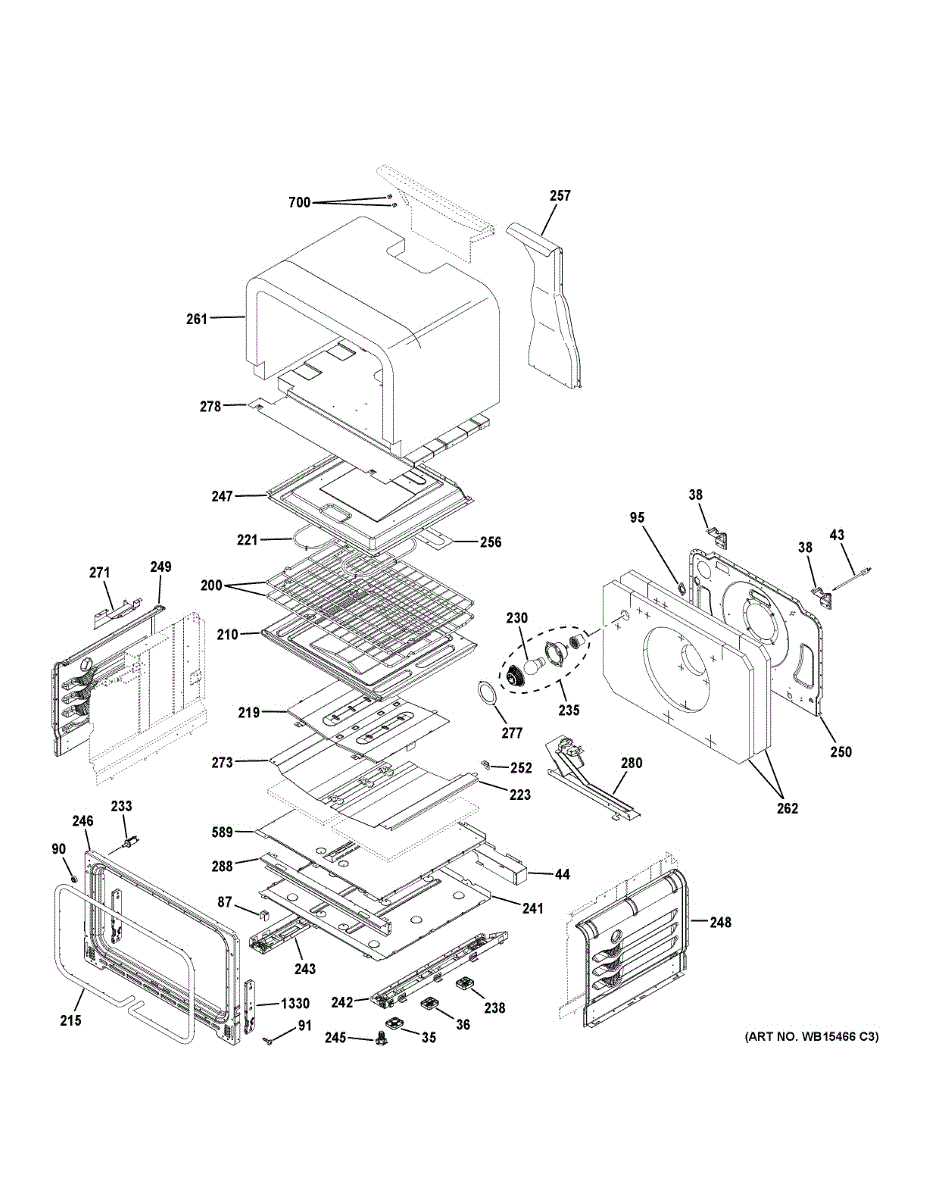

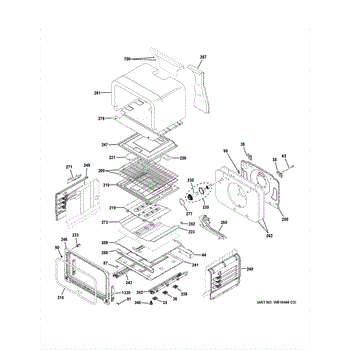

Parts for Ge JGB860EEJ4ES: Lower Oven Parts

Base spacer for gas ranges. Installs at the bottom of the range to provide proper spacing and support. Replace if cracked, broken, or missing.

A small mounting spacer that positions and supports internal components for proper alignment and clearance. Replaces a worn or damaged spacer to help maintain stable assembly fit and reduce interference between parts. What it does:

• Provides spacing between appliances' internal assemblies to ensure correct alignment
• Helps prevent metal-to-metal contact that can cause noise, wear, or improper sealing
• Restores correct fit when an original spacer is cracked, missing, or deformed
• Commonly used during repair of panels, assemblies, or mounting brackets

• Disconnect power (and gas if applicable) before starting any repair
• Handle surrounding panels and components carefully to avoid damage
• Installation may require removal of adjacent trim or brackets and a few fasteners

Fix an oven that won't hold temperature or runs too hot or cold. This temperature sensor monitors and regulates oven cavity heat for accurate baking.

This barrier bottom floor is the inner bottom panel that helps form the refrigerator's lower compartment, keeping components supported and directing moisture away from sensitive areas. Replaces a damaged, cracked, or missing bottom barrier to restore proper fit and protection. What it does:

• Replaces a cracked, broken, or warped bottom floor panel that can let debris or moisture reach components
• Restores the intended lower-compartment barrier that helps direct condensation and defrost water
• Provides a stable mounting surface for lower shelving/crisper assemblies and nearby components
• Helps reduce the chance of visible gaps or misalignment in the refrigerator base

• Disconnect power and empty the lower compartment before beginning work
• May require removal of lower drawers, trim pieces, or screws/clips for access
• Use basic hand tools; keep track of fasteners and any seals or gaskets removed

Replacement bumper cushion that protects the range frame where panels meet. Install when the original is worn, cracked, or missing to reduce vibration.

Replace your worn, bent, or warped oven rack. Provides a stable surface for baking sheets and pans inside your range oven. Fits standard ovens.

Bottom oven panel for gas ranges. Replaces cracked, damaged, or missing panels on the lower oven exterior. Restores the finished appearance of your range.

Seals your range oven door to maintain proper temperature and efficiency. Replace if worn, cracked, or heat escapes. Verify fit with your model number.

Redirects heat away from the rear panel and components in your gas range oven. Replace if warped, damaged, or missing to protect surfaces.

Oven won't broil or brown food evenly? This upper heating element restores proper broiling function. DIY-friendly repair takes about 30 minutes.

Metal deflector shield that directs heat inside the oven cavity. Replace if cracked, bent, or missing to restore proper airflow and heat distribution.

Fixes range oven that won't heat when door is closed. This door plunger switch activates burners and baking modes. Common DIY repair in 30 minutes.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Positions and supports internal components to maintain proper alignment and clearance. Replace if cracked, broken, or missing to restore stability.

Right-side lower support base that secures and stabilizes the range cabinet. Replace if cracked, broken, or worn to restore proper alignment and fit.

Replaces the left lower support base that stabilizes your range's lower assembly. Needed when the original is cracked, broken, or missing.

This frame weld assembly is the welded structural frame that supports and aligns the appliance's front components, helping restore proper fit and stability for panels and doors. Replaces a damaged or bent frame to improve alignment and reduce rattling. What it does:

• Provides structural support for the appliance front, keeping panels and doors aligned
• Restores correct fit when the frame is bent, warped, or damaged
• Reduces vibration, rattling, and visible gaps caused by a compromised frame
• Helps ensure panels and doors operate smoothly and seat properly

• Disconnect power and fuel before starting any repairs
• Removal and replacement may require basic hand tools and panel/trim removal
• Handle with care to avoid damage to painted surfaces and adjacent components

This oven back panel replaces the rear cabinet panel that protects internal components and helps maintain proper oven enclosure. Restores a clean, secure rear surface for safe operation and service access. What it does

• Covers and protects the oven's internal wiring, insulation and components at the back of the range/cooktop
• Restores a sealed rear enclosure to help prevent heat and debris escape
• Replaces warped, rusted or damaged rear panels that make the oven unstable or unsafe to service
• Provides mounting surface for rear-mounted components and service access points

• One oven back panel

• Disconnect power before starting any repair
• Remove oven from cabinet or pull forward as required for safe rear access
• Handle edges carefully—panel metal may be sharp; wear gloves and eye protection
• Mount with original fasteners; secure all screws before restoring power

Metal angle support bracket that secures interior panels, shelves, or trim inside your range. Replace if cracked, bent, or missing to maintain proper alignment.

Insulation wrap that lines the oven cavity to retain heat and improve efficiency. Replace if torn, compressed, or missing to restore proper insulation.

Insulation assembly for gas ranges. Installs around oven cavity to retain heat and improve efficiency. Replace if torn, compressed, or missing.

Uneven oven cooking or hot spots? This rear deflector directs heat away from the back wall for even baking. Simple snap-in installation.

Seals between the oven light lens and liner to keep grease and moisture out. Replace if damaged, cracked, or no longer sealing properly.

Insulation guard that installs under the cooktop surface of your gas range. Replace if cracked, torn, or deteriorated to maintain heat efficiency.

If your oven cooks unevenly or runs too hot, a damaged lower air duct may be blocking proper airflow. This part restores heat distribution beneath the cavity.

Mounting screw for refrigerator doors, shelves, kickplates, and interior components. Replace missing, stripped, or corroded screws during repairs.

A receiver hinge that secures and supports an oven door hinge pin to keep the door aligned and operating smoothly. Replaces a worn or broken receiver to restore proper door fit and movement. What it does

• Accepts and retains the oven door hinge pin so the door opens and closes correctly.
• Supports door weight to prevent sagging or uneven alignment.
• Helps the door latch and seal properly for safe, consistent operation.
• Commonly replaced when the door drops, rubs, or will not stay closed.

• One receiver hinge

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the oven door or access panel per the service manual for safer installation.
• Use basic hand tools; check hinge pins and mating hardware for wear and replace if needed.
