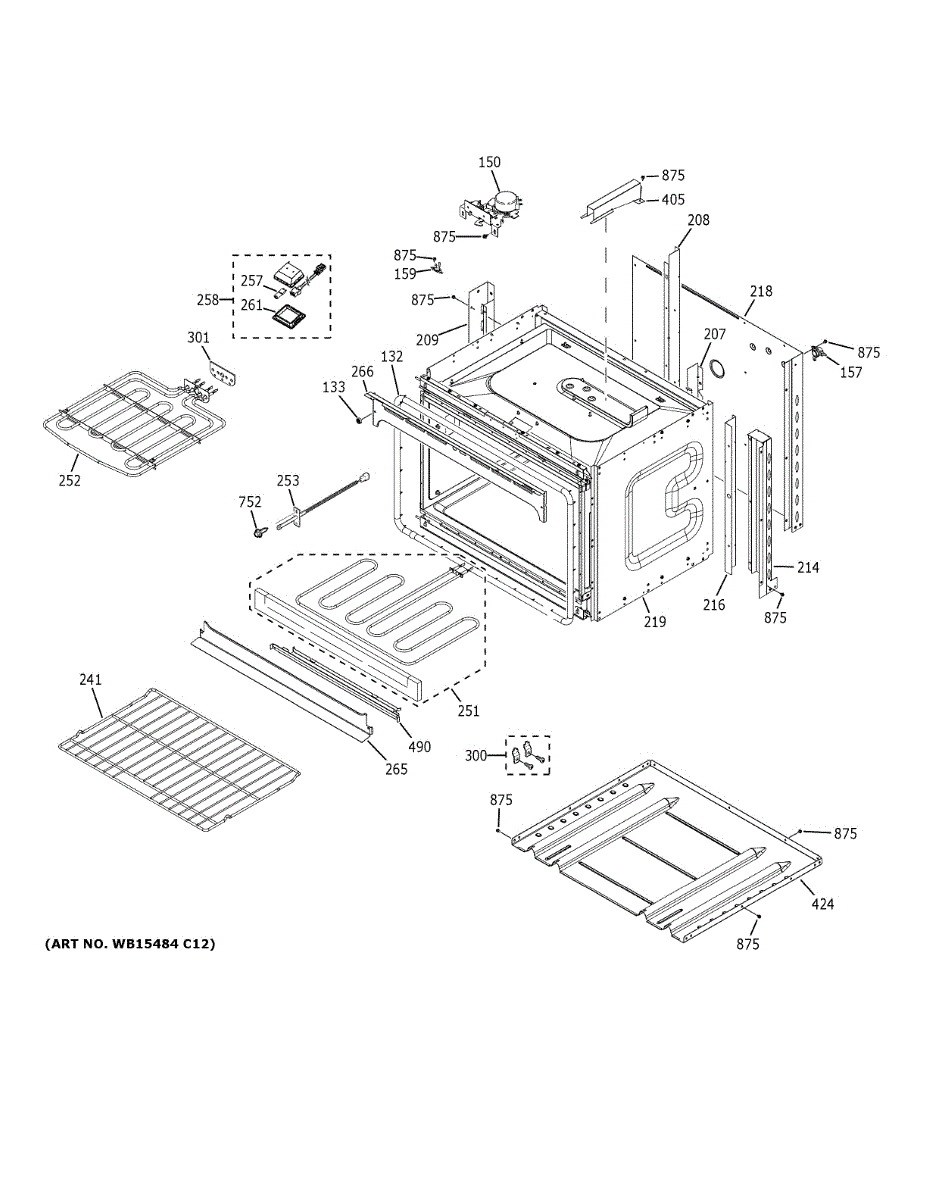

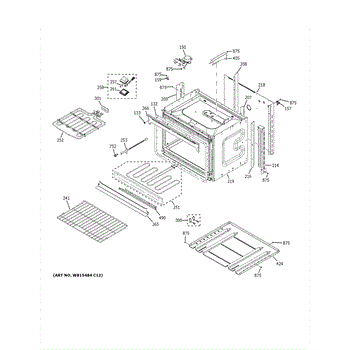

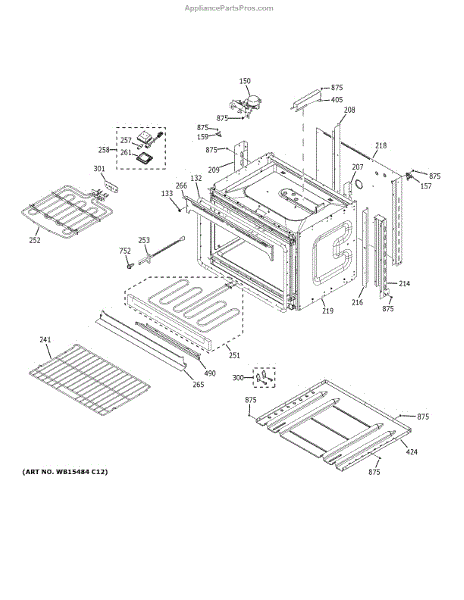

Parts for Ge JKD3000DN2BB: Lower Oven Parts

The Oven Door Gasket is an OEM replacement part for GE electric ranges. As the seal that lines the edges of the oven door, the gasket plays a crucial role in insulating the oven cavity from heat loss.

Causes of a bad gasket can include dry-rot, warping, or compression from repeated door closing over time. Exposure to cleaning chemicals or high-heat cooking accelerates degradation.

Symptoms of a bad oven door gasket include:

• Inefficient or uneven baking/cooking results
• Increased energy costs due to heat escaping
• A loud squeaking or squealing sound when opening/closing the door
• Visible cracks, splits, or fraying along the gasket edges

 This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

Note: This latch assembly also includes the oven light switch and plunger. These parts of the latch assembly are not sold separately.

The Latch Assembly is an OEM replacement part for GE electric ovens. It is responsible for securely locking and unlocking the oven door, ensuring that the door remains securely closed during cooking and self cleaning.

Symptoms of a faulty latch assembly include:

• Oven door not closing or latching properly
• Difficulty in opening or closing the oven door
• Oven door not staying securely locked during cooking

A bad latch assembly can occur due to wear and tear over time, mechanical issues, or damage from accidental mishandling. If you notice issues such as the oven door not closing or latching properly, difficulty in opening or closing the door, or the door not staying securely locked during cooking, it may be time to replace the old or damaged latch assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

This high limit switch is the appliance's over-temperature safety device. It opens the circuit if internal heat rises beyond a safe threshold, helping protect wiring and controls and restore dependable operation once the underlying overheating issue is resolved.

• Monitors temperature and interrupts power when heat exceeds its limit to prevent damage
• Also called a safety thermostat or thermal cut-off
• When tripped or failed, common symptoms include no heat, shutting off during use, or loss of power to the bake/broil circuits
• Overheating events from blocked vents or cooling fan issues can trigger this safety

• Disconnect power at the breaker and allow the unit to cool completely before servicing
• Access location; note wire positions and transfer one lead at a time to the new switch
• Mount firmly and flush to its bracket/surface so it senses temperature correctly; do not bypass this safety
• After replacement, verify airflow and cooling fan operation and run a brief heat test

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

The Oven Rack is an OEM component specifically designed for GE wall ovens and ranges. As an essential cooking accessory, the oven rack provides an elevated surface for baking multiple food items simultaneously. It enables maximized use of available oven space.

Causes of a bad oven rack can include warping or bending from years of heavy cooking loads, broken rack support clips, or scratches and pitting from harsh cleaning chemicals.

Symptoms of a bad oven rack include:

• Uneven baking/cooking results from rack instability
• Improper rack level or tilting during use
• Difficulty removing or installing the rack due to damage
• Safety hazards from a severely warped or weakened rack

This genuine GE replacement is built with a heavy-duty steel gauge and reinforced edges to retain stability cycle after cycle. Compatible oven brands also include Monogram, Maytag, Jenn-Air, and select Kenmore models.


This hidden bake element kit replaces the oven's concealed heating element to restore even baking and proper temperature. It fits under the oven floor and reconnects to the existing terminals for normal bake operation. What it does:

• Heats the oven cavity during bake cycles to produce consistent cooking temperatures
• Restores heating when a damaged or open element causes weak or no bake heat
• Helps eliminate uneven baking or long preheat times associated with a failed element
• Provides the concealed element used in many full-size electric ranges

• Disconnect power to the range before starting any repair to avoid shock hazard
• Access typically requires removing the oven bottom panel or lower compartment; keep fasteners and insulation in place as removed
• Inspect wiring and terminal connections for heat damage and replace any compromised parts

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper cavity to provide direct broil heat for searing and browning.
• Replaces a broken, burned-out, or non-heating broil element.
• Helps restore even broiling when the oven fails to reach or maintain broil temperatures.
• Compatible with ovens that use a concealed or exposed upper broil element design.

• 1 broil element

• Disconnect power at the breaker or fuse box before starting any repair.
• Remove oven racks and back panel/insulation as needed to access mounting screws and wire terminals.
• Note terminal locations and wiring before disconnecting; take a photo for reference.
• Use proper strain relief on wires and tighten mounting hardware securely; test function after reassembly.

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The HALOGEN LAMP ASM is an OEM component specifically designed for GE electric wall ovens and ranges. It serves as the light source to illuminate the oven cavity, allowing users visual inspection of dishes during the cooking process.

Causes of a bad halogen lamp assembly can include bulb burnout over extended use. Handling the lamp without protective gear may also cause accidental breakage.

Symptoms of a bad halogen lamp assembly involve:

• Dim or unlit oven cavity preventing visibility of food
• Completely burned out or broken bulb housing unit
• Faulty bulb connection preventing power delivery

Replacing it with this genuine GE part restores the essential oven light functionality. Proper illumination streamlines cooking and ensures thorough temperature application.

This OEM GE halogen lamp assembly replacement is also compatible with some Hotpoint and RCA wall oven models. Reliable lighting performs as intended cycle after cycle.


This hinge bracket assembly secures and supports the refrigerator door pivot to restore proper door alignment and reliable opening/closing. It replaces worn or damaged hinge hardware to help stop door sag and improve sealing. What it does

• Replaces the door hinge bracket that anchors the hinge to the cabinet or door
• Restores correct door alignment and smooth pivoting motion
• Helps eliminate sagging or uneven door gaps that affect the seal
• Works with existing hinge pins and mounting points to secure the door

• One hinge bracket assembly kit

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; tighten fasteners to secure bracket without over-torquing

This heat-resistant gasket fits around the broil element where it passes through the oven liner. It helps seal the opening to reduce heat and moisture leaks and provides a secure, finished fit for the element.

• Seals the broil element pass-through at the oven liner to help contain heat, steam, and splatters
• Helps protect insulation and wiring behind the liner from spills and debris
• Cushions the mounting point to reduce metal-to-metal wear and rattles
• Common signs it's needed: brittle, cracked, or missing gasket; discoloration or residue at the pass-through; element feels loose at the mounting point

• Disconnect power at the breaker and let the oven cool completely before servicing
• Remove broil element screws and gently lower or pull the element forward to access the pass-through
• Remove the old gasket; seat the new gasket evenly without stretching or pinching; don't overtighten hardware
• Reconnect firmly and route wires away from sharp edges before reassembly

This bottom air duct cover replaces the lower air duct cover that routes airflow and protects internal components. It helps maintain proper airflow and keeps debris out of the appliance interior. What it does:

• Covers and channels air at the appliance's lower duct to support proper ventilation
• Protects internal components from debris and loose items entering the duct area
• Helps reduce airflow obstructions that can contribute to overheating or reduced performance
• Fits into the lower cabinet/oven duct area to restore original airflow path

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove lower access panel or kick plate to access the duct area; retain screws for reinstallation.
• Align the cover with existing mounting points; secure with original fasteners or equivalent.
• Inspect surrounding ducts, seals, and components.

A small replacement mounting screw used to secure panels and components in household appliances. Restores proper fastening to reduce rattling, loose panels, and misaligned parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and trim to keep appliance parts securely in place.
• Stops vibration-related noise caused by loose fasteners.
• Prevents components from shifting, which can affect fit and function.
• Works wherever the OEM screw specification matches the application.

• Use the matching screw size and thread type for the original hole; do not force a mismatched screw.
• Turn off and disconnect power before accessing internal components to avoid shock.
• Hand-start threads to prevent cross-threading; tighten until snug—do not over-torque.
• If multiple screws or a specific length/type is required, verify the full parts list for your model before ordering.
