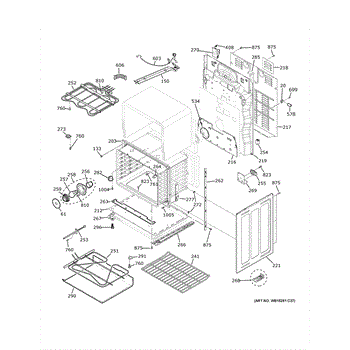

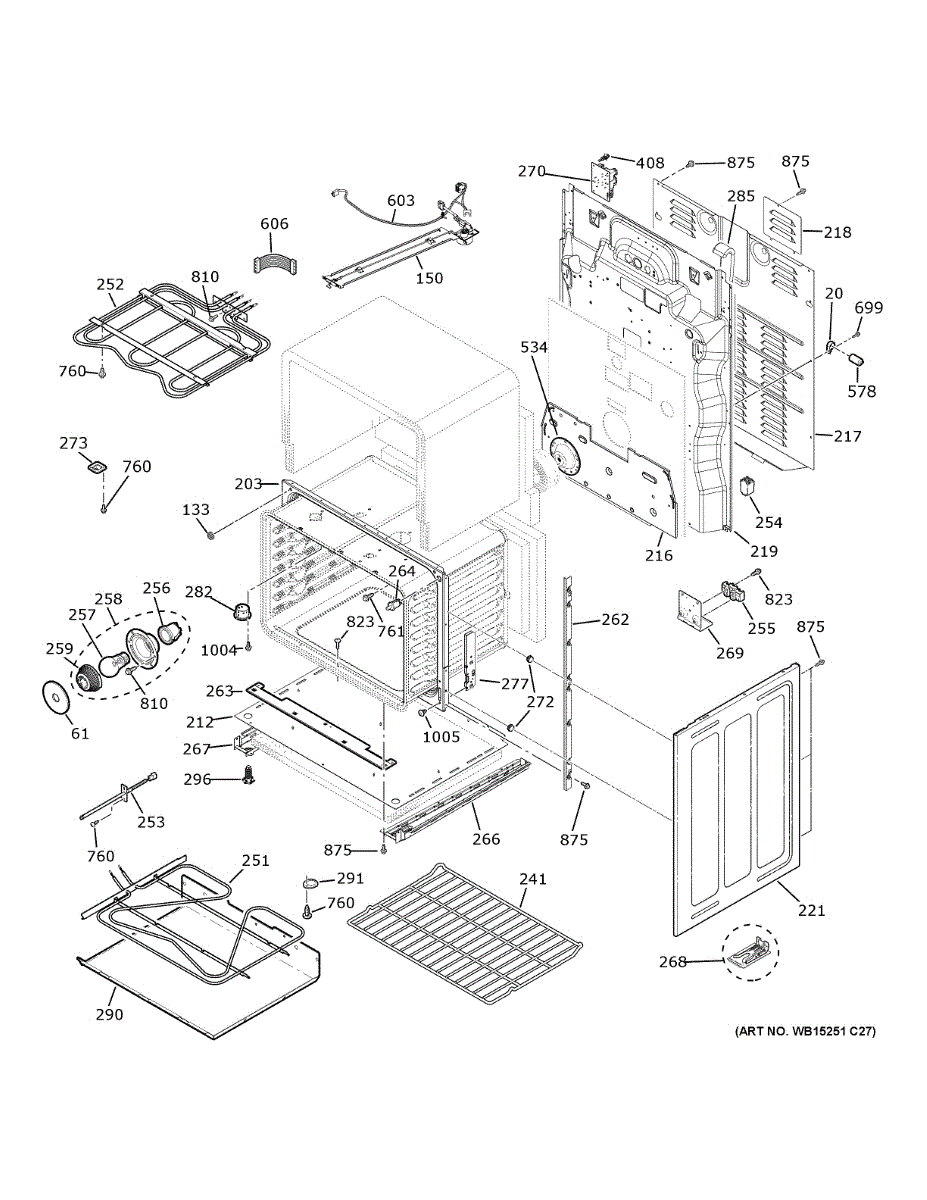

Parts for Ge PB965BP2TS: Lower Oven Parts

This cover terminal block protects the appliance's power connection area by covering the terminal block where the power cord attaches. It keeps wiring secure and helps reduce risk of accidental contact and shorting. What it does:

• Covers and protects the power cord terminal block from dust, moisture and accidental contact
• Prevents exposed terminal ends that can cause arcing or shorts
• Helps keep wiring routed and secured at the power connection
• Common replacement when the original cover is cracked, melted or missing

• One cover terminal block

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the cover
• Remove any mounting screws and lift off the old cover to access terminals; document wire locations before disconnecting
• Reinstall cover after confirming tight, correct terminal connections and that no bare conductors are exposed
• If terminals or wiring show damage (burning, melting, corrosion), replace or repair those parts before reinstalling the cover and restore power only when safe

This oven rack replaces a damaged or missing rack to restore safe, level support for cookware. It slides on the existing side rails to position pans at the proper height for baking, roasting, or broiling.

• Provides a sturdy, level surface for pans and bakeware
• Slides smoothly on the oven's support rails for easy access
• Replaces racks that are bent, warped, rusted, or broken
• Helps prevent tipping or wobbling during use

• Allow the oven to cool completely before servicing
• Pull the old rack straight out to remove
• Insert the new rack, matching the original orientation, and engage both side rails evenly
• Verify the rack seats level and slides fully before use

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

This compressor start relay helps the refrigerator compressor receive the initial jolt it needs to start running, restoring normal cooling when a worn relay prevents compressor startup. It's a direct-fit replacement specified by the manufacturer. What it does:

• Provides the momentary boost the compressor needs to start under load
• Helps prevent repeated hard-start attempts that can overheat or damage the compressor
• Commonly used when a refrigerator hums but the compressor won't start
• Works with the compressor's start device circuitry to control start winding engagement

• One replacement compressor start relay

• Disconnect power to the appliance before servicing to avoid shock
• Access and replace the relay per the appliance's service instructions; avoid bending terminals
• Inspect the compressor and wiring for additional damage before reassembly

The Terminal Block Assembly is an OEM part for GE electric ranges. It provides connections between internal wiring and the home's electrical supply.

Causes of failure can include corrosion of metal prongs from heat and moisture exposure over time, splitting insulation sheathing from continuous vibrations, or loosened mounting fasteners.

Symptoms of a faulty terminal block include:

• Intermittent or unstable power to heating elements surfaces
• Loose, frayed, or corroded wire attachments risking electrical faults
• Inability to maintain programmed cooking temperatures

This part is also compatible with Hotpoint and RCA electric range models.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This relay daughter board is the small control board that mounts to or plugs into the main control. It restores reliable switching of power to high-demand components so cooking functions operate as intended. What it does:

• Works with the main control to energize onboard relays and switch line voltage to high-load components
• Routes power to elements, fans, motors, or other loads as designed by the appliance
• Common failure symptoms include no heat, certain functions not working, intermittent operation, or visible burn marks/heat damage on the board
• Presents relay clicking without the related component activating

• One relay daughter board

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the PCB by its edges and avoid flexing the board
• Photograph and label wiring; move connectors one at a time to the new board
• Ensure the board is properly seated/secured on standoffs and all connectors are fully engaged before restoring power

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hidden bake harness is the wiring assembly that connects the oven's hidden bake element to the control and power, restoring reliable heater power and oven bake function. Designed for direct replacement where this OEM-style harness is used. What it does:

• Routes power from the oven control/power source to the hidden bake (lower) heating element.
• Replaces damaged, burned, or corroded wires and connectors that can cause no-heat or intermittent heating during bake.
• Ensures secure connector fit to maintain consistent electrical contact and oven performance.
• Helps resolve common symptoms like no bake heat, erratic heating, or visible wire damage near the element area.

• One hidden bake wire harness

• Disconnect all power at the breaker or appliance plug before servicing to avoid electric shock.
• Handle sharp sheet-metal edges inside the oven cavity; wear gloves and eye protection.
• Verify connector orientation and secure routing away from moving parts and high-heat surfaces; replace any mounting clips if needed.

This 10-32 x 3.30 screw with a Torx T20 drive secures panels and components in place to restore safe, rattle-free operation. Use when worn or missing screws cause loose trim, control panels, or internal assemblies. What it does

• Fastens panels, brackets, and components using a 10-32 thread for a secure hold
• Replaces stripped, corroded, or missing screws that cause vibration or rattling
• Helps maintain proper alignment of control panels and internal parts
• Restores grounding/retention where original screws are required for safety

• One 10-32 x 3.30 Torx T20 screw (quantity: 1)

• Use the correct Torx T20 driver to avoid damaging the screw head
• Tighten snugly but do not overtighten; replace with identical part for fit and safety
• Power off and unplug the appliance before accessing internal components
• If screws fasten parts involved with grounding or electrical connections, verify secure contact after reinstalling
