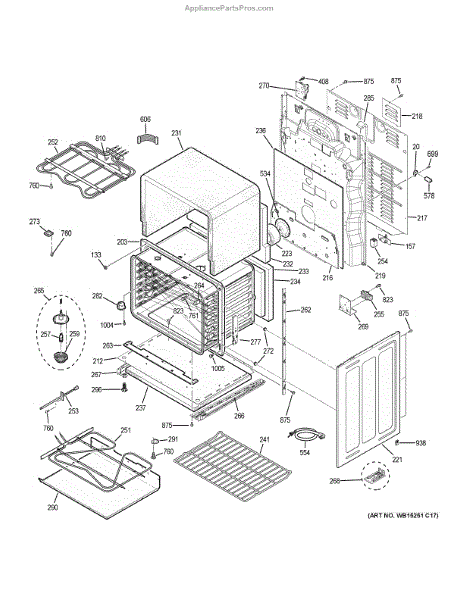

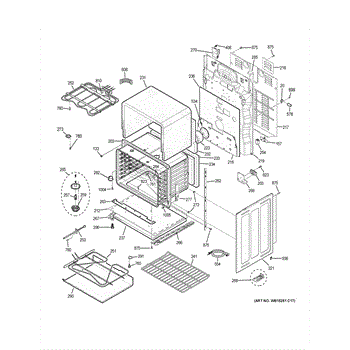

Parts for Ge PCB980SJ5SS: Lower Oven Parts

Back heat shield panel for electric ranges. Protects rear components from oven heat. Replace if cracked, warped, or missing to restore proper insulation.

Wire cover for electric ranges. Protects and conceals main wiring connections. Replace if cracked, broken, or missing to restore proper coverage.

Covers the power terminal block where the cord connects. Protects wiring from dust and accidental contact. Direct-fit part for electric ranges.

Gray removable oven rack that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore stable support and proper positioning.

Oven not heating or baking unevenly? The hidden bake element often fails and needs replacement. Advanced repair requiring panel removal—2-3 hours.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Fix burners that won't heat or cycle properly with this infinite switch. Controls surface element temperature by regulating power flow. Easy DIY fix.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Halogen light bulb assembly that illuminates your oven cavity. Replace if light is dim, flickering, or unresponsive. Verify fit with model number.

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Strain relief bracket secures and protects the power cord connection on your range. Replace if damaged, cracked, or missing to ensure safe installation.

Oven light not working or relay not clicking? This relay daughter board controls lighting circuits. Plugs into main control board for quick repair.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.

Replace your electric range's power cord if damaged, frayed, or missing. This cord connects your range to the wall outlet for electrical power.

Convection fan won't run or oven bakes unevenly? This wall oven fan motor circulates hot air for even cooking. Moderate DIY repair, 1-2 hours.

This hidden bake harness is the wiring assembly that connects the oven's hidden bake element to the control and power, restoring reliable heater power and oven bake function. Designed for direct replacement where this OEM-style harness is used. What it does:

• Routes power from the oven control/power source to the hidden bake (lower) heating element.
• Replaces damaged, burned, or corroded wires and connectors that can cause no-heat or intermittent heating during bake.
• Ensures secure connector fit to maintain consistent electrical contact and oven performance.
• Helps resolve common symptoms like no bake heat, erratic heating, or visible wire damage near the element area.

• One hidden bake wire harness

• Disconnect all power at the breaker or appliance plug before servicing to avoid electric shock.
• Handle sharp sheet-metal edges inside the oven cavity; wear gloves and eye protection.
• Verify connector orientation and secure routing away from moving parts and high-heat surfaces; replace any mounting clips if needed.

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

This 10-32 x 3.30 screw with a Torx T20 drive secures panels and components in place to restore safe, rattle-free operation. Use when worn or missing screws cause loose trim, control panels, or internal assemblies. What it does

• Fastens panels, brackets, and components using a 10-32 thread for a secure hold
• Replaces stripped, corroded, or missing screws that cause vibration or rattling
• Helps maintain proper alignment of control panels and internal parts
• Restores grounding/retention where original screws are required for safety

• One 10-32 x 3.30 Torx T20 screw (quantity: 1)

• Use the correct Torx T20 driver to avoid damaging the screw head
• Tighten snugly but do not overtighten; replace with identical part for fit and safety
• Power off and unplug the appliance before accessing internal components
• If screws fasten parts involved with grounding or electrical connections, verify secure contact after reinstalling
