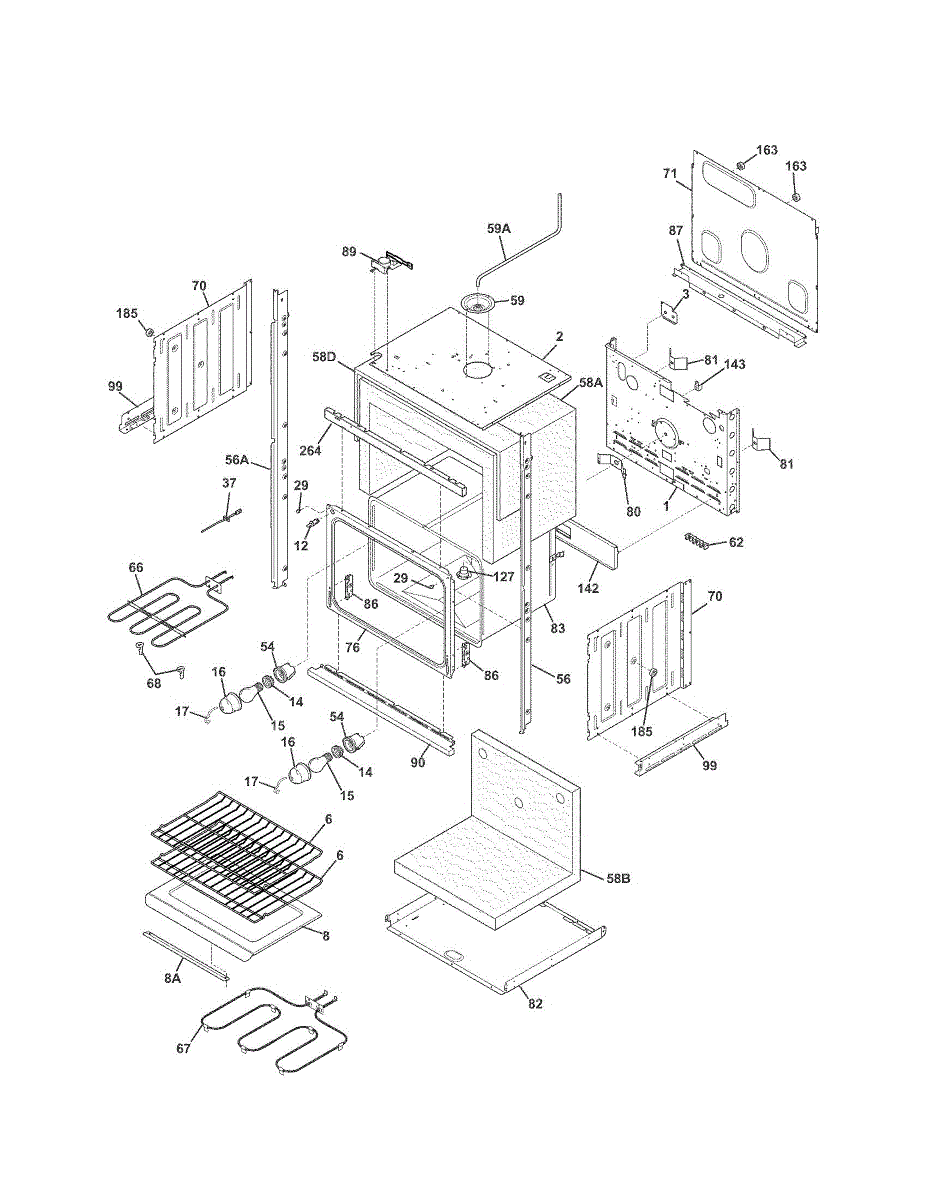

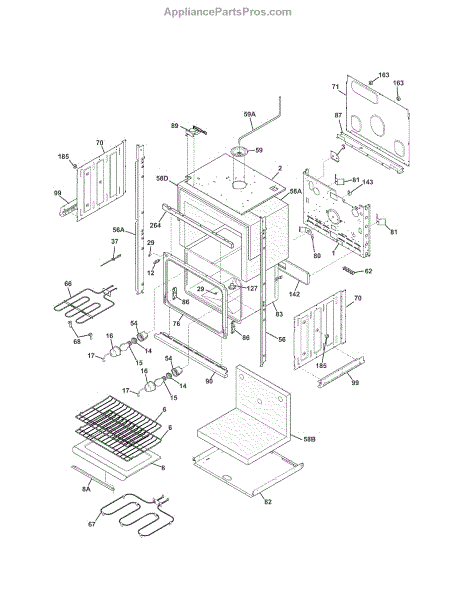

Parts for Kenmore 790.48762901 (79048762901, 790 48762901): Lower Oven Parts

Replace your oven's support plate if it's cracked, broken, or missing. This structural component mounts inside the oven cavity to secure internal parts.

The bottom element cover is a panel that sits on the floor of your oven cavity, concealing and protecting the lower bake element underneath. It helps distribute heat more evenly across the oven floor and protects the element from food drips and spills. Replace this cover if it is warped, cracked, or damaged in a way that exposes the element or causes uneven baking results.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Side filler trim piece for wall ovens. Fills the gap between oven and cabinet. Replace if cracked, discolored, warped, or missing for a finished look.

Side filler trim panel for wall ovens. Fills the gap between oven and cabinet for a finished look. Replace if cracked, damaged, or missing.

Decorative trim piece for wall ovens that installs around the control panel or door edge. Replace if your trim is cracked, chipped, discolored, or missing.

Insulation padding for wall ovens. Installs inside oven cavity to provide sound dampening and thermal protection. Replace if worn, compressed, or missing.

Adapter component for wall ovens. Connects and secures internal parts or assemblies. Replace if cracked, broken, or missing to restore proper fit.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electric heating element restores consistent, reliable heat in your appliance, so cooking or warming functions work as intended. Replace a failed element to eliminate slow heat-up, uneven temperatures, or no-heat conditions.

• Converts electrical power into heat for the appliance's designated cavity or surface
• Common failure symptoms: no heat, uneven heating, very slow preheat/warm-up
• Visual clues: breaks, blisters, or hot spots on the coil
• May cause the unit to cycle erratically or trip a breaker if shorted

• Disconnect power at the breaker or unplug before servicing; allow all components to cool
• Wear cut-resistant gloves; avoid bending or kinking the element
• Photograph wiring and transfer connectors one-for-one; ensure tight, clean terminal fits
• Inspect wires/terminals for heat damage and replace any compromised connectors

Oven not heating or heating unevenly? This bake element restores proper temperature for consistent cooking. DIY-friendly installation in under an hour.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Replace a damaged, cracked, or missing heat shield in your oven. This protective guard installs inside the oven cavity to shield components from heat.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix an oven door that won't lock or unlock during self-clean cycle. This door latch motor controls the locking mechanism. Moderate DIY repair.

Vent adapter assembly installs in the oven cavity to connect ventilation ducts. Replace if cracked, damaged, or missing to restore proper airflow.

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.
