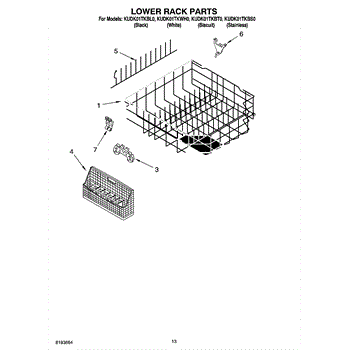

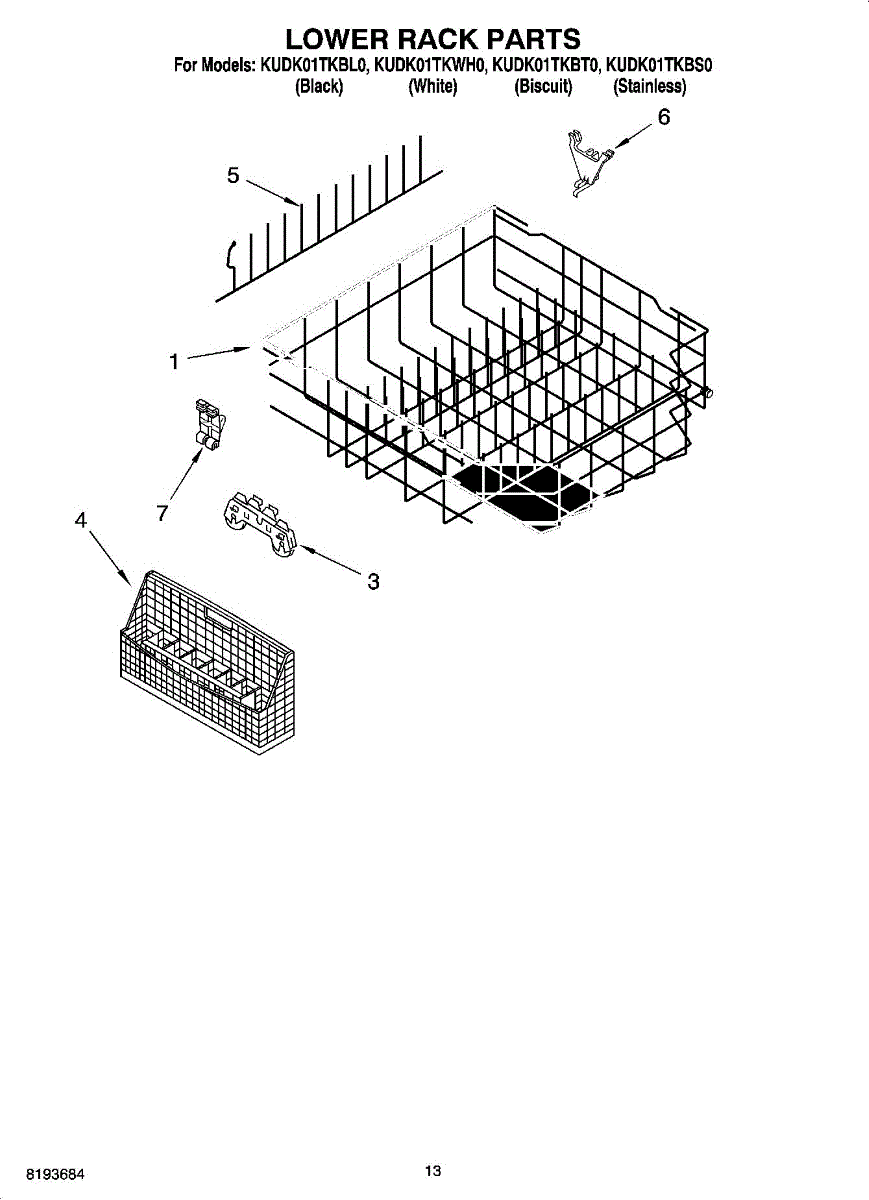

Parts for Kitchenaid KUDK01TKBL0: 10 - Lower Rack Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Restore smooth loading and secure placement for your dishes with this replacement dishrack. Replacing a bent, rusty, or damaged rack helps keep items upright, improves spray coverage, and prevents flaking or broken tines from contaminating the wash. What it does

• Holds and organizes dishes, bowls, and cookware during the wash cycle
• Slides on the rail system for easy loading and unloading
• Helps maintain proper spray coverage and drainage for effective cleaning
• Common symptoms of failure: rusted or broken tines, peeling rack coating, rack wobbling or derailing, poor rolling, items tipping over

What's included

• 1 dishrack

Install notes

• Disconnect power and shut off water; open the door and fully extend the rack
• Remove rail stop clips/end caps as applicable and slide out the old rack; wear gloves to avoid cuts from sharp edges or rust
• Transfer any reusable accessories (silverware basket, clips, holders) from the old rack if needed
• Slide the new rack onto the rails, reinstall the stops, and verify it glides smoothly before running a cycle

Color: light gray. Measures about 3 inches high by 6 inches deep.

The Tine Row is an OEM part for Whirlpool dishwashers. It is a component of the dishwasher's rack that holds dishes, glasses, and other items securely in place during the wash cycle. The tine row helps organize the dishes, ensuring they remain upright and properly spaced for optimal cleaning.

Causes of a bad tine row can include regular wear and tear, excessive force when loading or unloading dishes, or rust and corrosion over time, particularly in areas with hard water.

Symptoms of a bad tine row include:

• Bent or broken tines
• Difficulty in placing dishes securely
• Rust or discoloration on the tines
• Dishes not staying in place during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This folddown pivot is the lower hinge that lets a folddown door or panel rotate smoothly and hold position, restoring proper movement and alignment. It replaces a worn or broken lower pivot so the door or panel opens and closes correctly. What it does:

• Acts as the lower hinge point for a folddown door or panel, allowing controlled pivoting motion
• Replaces a worn, cracked, or broken pivot that causes sticking or sagging
• Helps the door/panel stay aligned and close securely instead of dropping or binding
• Commonly used when the folddown component wobbles or will not stay in the open or closed position

• Disconnect power and remove any attached panels or shelves before replacing
• Support the door/panel during removal and installation to avoid damage or injury
• Reuse OEM fasteners if undamaged or replace with equivalent hardware; ensure proper alignment during installation
• Test movement several times after installation to ensure smooth operation and secure fit

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
