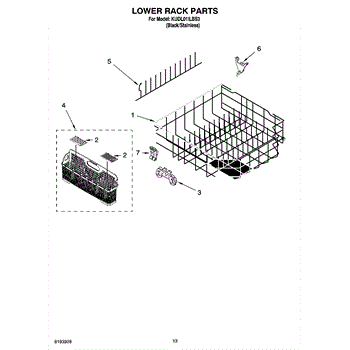

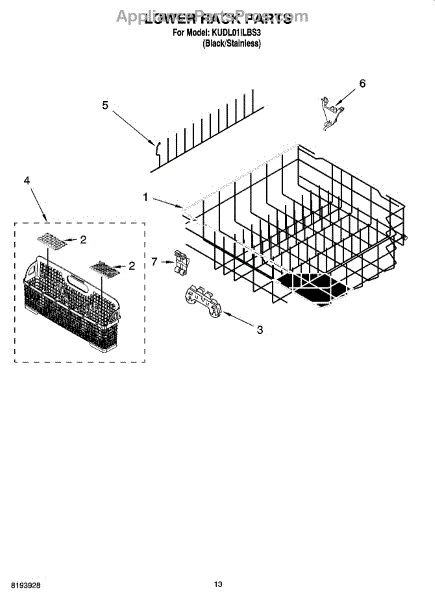

Parts for Kitchenaid KUDL01ILBS3: 11 - Lower Rack Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Restore smooth loading and secure placement for your dishes with this replacement dishrack. Replacing a bent, rusty, or damaged rack helps keep items upright, improves spray coverage, and prevents flaking or broken tines from contaminating the wash. What it does

• Holds and organizes dishes, bowls, and cookware during the wash cycle
• Slides on the rail system for easy loading and unloading
• Helps maintain proper spray coverage and drainage for effective cleaning
• Common symptoms of failure: rusted or broken tines, peeling rack coating, rack wobbling or derailing, poor rolling, items tipping over

What's included

• 1 dishrack

Install notes

• Disconnect power and shut off water; open the door and fully extend the rack
• Remove rail stop clips/end caps as applicable and slide out the old rack; wear gloves to avoid cuts from sharp edges or rust
• Transfer any reusable accessories (silverware basket, clips, holders) from the old rack if needed
• Slide the new rack onto the rails, reinstall the stops, and verify it glides smoothly before running a cycle

This replacement left-side lid for the silverware basket restores coverage and helps keep utensils contained during dishwasher cycles. It matches OEM fit and appearance so the basket functions as designed. What it does:

• Covers and secures utensils in the left section of the silverware basket
• Helps prevent small items from shifting or falling through during wash cycles
• Restores proper basket alignment for even water flow and rinsing
• Reduces the chance of utensil contact with rotating spray arms

• Snap-in replacement; no special tools typically required
• Remove the silverware basket to access and align the lid before snapping into place
• Inspect surrounding basket clips/rims for damage and replace if worn to ensure secure fit
• Disconnect power to the appliance and follow the manufacturer's safety instructions before servicing

Right-side basket lid for top-load washers. Replaces a cracked or damaged right-side lid to help contain laundry, reduce splashing and restore the basket cover so the washer closes and operates as intended. What it does:

• Covers the right side of the inner wash basket and helps keep clothes from catching on the basket edge.
• Helps reduce water splash and keeps items contained during the wash.
• Restores proper fit and alignment of the basket cover area that may affect lid closing.
• Used when the original right-side lid is cracked, warped, or broken.

• Disconnect power and water supply before beginning service.
• Handle edges carefully; wear gloves to avoid sharp edges on broken parts.
• Installation typically requires removing the outer cabinet or basket access panels and securing the lid with existing fasteners — follow the model's service manual for exact steps.

Color: light gray. Measures about 3 inches high by 6 inches deep.

The Silverware Basket is an OEM part for Whirlpool dishwashers. It provides a designated area for organizing and holding silverware and small utensils during the washing cycle, ensuring they are thoroughly cleaned and properly dried. It measures approximately 5 inches wide, 9 inches high, and 20 inches deep. I

Causes of a bad silverware basket can include cracks or breaks in the plastic, warping due to exposure to high temperatures, or damage from overloading or mishandling. When the basket is compromised, it can lead to inefficient cleaning or items falling out during the cycle.

Symptoms of a bad silverware basket include:

• Broken or missing sections of the basket
• Utensils slipping through holes or falling out
• Difficulty in placing or removing silverware
• Uneven or insufficient cleaning of silverware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tine Row is an OEM part for Whirlpool dishwashers. It is a component of the dishwasher's rack that holds dishes, glasses, and other items securely in place during the wash cycle. The tine row helps organize the dishes, ensuring they remain upright and properly spaced for optimal cleaning.

Causes of a bad tine row can include regular wear and tear, excessive force when loading or unloading dishes, or rust and corrosion over time, particularly in areas with hard water.

Symptoms of a bad tine row include:

• Bent or broken tines
• Difficulty in placing dishes securely
• Rust or discoloration on the tines
• Dishes not staying in place during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This folddown pivot is the lower hinge that lets a folddown door or panel rotate smoothly and hold position, restoring proper movement and alignment. It replaces a worn or broken lower pivot so the door or panel opens and closes correctly. What it does:

• Acts as the lower hinge point for a folddown door or panel, allowing controlled pivoting motion
• Replaces a worn, cracked, or broken pivot that causes sticking or sagging
• Helps the door/panel stay aligned and close securely instead of dropping or binding
• Commonly used when the folddown component wobbles or will not stay in the open or closed position

• Disconnect power and remove any attached panels or shelves before replacing
• Support the door/panel during removal and installation to avoid damage or injury
• Reuse OEM fasteners if undamaged or replace with equivalent hardware; ensure proper alignment during installation
• Test movement several times after installation to ensure smooth operation and secure fit

Color: gray. Measures about a 1/2 inch wide by 3 inches high by 1-1/2 inches deep.
