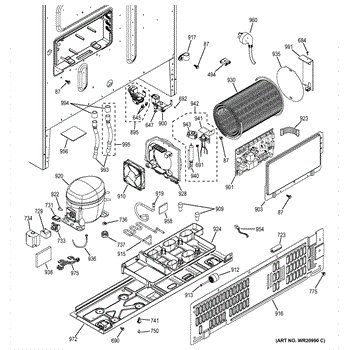

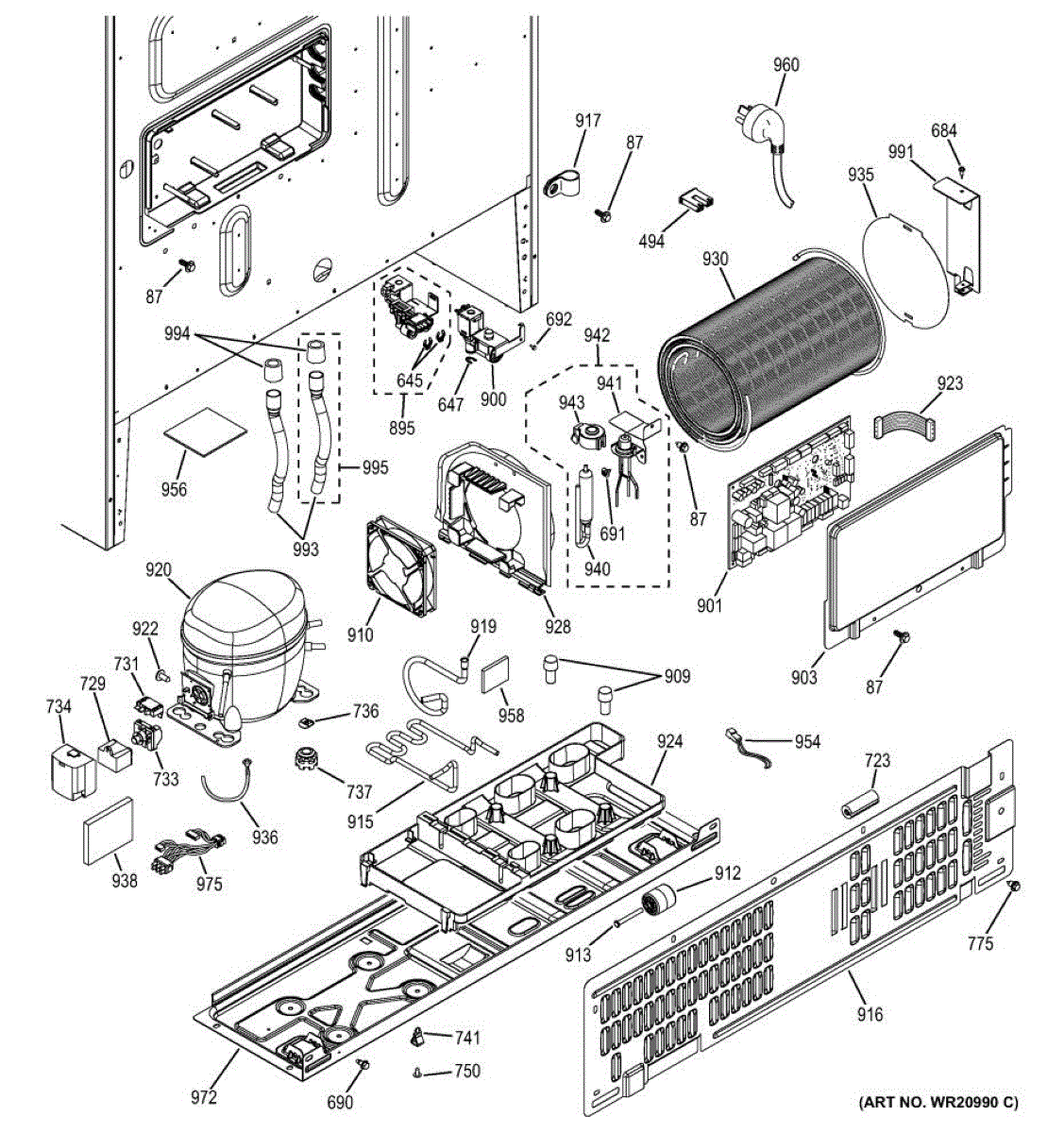

Parts for Ge GFE29HSDASS: 02 - Machine Compartment Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

2 wire insulator.

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Size: 8-32 t. Includes 12 screws.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

A rubber tubing grommet that fits a factory hole to protect and cushion refrigerant/water tubing and help prevent chafing or leaks. Simple, durable replacement that restores a sealed pass-through for tubing. What it does:

• Cushions and protects tubing where it passes through sheet metal or plastic openings
• Helps prevent chafing, rubbing and premature tubing wear
• Provides a cleaner, more secure tubing pass-through to reduce leak risk
• Commonly used on water lines, refrigerant lines or small-diameter tubing in appliances

• One tubing grommet

• Disconnect power and water supply before servicing the appliance
• Remove access panels as needed to reach the tubing hole; press-fit the grommet into the opening and route tubing through the slit
• Replace grommet if cracked, torn or excessively worn; ensure tubing is properly seated in the grommet
• Do not use sharp tools that could damage the grommet or tubing during installation

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Compressor Overload Protector is an OEM part for GE refrigerators. This part protects the compressor from electrical overload and potential damage. The overload protector ensures the proper function of the compressor by monitoring the electrical current flowing through it. If the current exceeds safe levels, the overload protector will automatically shut off power to the compressor, preventing overheating and potential system failure.

A bad compressor overload protector can occur due to electrical faults or wear and tear over time. If you notice symptoms such as the refrigerator not cooling properly, frequent cycling of the compressor, or the compressor not running at all, it may be time to replace the overload protector.

Symptoms of a bad compressor overload protector include:

• Inadequate cooling in the refrigerator
• Frequent cycling on and off of the compressor
• Compressor not running or not starting

Ensure the reliable operation of your GE refrigerator's compressor by replacing the faulty overload protector with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Compressor Start Relay is an OEM component specifically designed for GE refrigerators. This relay works to provide power to initiate the start of the compressor during each cooling cycle. The compressor start relay is responsible for transmitting electrical signals from the control board to engage the compressor.

Causes of a bad compressor start relay can include prolonged usage accumulating wear and tear, or exposure to temperature extremes and moisture that could damage electronic components over time.

Symptoms of a faulty compressor start relay include:

• Compressor failing to turn on during operation
• Temperature control malfunctions with inconsistent cooling
• Error codes displayed related to starting issues
• Clicking sounds but failure to start the compressor

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This hex-washer-head screw secures panels, brackets, and internal components in your dishwasher. Replacing a stripped, rusty, or missing fastener restores a tight fit, reduces rattling, and helps keep assemblies properly aligned during operation.

• Fastens components to frames, panels, and mounting brackets inside the dishwasher
• Helps maintain alignment and resist loosening from vibration
• Replaces missing, worn, or corroded screws
• Signs of trouble: loose or rattling panels, hardware that won't tighten, or a visible missing screw

• Disconnect power and water supply before servicing
• Note the original screw's location/orientation and install in the same hole
• Start threads by hand to avoid cross-threading; use the correct nut driver or socket
• Tighten snugly without over-torquing to prevent stripping

• Head style: Hex washer-head
• Size: #10-16 thread, 3/8 in length
• Sold individually

Keep ice production steady by replacing a faulty inlet valve. This ice maker water inlet valve assembly controls the water flow into the ice maker so it fills at the right time and shuts off properly.

• Opens during the fill cycle to supply water to the ice maker
• Seals closed to prevent drips and overfilling between cycles
• Helps resolve no-ice, small or hollow cubes, or water dripping from the fill tube
• Common signs of failure include buzzing/humming with no water flow or visible mineral buildup

• Disconnect power and shut off the water supply before servicing
• Pull the refrigerator forward to access the valve and relieve line pressure; place a towel to catch residual water
• Note tubing and wire locations; transfer connections one-for-one to the new valve and avoid over-tightening compression fittings
• Restore water, check all connections for leaks, then power up and run an ice maker fill cycle to verify operation

The Water Inlet Valve is an OEM part for GE refrigerators. It controls the flow of water into the refrigerator’s ice maker and water dispenser, ensuring a consistent and regulated water supply. The valve opens and closes in response to electrical signals, allowing water to enter the appliance as needed.

Causes of a bad water inlet valve can include mineral buildup from hard water, wear and tear over time, or electrical faults. A malfunctioning valve can lead to issues with water flow and ice production, impacting the refrigerator's performance.

Symptoms of a bad water inlet valve include:

• No water flow to the ice maker or water dispenser
• Slow or inconsistent water flow
• Leaking water around the valve
• Ice maker not producing ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Main Control Board (Reflashed) is an OEM replacement part for GE refrigerators. This board serves as the central hub for managing key refrigerator functions, including temperature regulation, defrost cycles, and operation of fans and compressors. The "reflashed" designation indicates that the board is pre-programmed with the latest firmware specific to your appliance model, ensuring optimal performance.

Over time, control boards can fail due to power surges, electrical component wear, or environmental factors such as moisture. A faulty board can disrupt the refrigerator’s functionality, leading to inefficient cooling and other operational issues.

Symptoms of a bad main control board include:

• Inconsistent or incorrect temperatures in the refrigerator or freezer
• Unresponsive controls or display malfunctions
• The refrigerator not cooling, or cycling excessively
• Error codes or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Motor Assembly is an OEM part for GE refrigerators. This part is responsible for circulating air through the refrigerator condenser coils and over the compressor. It plays a role in dissipating heat away from the refrigerator's cooling system, ensuring that the appliance operates efficiently and maintains the set temperatures to keep your food fresh and safe.

Causes of a bad condenser fan motor can include overheating due to blockages in the fan blades, wear and tear on the motor bearings, or electrical faults that prevent the motor from running.

Symptoms of a bad Condenser Fan Motor Assembly include:

• The refrigerator runs warmer than usual
• Unusual noises coming from the back of the refrigerator
• The fan motor does not run when the compressor is on
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This replacement power cord provides the appliance's main AC connection so it can receive power and operate reliably. It restores a safe, factory-style power connection when the original cord is damaged or worn. What it does

• Supplies mains power to the appliance through the cabinet connection
• Replaces frayed, cut, melted, or damaged cords that cause intermittent power or no power
• Helps eliminate burning smells, arcing, or visible insulation damage at the cord
• Matches OEM electrical connection style for proper fit and secure contact

• One power cord assembly

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the cord
• Verify cord routing and strain relief position to prevent pinch points or abrasion
• Use proper tools and fasteners; tighten connections securely but do not overtighten
