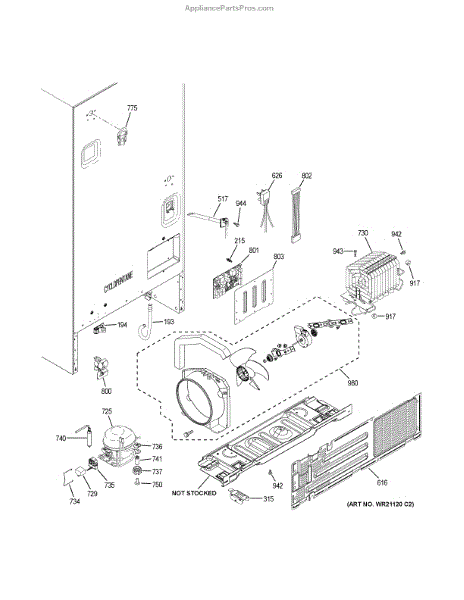

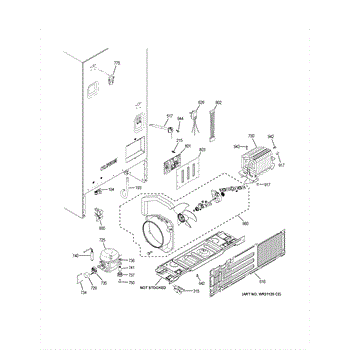

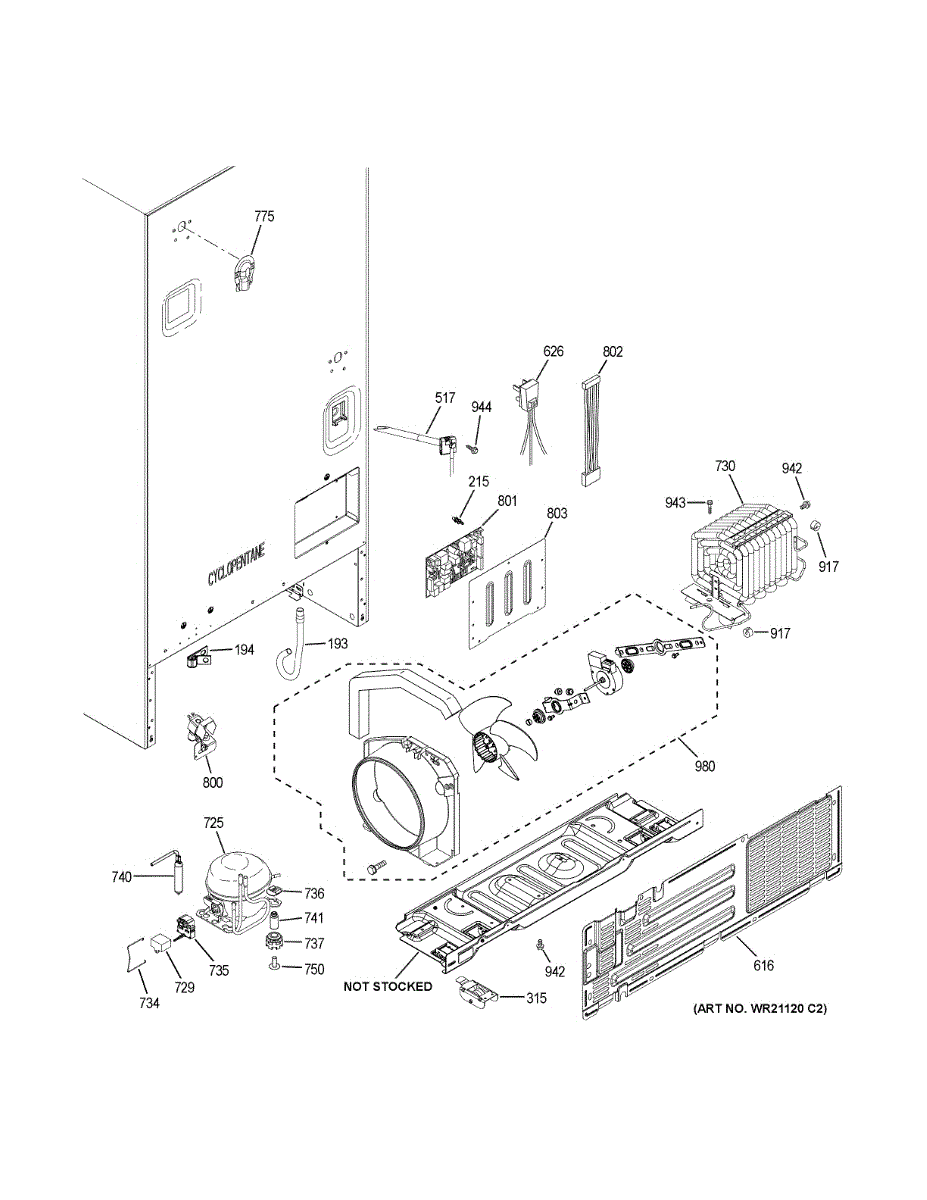

Parts for Ge GDE25ESKBRSS: Machine Compartment Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This stand off is a small mounting spacer that secures and spaces internal components, restoring proper alignment and reducing panel movement or vibration for quieter, more reliable operation. What it does:

• Provides a solid mounting point to hold panels, brackets or wiring harnesses in place.
• Replaces broken, cracked or missing standoffs that allow components to shift or rub.
• Helps stop rattling, buzzing or misalignment caused by loose mounting points.
• Keeps proper clearance between parts to prevent wear or chafing over time.

• Disconnect power to the appliance before starting any repair.
• Remove the affected panel or access cover to reach the damaged standoff.
• Replace the old standoff with the new part; retain and reuse any existing screws or fasteners unless damaged.
• Hand-tighten mounting hardware and test the appliance; avoid overtightening plastic standoffs.

The Grommet and Tube Icemaker Assembly is an OEM part for GE refrigerators. This assembly features a sealing grommet that fits snugly around refrigerant tubes entering the icemaker system. It prevents air leaks while allowing flexible movement of insulated tubing.

Symptoms of a bad grommet assembly include:

• Frost or condensation building up around the tube entry point
• Difficulties with the icemaker maintaining proper freezing temperatures

Causes can be splits or cracks in the rubber grommet developing after years of fluctuating fridge temperatures contracting and expanding the material.

This GE OEM replacement restores the crucial refrigerant line seal into the icemaker. Its durable grommet protects the refrigeration circuitry to ensure efficient icemaking for the life of the appliance. Compatible with some Hotpoint, RCA, and Kenmore side-by-side refrigerator configurations.


This access cover closes a service opening on the refrigerator cabinet, protecting internal components and restoring a secure, finished fit. Replacing a cracked or missing cover helps keep debris out and supports proper operation and airflow paths.

• Covers the machine/service compartment to shield wiring, fan, and other components from contact and debris
• Helps maintain designed airflow through the compartment when properly installed
• Reduces vibration and rattling when the cover is secured
• Replace if the cover is missing, cracked, warped, or no longer fastens securely

• Disconnect power before servicing
• Remove any retaining screws/clips and note the cover's orientation and vent/slot alignment
• Transfer any original grommets or insulation to the new cover if present
• Reinstall with existing hardware; do not overtighten; ensure openings/vents remain unobstructed

The Lower Cabinet Harness is an OEM replacement part for GE refrigerators responsible for providing electrical connections between various components within the lower cabinet of the refrigerator.

A bad lower cabinet harness can occur due to wear and tear over time or damage caused by mishandling or accidents. If you notice symptoms such as intermittent or complete loss of power to components within the lower cabinet, flickering lights, or malfunctioning controls, it may indicate a need to replace the wiring harness.

Symptoms of a bad lower cabinet harness include:

• Intermittent or complete loss of power to components within the lower cabinet
• Flickering lights or erratic behavior
• Malfunctioning controls or display

Restore your refrigerator by replacing the faulty lower cabinet harness with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Overload PTCR Combo is an OEM part for GE refrigerators. This assembly includes both the start relay and the overload. The start relay is responsible for providing an extra boost of power to kick-start the compressor, while the overload acts as a safety mechanism to protect the compressor from electrical overload. Together, they help maintain cooling and prevent damage to the compressor.

A bad start relay and overload combo can occur due to electrical malfunctions or wear and tear over time. If you notice symptoms such as the refrigerator not cooling properly, unusual noises coming from the compressor, or the compressor not starting at all, it may be time to replace the combo.

Symptoms of a bad start relay and overload combo include:

• Inadequate cooling in the refrigerator
• Unusual noises coming from the compressor
• Failure of the compressor to start

Restore the proper function of your GE refrigerator's compressor by replacing the faulty start relay and overload combo with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This water line cover protects and conceals the refrigerator's water supply tubing behind the lower kickplate for a finished look and reduced risk of accidental snagging. Durable plastic shields tubing from contact and helps keep the area tidy. What it does:

• Covers and protects the refrigerator water supply line from accidental pulls or abrasion
• Keeps the tubing out of sight for a neater appearance
• Helps reduce noise from loose tubing contact with other components
• Supports proper routing of the water line to the ice maker/water dispenser

• One water line cover

• Disconnect power and shut off the water supply before servicing
• Remove the kickplate or access panel per the owner's manual to reach mounting points
• Align cover with the routing area and secure with existing clips or fasteners; do not force or modify

The Valve & Guard Assembly is an OEM part for GE refrigerators. This component controls water flow into the ice maker and water dispenser systems. It incorporates both inlet and outlet valves along with a filter guard to protect internal components.

Symptoms of a bad valve assembly include:

• Drips or leaks around the valve area
• Failure to dispense water through the external dispenser
• Inability to adequately fill the ice maker when producing cubes

Causes can be mineral buildup over time, worn valve seals, or damage to valve components.

This GE OEM replacement restores the full functionality of the refrigerator's internal plumbing. Its durable valves and protected filter ensure dependable water access and protection from contaminants entering the system. Compatible with later produced Hotpoint, RCA, and Kenmore models.


The Main Control Board Assembly is an OEM replacement part for GE refrigerators. This control board manages tasks such as temperature control, defrost cycles, and compressor operation, ensuring optimal cooling performance and energy efficiency.

A bad main control board assembly can occur due to electrical issues, component failure, or damage to the board itself. If you notice symptoms such as erratic temperature readings, frequent cycling of the compressor, or unresponsive functions, it may indicate a need to replace the control board assembly.

Symptoms of a bad main control board assembly include:

• Erratic temperature readings
• Frequent cycling of the compressor
• Unresponsive functions

Restore your refrigerator by replacing the faulty main control board assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

Specs: 8-18 AB IHW 5/8 S

This condenser fan and housing assembly circulates air over the refrigerator condenser to help dissipate heat and maintain efficient cooling. Replaces a worn or damaged condenser fan unit to restore proper airflow and reduce overheating. What it does:

• Moves air across the condenser coils to support the refrigeration cycle and prevent heat buildup
• Helps the compressor run within normal temperature by improving condenser cooling
• Commonly used to fix noisy, non-spinning, or damaged condenser fan problems
• Restores proper airflow when the original fan blade, motor mount or housing is cracked or bent

• Disconnect power to the appliance before beginning any service to avoid electrical shock
• Access typically requires removing lower kickplate or rear access panel—keep fasteners for reassembly
• Inspect wiring connectors and mounting points; replace only if explicitly specified for this part
