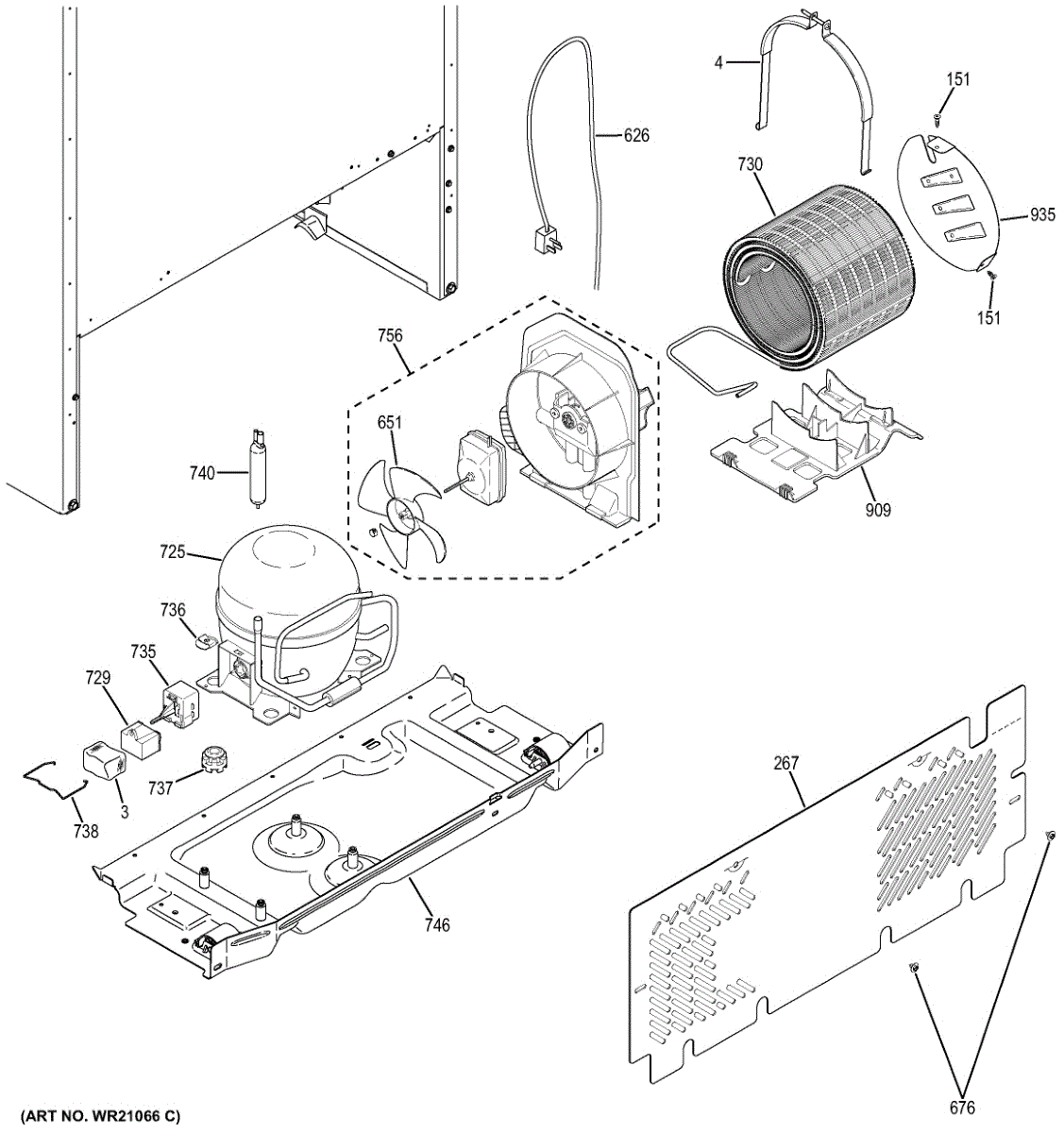

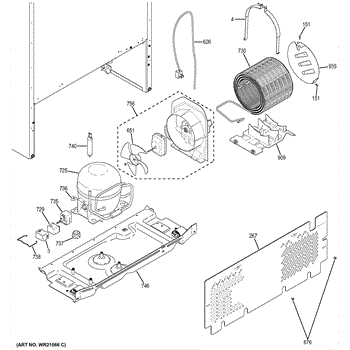

Parts for Ge GTS16DTHBRWW: Machine Compartment Parts

This condenser strap assembly secures the condenser coil to the refrigerator chassis, helping keep the coil stable and reduce vibration or contact with nearby components during operation. It's a simple replacement that restores proper condenser mounting. What it does:

• Holds the condenser coil firmly in place to prevent movement or rubbing against the cabinet
• Helps reduce rattling or vibration noises caused by a loose condenser
• Prevents wear or damage to the condenser from excessive movement
• Supports proper airflow clearance by maintaining correct condenser positioning

• Disconnect power to the appliance before beginning any repair.
• Use basic hand tools; support the condenser when removing and installing the strap to avoid bending the coil.
• Inspect surrounding components and fasteners; replace any damaged clips or screws as needed.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This rear access cover replaces the panel that protects and conceals components at the back of the refrigerator cabinet. It restores the finished appearance and helps keep dust and debris away from electrical and service areas. What it does:

• Covers and shields rear-mounted components and wiring from dust, dirt, and accidental contact
• Helps maintain a finished exterior at the rear of the cabinet after service or component replacement
• Reduces the chance of loose debris or small tools contacting internal parts during operation
• Restores proper access panel fit for service technicians and future maintenance

• One rear access cover panel

• Disconnect power to the appliance before attempting any service
• Typically secures with screws; keep original fasteners or use OEM-specified hardware
• Move the appliance away from the wall for safe access and stable working space
• Replace any damaged clips or screws to ensure a secure fit and proper protection

The Harness and Power Cord is an OEM part for GE refrigerators. It carries power from the wall outlet to internal refrigerator components and electronically connects these components through its wiring harness. A reliable harness and power cord is essential for powering refrigerator operations like cooling, freezing, lighting, and circulating air.

Causes of a bad harness and power cord can include fraying of wires over time, cracks or splits in insulation exposing wires, and damaged or faulty connectors.

Symptoms include:

• Intermittent or complete power failures
• Lights or fans not functioning
• Inability to control temperature settings
• Error codes or diagnostic issues

Having the right harness and power cord installed ensures consistent power delivery without disruptions or electrical issues. This GE OEM replacement provides a factory fit and match for your model. This part is also compatible with some Kenmore, Hotpoint, and RCA refrigerators.

Size: 10-16 ab.

The Compressor is an OEM component specifically designed for GE top-mounted and bottom-mounted refrigerator freezers. Responsible for circulating refrigerant, its robust motor compressively moves gas to chill interiors reliably. Permanent lubrication withstands constant operation.

Symptoms of a faulty compressor commonly involve cycling off too frequently or inefficient temperature regulation. Loss of pressure from degradation risks expensive repairs necessitating replacement.

Causes of a bad compressor relate to typical wear reducing circulation. Over-activation exposes motor windings to damage requiring timely change.

Causes of a bad compressor can involve:

• Failure to maintain set temperatures
• Frost buildup impairing performance
• Vibrations transferring to cabinetry

This OEM GE part is also compatible with some Hotpoint, RCA, and Frigidaire refrigerators. Replace to retain steady refrigeration preserving freshness for dependable operation long-term.


The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This condenser kit replaces a refrigerator's damaged or corroded condenser to help restore proper heat dissipation and improve cooling efficiency. It's the direct-fit condenser assembly used in compatible GE refrigeration units. What it does:

• Moves heat away from the refrigerant so the system can cool properly
• Commonly replaced for visible coil damage, corrosion, or bent fins
• Can address symptoms such as reduced cooling performance or longer run cycles
• Works with the existing refrigeration loop when installed correctly

• One replacement condenser kit

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the back or lower rear service panel
• Inspect mounting hardware and electrical connections during installation; follow OEM instructions

This assembly mounts on the refrigerator compressor and combines the PTC start relay with a thermal overload protector. It helps the compressor start reliably and cuts power if overheating occurs to protect the motor and maintain cooling performance.

• Supplies initial start current to the compressor via the PTC relay
• Opens on overcurrent/overheat to prevent compressor damage
• Common failure symptoms: compressor won't start, repeated clicking/buzzing from compressor area, warm refrigerator/freezer, short cycling
• Useful when the original start device is burned, cracked, or rattles when shaken

• Disconnect power and allow the compressor area to cool before servicing
• Remove the terminal cover, note wire locations, and pull off the old start device
• Push the new start device fully onto the compressor pins and reconnect wires per the wiring diagram
• If your model uses a run capacitor, transfer/reconnect it as directed and reinstall the cover before restoring power

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Shroud Assembly is an OEM part for GE refrigerators. Located at the rear of the refrigerator this assembly houses the condenser fan and shroud which help release excess heat from inside the refrigerator cooling system. Proper heat dissipation is essential for maintaining efficient cooling temperatures.

Causes of a bad condenser fan shroud assembly can include cracks developing in the shroud housing from years of circulation fan operation. Excessive dust buildup may also deteriorate parts.

Symptoms of a bad condenser fan shroud assembly include:

• Refrigerator unable to sufficiently cool interior temperatures
• Fan inoperative or making grinding/rubbing noises
• Shroud cracked, damaged or improperly enclosing the fan
• Reduced condenser coil performance from inadequate ventilation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This condenser support is the replacement mounting bracket that secures the refrigerator condenser coil and helps keep the unit stable behind the lower access panel. It restores proper condenser positioning for reliable cooling performance. What it does:

• Holds the condenser coil in the correct position to prevent contact with other components
• Reduces vibration and rattling from a loose condenser assembly
• Helps maintain proper airflow behind the cabinet when installed correctly
• Can prevent wear to nearby components caused by a displaced condenser

• Disconnect power before servicing and work with the appliance unplugged to avoid shock
• Access typically requires removing the refrigerator's lower access panel or rear service panel
• Basic hand tools are usually sufficient; keep fasteners for reuse unless damaged
• Handle edges carefully; inspect surrounding parts and wiring before reassembly
