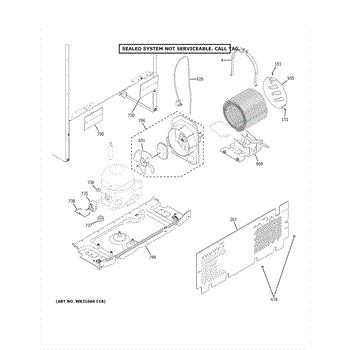

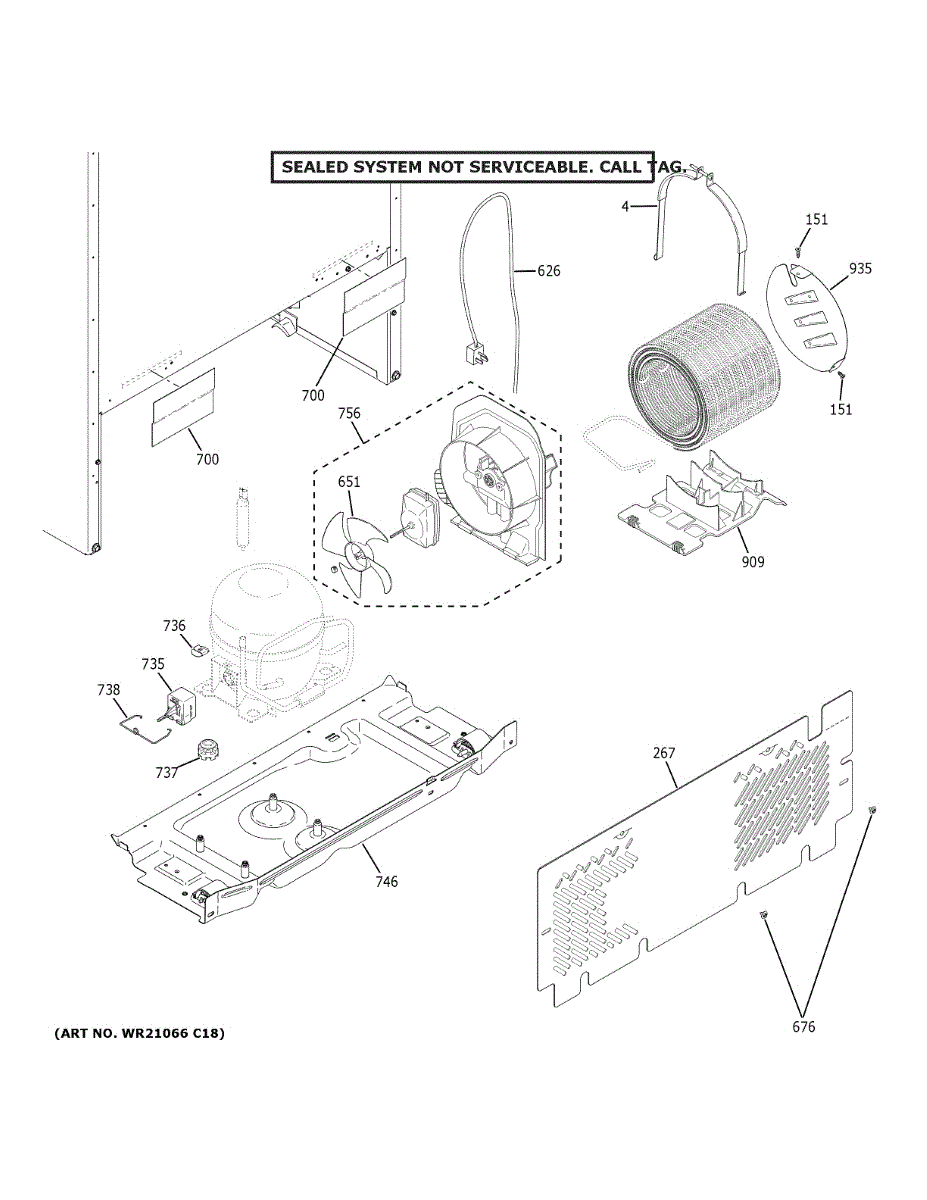

Parts for Ge GTS16DTHPRWW: Machine Compartment Parts

This condenser strap assembly secures the condenser coil to the refrigerator chassis, helping keep the coil stable and reduce vibration or contact with nearby components during operation. It's a simple replacement that restores proper condenser mounting. What it does:

• Holds the condenser coil firmly in place to prevent movement or rubbing against the cabinet
• Helps reduce rattling or vibration noises caused by a loose condenser
• Prevents wear or damage to the condenser from excessive movement
• Supports proper airflow clearance by maintaining correct condenser positioning

• Disconnect power to the appliance before beginning any repair.
• Use basic hand tools; support the condenser when removing and installing the strap to avoid bending the coil.
• Inspect surrounding components and fasteners; replace any damaged clips or screws as needed.

This hex-head screw secures dishwasher panels, brackets, and internal hardware so parts stay tight and rattle-free. Replace missing or stripped fasteners to restore a secure fit and reliable operation.

• Fastens panels, brackets, and other dishwasher components to the tub or frame
• Replaces a missing, stripped, or corroded screw that no longer holds securely
• Helps eliminate vibration and rattling caused by loose hardware
• Maintains proper alignment and secure mounting of parts during operation

• Disconnect power and shut off water supply before servicing
• Keep track of fastener locations and orientation for correct reassembly
• Start threads by hand; use an appropriate nut driver or socket to tighten
• Tighten snugly—do not overtighten, especially when threading into plastic

This rear access cover protects the refrigerator's back components and provides a clean finished look. It replaces a cracked, broken or missing rear panel so wiring, the compressor and connections stay covered and less exposed. What it does

• Shields compressor, wiring and rear components from dirt and accidental contact
• Helps prevent drafts and debris from reaching internal parts
• Reduces rattles or vibration noise caused by loose or damaged panels
• Restores the factory appearance at the back of the appliance

• Disconnect power before starting any work and move the appliance away from the wall for access
• Use appropriate screwdrivers; retain or replace mounting screws as needed
• Handle edges carefully to avoid cuts; align clips/tabs before fastening
• Refer to the manufacturer's instructions for specific fitment and mounting details

The Harness and Power Cord is an OEM part for GE refrigerators. It carries power from the wall outlet to internal refrigerator components and electronically connects these components through its wiring harness. A reliable harness and power cord is essential for powering refrigerator operations like cooling, freezing, lighting, and circulating air.

Causes of a bad harness and power cord can include fraying of wires over time, cracks or splits in insulation exposing wires, and damaged or faulty connectors.

Symptoms include:

• Intermittent or complete power failures
• Lights or fans not functioning
• Inability to control temperature settings
• Error codes or diagnostic issues

Having the right harness and power cord installed ensures consistent power delivery without disruptions or electrical issues. This GE OEM replacement provides a factory fit and match for your model. This part is also compatible with some Kenmore, Hotpoint, and RCA refrigerators.

This water diverter routes water from the supply line to the ice maker and/or dispenser, restoring proper water flow where the diverter has failed. Simple replacement helps resume ice production and dispenser operation. What it does:

• Directs incoming water flow between the ice maker and the dispenser
• Restores water delivery when the ice maker or dispenser is not filling
• Helps stop intermittent flow or misdirected water caused by a faulty diverter
• Works with the refrigerator's internal water plumbing to control routing

• Disconnect power and shut off the water supply before starting work
• Replace only with the exact part number shown to ensure fit and function
• Basic hand tools are typically required; avoid force when seating hose connections
• Inspect hoses and fittings for wear and leaks while replacing the diverter

This OL PTCR combo is a temperature-sensing and limiting assembly that helps protect and control heating circuits. It ensures safer, more reliable temperature response for affected GE appliances and their heating/defrost systems. What it does:

• Acts as a temperature limiter and PTCR (positive temperature coefficient resistor) to help regulate heater current and prevent overheating
• Commonly linked to symptoms like no heat, intermittent heating, or a circuit that fails to cycle properly
• Helps the appliance sense temperature changes and limits current as temperature rises for safety and control
• Works as a replacement for a single integrated sensing/limit component in applicable appliance heating circuits

• One OL PTCR combo assembly

• Turn off power at the breaker and unplug the appliance before installing
• Handle the component and connected wires carefully; avoid bending sensing elements or stressing terminals
• Reconnect wiring exactly as removed; confirm secure terminal connections and proper routing away from high-heat surfaces

This metal compressor mounting clip secures the refrigerator compressor to the base, helping keep the unit stable and reducing vibration transfer. Replaces a worn or broken clip to restore proper compressor alignment and quieter operation. What it does:

• Secures the compressor to the cabinet/base to prevent movement during operation and transport
• Helps reduce vibration and rattling that can indicate a loose or damaged mount
• Keeps the compressor aligned so refrigerant lines and mounting hardware remain correctly positioned
• Useful when the original clip is bent, cracked, or missing

• One compressor mounting clip

• Disconnect power to the appliance before beginning any repair
• Support the compressor before removing or installing the clip to avoid strain on lines or fittings
• Use appropriate hand tools; avoid over-tightening fasteners which can cause damage
• Replace rubber grommets or insulation if present and damaged for best vibration isolation

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The Condenser Fan Shroud Assembly is an OEM part for GE refrigerators. Located at the rear of the refrigerator this assembly houses the condenser fan and shroud which help release excess heat from inside the refrigerator cooling system. Proper heat dissipation is essential for maintaining efficient cooling temperatures.

Causes of a bad condenser fan shroud assembly can include cracks developing in the shroud housing from years of circulation fan operation. Excessive dust buildup may also deteriorate parts.

Symptoms of a bad condenser fan shroud assembly include:

• Refrigerator unable to sufficiently cool interior temperatures
• Fan inoperative or making grinding/rubbing noises
• Shroud cracked, damaged or improperly enclosing the fan
• Reduced condenser coil performance from inadequate ventilation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This condenser support is the replacement mounting bracket that secures the refrigerator condenser coil and helps keep the unit stable behind the lower access panel. It restores proper condenser positioning for reliable cooling performance. What it does:

• Holds the condenser coil in the correct position to prevent contact with other components
• Reduces vibration and rattling from a loose condenser assembly
• Helps maintain proper airflow behind the cabinet when installed correctly
• Can prevent wear to nearby components caused by a displaced condenser

• Disconnect power before servicing and work with the appliance unplugged to avoid shock
• Access typically requires removing the refrigerator's lower access panel or rear service panel
• Basic hand tools are usually sufficient; keep fasteners for reuse unless damaged
• Handle edges carefully; inspect surrounding parts and wiring before reassembly
