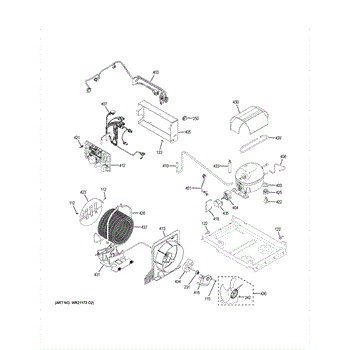

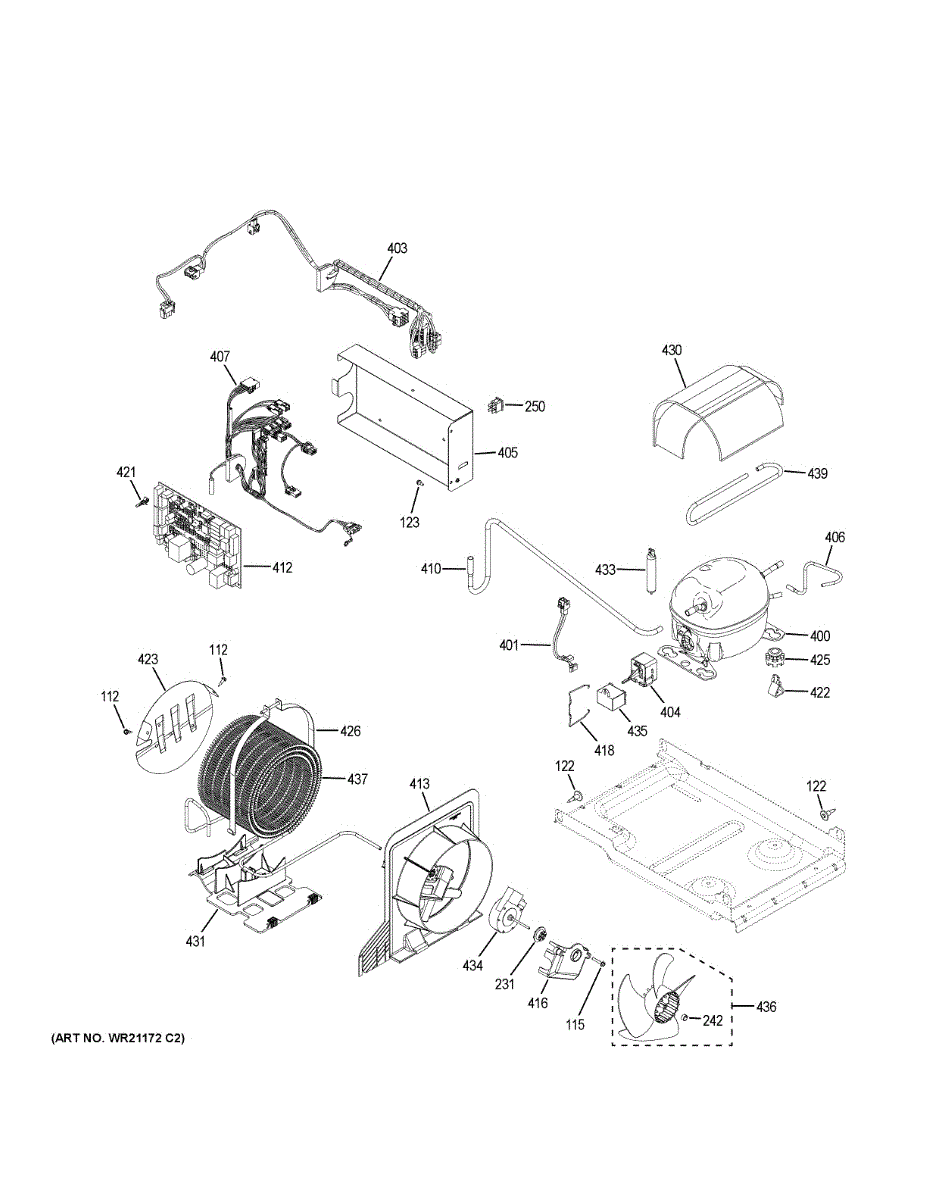

Parts for Ge ZIR240NPKAII: Machine Compartment Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

Size: 8-32 t. Includes 12 screws.

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This master light switch kit replaces the main oven light switch assembly so the oven light turns on and off reliably. Designed for direct-fit replacement to restore normal oven lighting control. What it does:

• Replaces the oven's master light switch assembly that controls interior lighting
• Restores the ability to turn the oven/cabinet light on and off
• Helps eliminate flickering, intermittent operation, or complete light failure
• Works with existing wiring and mounting points for a straightforward swap

• One master light switch kit (assembly) as shown

• Disconnect power to the appliance before starting any work
• Basic hand tools required; follow OEM wiring and grounding instructions
• Verify proper operation after installation before returning appliance to service

This main control board assembly replaces the refrigerator's primary electronic control module to restore normal control and operation. It manages user interface signals and coordinates compressor, fans and defrost functions for reliable cooling performance. What it does:

• Receives input from the control panel and sends commands to compressor, fans and defrost components
• Controls timing for cooling cycles and defrost events to help maintain set temperatures
• Can stop or reset refrigerator functions when the original board fails, helping address no-power or unresponsive-control symptoms
• Can resolve symptoms such as unresponsive display/controls, intermittent cooling, or fans/compressor not running when caused by a failed board

• One main control board assembly (electronic control) as shown

• Disconnect appliance power before starting and do not work on energized circuits
• Handle the board by edges and avoid static discharge; ground yourself or use an ESD strap
• Verify connector orientation and seating; match part number to the original board before installation

This condenser fan housing is the molded shroud that positions and protects the refrigerator's condenser fan to ensure correct airflow and component clearance. It helps the fan direct air across the condenser coil for efficient cooling. What it does:

• Secures and centers the condenser fan and motor to maintain proper airflow through the condenser coil
• Directs airflow to improve heat dissipation and overall cooling performance
• Helps reduce abnormal fan noise caused by rubbing or misalignment
• Prevents debris from contacting the fan and condenser components

• Disconnect power to the appliance before beginning any repair
• Remove the rear access panel or lower toe grille to access the condenser area; follow OEM service instructions
• Handle the housing carefully—edges and mounting tabs can be sharp or brittle on older units
• Inspect the fan blade and motor when installing; replace any damaged components and reuse OEM hardware as applicable

A small plastic standoff that secures and insulates the refrigerator main control board from the chassis to prevent shorts and keep the board stable. Simple, serviceable replacement for damaged or missing mounting posts. What it does:

• Positions and supports the main control board to prevent movement and vibration
• Provides electrical insulation between the board and metal chassis to reduce short risk
• Restores proper board alignment so connectors and mounting points seat correctly
• Commonly replaced when the board is loose, cracked, or the original standoff is missing

• One main board standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Remove protective panels to access the control board; handle the board by edges
• Press or snap the standoff into the chassis mounting hole, then seat the board onto the post
• Do not force or overtighten fasteners; replace any damaged clips or screws as needed

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

This condenser strap assembly secures the condenser coil to the refrigerator chassis, helping keep the coil stable and reduce vibration or contact with nearby components during operation. It's a simple replacement that restores proper condenser mounting. What it does:

• Holds the condenser coil firmly in place to prevent movement or rubbing against the cabinet
• Helps reduce rattling or vibration noises caused by a loose condenser
• Prevents wear or damage to the condenser from excessive movement
• Supports proper airflow clearance by maintaining correct condenser positioning

• Disconnect power to the appliance before beginning any repair.
• Use basic hand tools; support the condenser when removing and installing the strap to avoid bending the coil.
• Inspect surrounding components and fasteners; replace any damaged clips or screws as needed.

This condenser support is the replacement mounting bracket that secures the refrigerator condenser coil and helps keep the unit stable behind the lower access panel. It restores proper condenser positioning for reliable cooling performance. What it does:

• Holds the condenser coil in the correct position to prevent contact with other components
• Reduces vibration and rattling from a loose condenser assembly
• Helps maintain proper airflow behind the cabinet when installed correctly
• Can prevent wear to nearby components caused by a displaced condenser

• Disconnect power before servicing and work with the appliance unplugged to avoid shock
• Access typically requires removing the refrigerator's lower access panel or rear service panel
• Basic hand tools are usually sufficient; keep fasteners for reuse unless damaged
• Handle edges carefully; inspect surrounding parts and wiring before reassembly

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
