Parts for Lg LSC22991ST/01: Machine Compartment Parts

This is a replacement drain tube assembly that directs water from the appliance tub to the drain pump or household drain, helping restore proper water removal and reduce leaks. It's a direct-fit service part used in the drainage system. What it does:

• Channels wastewater away from the tub to the drain pump or drain line
• Helps prevent pooling or slow draining caused by a damaged or disconnected tube
• Restores a sealed path to reduce leaks at the tub-to-pump connection
• Suitable when the original drain tube is cracked, split, collapsed, or leaking

• One drain tube assembly as shown

• Disconnect power and water before beginning any repair to avoid shock or flooding
• Inspect and clean mating surfaces and clamps; replace clamps if corroded or damaged
• Ensure correct routing and secure connections to prevent kinks and leaks

This drawer tray assembly replaces a damaged or worn refrigerator drawer tray to restore secure storage and smooth operation. It provides a molded support surface for holding items and helps the drawer slide and close correctly. What it does:

• Supports items stored in the refrigerator drawer and maintains proper spacing
• Restores smooth sliding and alignment when original tray is cracked or warped
• Prevents items from falling through or shifting due to broken tray walls or mounts
• Helps maintain an even surface that improves drawer seating and closure

• One drawer tray assembly

• Unplug the appliance or disconnect power before starting any repairs
• Remove the drawer per your model's service instructions to access and replace the tray
• Handle the replacement carefully to avoid scratching interior surfaces; align mounts before seating
• If any rails, clips, or screws are damaged, inspect and replace those components separately

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.

This bracket motor secures and supports the appliance motor assembly, restoring proper alignment and stable operation. Replacing a worn or broken bracket helps reduce noise and prevents motor misalignment that can cause poor performance. What it does:

• Holds the motor assembly in the correct position so the motor runs smoothly and stays aligned.
• Prevents excess vibration and rattling caused by a damaged or cracked bracket.
• Helps stop intermittent motor movement or binding that can affect operation.
• Reduces risk of additional wear to the motor or connected components due to misalignment.

• One bracket motor

• Disconnect power to the appliance before beginning any work.
• Replacement typically requires removing access panels and supporting the motor during removal/installation.
• Inspect surrounding fasteners and mounting surfaces; replace any damaged hardware.

This replacement fan assembly restores airflow in your appliance's cooling system to help maintain proper temperature and circulation. It's a direct-fit replacement designed to stop airflow-related issues and reduce noise from a failing fan. What it does:

• Circulates air across evaporator/condenser coils to support proper cooling and defrost cycles
• Replaces a worn or failed fan that can cause warm compartments or poor cooling
• Helps eliminate unusual humming, grinding, or rattling caused by a damaged fan blade or motor
• Supports even temperature distribution and can reduce frost buildup when fan operation is restored

• Disconnect power before starting; work on powered appliances can cause shock or injury
• Handle the fan blade carefully to avoid bending blades or damaging the motor
• Secure mounting fasteners to prevent vibration

This refrigerator shelf assembly replaces a cracked, chipped, or worn shelf to restore stable storage and proper airflow. The tempered glass shelf with front trim gives a clean, durable surface for everyday food storage. What it does

• Provides a stable, level surface for jars, containers, and leftovers
• Restores proper spacing and airflow inside the refrigerator when a shelf is missing or damaged
• Replaces cracked, chipped, or sagging glass that risks spills or food contact
• Helps keep contents organized and easier to reach

• Remove food and support surrounding shelves before replacing to avoid spills or damage
• Lift shelf straight out and set the new shelf into the same track or support rails until it seats securely
• Handle tempered glass with care; use gloves and avoid impact

This ferrite magnet is a replacement magnetic element used in compatible appliance assemblies to help secure components and maintain proper alignment. It restores magnetic retention and reduces shifting or misalignment during operation. What it does:

• Provides magnetic retention for panels, assemblies or components that rely on ferrite magnets
• Helps maintain proper alignment and secure closure where magnets are used
• Can reduce noise and vibration related to loose magnetic components
• Useful when a brittle, cracked or weak magnet no longer holds parts in place

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Handle the magnet carefully; ferrite material is brittle and can chip or shatter if dropped or struck
• Keep magnets away from sensitive electronics and credit cards; avoid pinching fingers between strong magnets
• If the original magnet is bonded or embedded, some adhesive or light trim may be needed for proper fit.

This rubber cap is a small protective bumper that cushions and covers exposed edges or fasteners on the appliance, helping reduce rattles and prevent cosmetic damage. It restores the finished look and protects contact points from wear. What it does:

• Covers exposed screw heads or trim edges to prevent scratching and snagging
• Cushions panels and components to reduce vibration noise and rattling
• Helps keep dirt and moisture away from the covered area
• Restores a finished appearance after a lost or damaged bumper

• Replace only with the exact part number to ensure proper fit
• Clean mounting area before installing for best adhesion/fit
• Usually installs by pressing or slipping over the post/edge—no specialty tools required
• Disconnect power to the appliance before servicing

This upper hinge assembly secures and guides the refrigerator door at the top hinge point to keep the door aligned and closing smoothly. It replaces a worn or damaged hinge to restore proper door movement and fit. What it does:

• Supports the top of the refrigerator door and provides a pivot point for opening and closing
• Helps keep the door aligned to maintain an even seal and prevent gaps
• Resolves symptoms like door sagging, uneven gaps, rubbing, or noisy operation at the top hinge
• Works with the existing hinge pin and mounting location to restore smooth articulation

• Disconnect power to the appliance and remove food from the door before starting
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use original mounting screws/fasteners and tighten to secure alignment; check door operation and seals after installation

This replacement spring restores proper tension to a microwave oven door hinge so the door opens and closes smoothly and holds position. It's a direct-fit part that helps eliminate sagging or uneven door movement. What it does

• Replaces a worn or broken hinge spring to restore proper door tension and alignment
• Helps prevent door from dropping open or not staying closed securely
• Supports smooth, controlled door opening and closing motions
• Addresses symptoms such as a sagging door, uneven closing, or loose-feeling hinge

• One replacement hinge spring (quantity: 1)

• Disconnect power to the appliance before attempting any service to avoid electrical shock
• Access may require removing the outer door panel or control panel; follow OEM disassembly instructions
• Handle the spring carefully—springs can be under tension and may release suddenly

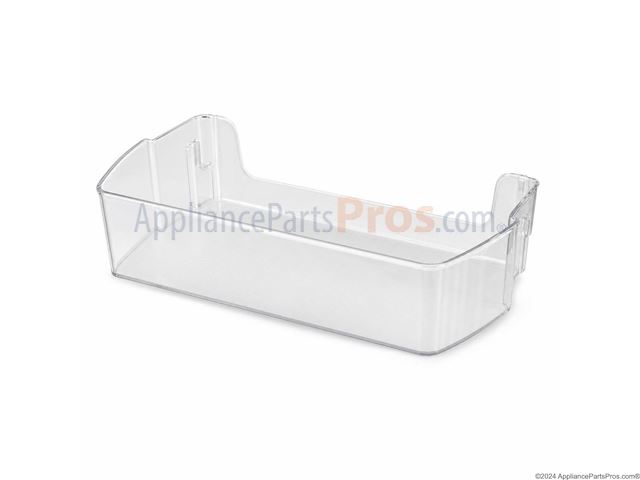

This Door Basket Assembly is the replacement door bin that holds bottles, condiments and other items on the appliance door, restoring secure storage and organization. It replaces cracked or damaged door bins to keep items from shifting or falling. What it does:

• Provides a molded shelf on the door to hold bottles, jars and small containers
• Replaces cracked, broken or warped door storage that no longer secures items
• Stops items from shifting or falling when opening or closing the door
• Restores original-fit storage layout and usable door space

• One Door Basket Assembly

• Disconnect power (or unplug fridge) before starting any repair
• Remove existing basket by lifting or releasing retention clips; install new basket by aligning and snapping into place
• Use common hand tools if needed; avoid excessive force to prevent damage to the door liner
• If the door liner or mounting clips are damaged, inspect and replace those parts as required

This Door Basket Assembly is the replacement door bin that holds bottles, condiments and other items on the appliance door, restoring secure storage and organization. It replaces cracked or damaged door bins to keep items from shifting or falling. What it does:

• Provides a molded shelf on the door to hold bottles, jars and small containers
• Replaces cracked, broken or warped door storage that no longer secures items
• Stops items from shifting or falling when opening or closing the door
• Restores original-fit storage layout and usable door space

• One Door Basket Assembly

• Disconnect power (or unplug fridge) before starting any repair
• Remove existing basket by lifting or releasing retention clips; install new basket by aligning and snapping into place
• Use common hand tools if needed; avoid excessive force to prevent damage to the door liner
• If the door liner or mounting clips are damaged, inspect and replace those parts as required

This door basket is the replacement storage bin that mounts inside the appliance door to hold bottles, jars and small items for easy access. It restores lost or cracked door storage and helps keep contents secure. What it does:

• Replaces a cracked, broken or missing door storage bin so items stay organized in the door
• Secures bottles, jars and small containers during normal use
• Restores the original storage capacity and accessibility of the door
• Helps prevent items from falling out when opening or closing the door

• Remove door shelves or inner door panel to gain access
• Handle edges and clips carefully to avoid breaking the plastic mounting points
• Disconnect power and follow OEM safety instructions when removing the door or door trim

Restore secure door storage with this refrigerator door basket. It replaces a cracked, loose, or missing bin so items stay organized and in place when you open and close the door—bringing back the usable space you rely on.

• Attaches to the inner door liner rails to provide shelf-style storage
• Helps keep bottles, jars, and condiments organized and accessible
• Replace if the bin is cracked, tabs are broken, it won't stay seated, or it's missing
• Restores original door storage capacity

• Disconnect power and remove items from the door before replacing
• Lift the old bin up and out of the door liner channels
• Align the new bin with the channels and press down until it snaps securely
• Verify the bin is fully seated before loading items

This slide rail guides a refrigerator or freezer drawer so it opens and closes smoothly and stays aligned. Replaces a worn or bent rail to restore stable drawer movement and prevent sticking or sagging. What it does

• Supports and guides the drawer along the cabinet track for smooth opening and closing
• Restores proper drawer alignment and prevents binding or catching
• Replaces damaged, bent, or worn slider surfaces that cause noise or uneven movement
• Works as part of the drawer slide assembly to maintain load support

• One slide rail (single rail as shown)

• Inspect both left and right rails and replace matched pairs when both are worn for best performance
• Power off and empty the drawer before removing/installing rails to avoid injury or damage
• Retain all original fasteners; use only manufacturer-recommended screws if replacements are needed

A replacement bucket frame that supports and secures the removable bucket assembly, restoring correct alignment and stable operation. Fits into the bucket housing to keep the bin seated and prevent wobble or rattle. What it does:

• Provides structural support for the removable bucket assembly so the bin stays properly positioned.
• Prevents bucket misalignment that can cause noise, scraping, or difficulty removing the bucket.
• Restores a secure fit to reduce movement that can lead to spills or uneven wear.
• Works with the existing bucket and housing; matches OEM fit and function.

• One bucket frame support bracket

• Disconnect power or unplug the appliance before servicing.
• Removal/installation typically requires basic hand tools (screwdriver or nut driver); handle plastic tabs carefully to avoid breakage.
• Align tabs and mounting points before securing to avoid cracking the frame.

This replacement home bar case is the removable door shelf that holds small bottles and items in the refrigerator's home bar compartment. It restores secure storage and keeps the door organized for easy access. What it does:

• Replaces a cracked, broken or misshapen home bar shelf that won't hold items securely
• Restores proper fit and alignment in the door's home bar compartment
• Helps eliminate rattling or items falling when the door opens and closes
• Provides the same mounting points and shape as the original for a direct fit

• Remove all contents from the home bar area before replacing the case
• Typically installs by snapping into the existing door mounts; inspect clips for damage
• If mounting clips are damaged, replace clips before installing the new case
• Unplug the appliance or switch off power if required for safe access to the door area

This upper hinge assembly secures and guides the refrigerator's top door, restoring proper door alignment and smooth opening/closing. Replaces a worn or damaged hinge to help stop sagging, rubbing, or uneven sealing. What it does:

• Supports the top door and attaches it to the cabinet for stable operation
• Guides door movement so the door opens and closes smoothly
• Restores proper door alignment to improve seal and reduce rattling
• Addresses symptoms like a drooping or misaligned door, noisy hinge action, or doors that don't latch evenly

• Disconnect power (unplug the appliance) before starting any repair
• Support the door weight before removing the hinge to avoid dropping or damaging the door
• Basic hand tools typically required; follow OEM diagram for correct fastener locations and orientation

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

This cap assembly seals and directs the appliance duct outlet to help contain airflow and keep lint and debris from entering the cabinet or surrounding area. It's a direct-fit service replacement used on compatible LG dryer and laundry venting components. What it does:

• Covers and directs exhaust air from the appliance duct to the external vent
• Helps reduce lint and debris buildup inside the cabinet and duct opening
• Restores proper airflow path when a damaged or missing cap causes restricted venting
• Reduces air leaks and drafts around the duct connection
• Can eliminate rattling or vibration caused by a loose or broken duct cap

• One cap assembly

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the dryer or access panel as needed to reach the duct outlet; keep work area ventilated
• Secure with clamps or fasteners supplied by the appliance or local code
• Wear gloves and eye protection; do not operate the appliance without a properly installed vent cap

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This condenser assembly is the factory-style replacement condenser wiring and support used in compatible LG refrigerators to restore proper condenser connections and securement. It helps maintain reliable cooling system electrical routing and component support. What it does:

• Provides the correct wire routing and connections for the refrigerator condenser area
• Secures condenser components in place to prevent vibration and wear
• Restores proper electrical paths for condenser-related circuits to help the compressor/fan operate as intended
• Helps address symptoms like intermittent cooling, unusual vibration, or loose wiring in the condenser compartment

• One condenser assembly as shown

• Disconnect power and follow manufacturer safety procedures before starting work
• Inspect surrounding components (fan, compressor mounts, tubing) while replacing this assembly

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This fan guide is the molded support bracket that positions and protects the refrigerator/freezer evaporator or condenser fan blade, helping maintain proper airflow and reduce noise from the fan assembly. Designed to fit into the fan housing area. What it does:

• Holds the fan blade and motor assembly securely in the correct position for consistent airflow
• Directs airflow across the evaporator or condenser for efficient cooling performance
• Helps prevent fan blade contact with other components, reducing rubbing noise and wear
• Keeps debris away from the fan to protect the motor and prolong fan life

• One fan guide/support bracket

• Disconnect power to the appliance before inspecting or replacing the part
• Access may require removing interior panels or the rear access panel depending on model
• Verify correct orientation and secure mounting; do not force the part into place
• Test fan operation after reassembly to confirm proper fit and clearance

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Condenser Fan Blade is an OEM replacement part for LG refrigerators. The condenser fan motor blade is located on the condenser fan motor which is usually located on or near the compressor at the back of the refrigerator. This part is responsible for circulating air over the condenser coils. This helps to remove heat from the condenser and evaporate water in the defrost drain pan.

Causes of blade failure can include normal wear over extended runtime, accumulated dirt and dust impeding airflow, or physical impact damage.

Symptoms of a faulty condenser fan blade include:

• Refrigerator fails to properly cool and maintain temperatures
• Condenser unit runs excessively as heat fails to dispel
• Abnormal noises such as grinding or squealing emanate from the condenser area

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Sensor Assembly is an OEM replacement part for LG refrigerators. It houses several critical sensors that monitor temperatures and humidity levels inside the refrigerator.

This sensor assembly plays a vital role in temperature management by providing real-time sensor data to the control board. The control board uses this input information to regulate cooling and defrosting cycles appropriately based on detected conditions.

Causes of a bad sensor assembly can include sensor failures due to prolonged exposure to cold temperatures and humidity. Symptoms of a bad sensor assembly include:

• Inaccurate temperature readings
• Improper cooling and freezing performances
• Frequent or prolonged defrost cycles
• Error codes relating to internal sensors

Replacing the sensor assembly with this genuine OEM LG part restores temperature and humidity monitoring capabilities. It is also compatible with Sears/Kenmore refrigerator models.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

This DC motor drives the fan or other moving components inside your appliance, providing the airflow and motion required for proper operation. Replacing a weak, seized, or noisy motor restores performance and helps prevent additional wear on connected parts.

• Converts DC electrical power into rotation to turn an attached fan blade or mechanism
• Supports proper airflow/circulation and stable operation inside the unit
• Failure signs include no movement, intermittent or slow operation, unusual humming/squealing/grinding, vibration, or related error codes
• A failed motor can contribute to poor airflow/cooling or overheating

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Photograph wiring and match connector orientation during reassembly; do not force terminals
• Transfer any brackets, grommets, or fan blade from the original motor; avoid bending the shaft
• After reassembly, restore power and test for smooth, quiet operation

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This sheath-style defrost heater warms the evaporator during the automatic defrost cycle to clear frost and keep air moving. Replacing a failed heater helps stop ice buildup on the evaporator and restores stable refrigerator temperatures.

• Heats the evaporator coil to melt accumulated frost/ice during defrost
• Helps maintain airflow for consistent cooling performance
• Typical failure symptoms include heavy frost on the back panel/evaporator, weak airflow, warmer-than-normal temperatures, or fan noise from ice contact
• Can contribute to repeat icing shortly after a manual defrost if open or damaged

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically behind the freezer/evaporator cover; fully defrost any ice before removal
• Reuse existing brackets, clips, or insulation as required; make secure electrical connections
• Do not kink or sharply bend the element; inspect related defrost components

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It automatically produces and dispenses batches of ice through the ice bucket and into the storage bin. Proper ice production is crucial for cold beverages and food preservation.

Causes of a bad ice maker assembly can be failures in the electronic control board, freezing components or water supply system. Regular filter changes help prevent excess mineral buildup.

Symptoms of a bad ice maker assembly include:

• No ice production or inconsistent amounts
• Ice cubes that are malformed, fused together or absorbed cold liquid
• Leaking or flooding from the ice maker area
• Error codes shown on the refrigerator display

This genuine LG OEM replacement part is also compatible with some Kenmore models.

This water valve assembly controls water flow into the appliance's dispenser and ice-making system, restoring water delivery when the original valve fails. It replaces a worn or leaking inlet valve to help stop leaks and restore filling. What it does:

• Opens and closes to allow water into the dispenser and/or ice maker when the unit calls for water.
• Commonly used when the dispenser or ice maker won't fill, fills slowly, or water is leaking from the valve area.
• Helps stop intermittent water flow caused by a stuck or damaged valve.
• Works with the appliance's existing water supply and tubing to restore normal operation.

• One water valve assembly as shown.

• Shut off water supply and disconnect power before starting any repair.
• Replace only with the exact valve specified for your model; secure fittings and wiring per OEM routing.
• After installation, turn water and power back on and check carefully for leaks.

This connector tube is a molded inline water connector used on select refrigerators to join water lines and help deliver water to the dispenser or ice maker. It restores a secure path for water flow and helps stop leaks. What it does

• Joins two sections of the refrigerator water line to maintain continuous water flow.
• Creates a sealed connection to prevent dripping or leaking at a damaged or worn joint.
• Helps restore water delivery to the ice maker or dispenser when a broken connector is the cause.
• Compatible with the refrigeration plumbing layout where a short molded connector is required.

• One connector tube as shown.

• Turn off the water supply and unplug the appliance before starting work.
• Inspect tubing ends and fittings; trim damaged tubing and use correct push-fit or compression fittings as required.
• Tighten connections securely but avoid overtightening plastic fittings; check for leaks after restoring water.

Replacement tube connector (mechanical) that secures and routes tubing in compatible LG appliances, helping restore proper fluid flow and reduce leaks from loose or damaged connections. A literal OEM-style connector used where a secure tube-to-component join is required. What it does:

• Joins and secures tubing to appliance components or chassis to maintain a stable connection
• Keeps tubing aligned to prevent kinks or dislodging that can interrupt flow
• Commonly replaced when you see dripping, visible leaks, loose tubing, or poor water flow
• Fits the original mounting interface for reliable mechanical retention

• Disconnect power and shut off the water supply before starting any repairs
• Inspect tubing and nearby fittings for damage; replace any compromised tubing before installing the connector
• Seat the connector fully and secure per the appliance's service instructions; avoid overtightening which can damage tubing
• After installation, restore water and power and check the connection for leaks during a short test cycle

This water filter assembly secures the refrigerator's replaceable water filter and routes water to the dispenser and ice maker. Replacing a cracked or leaking assembly restores proper flow and helps ensure a tight, reliable seal at the filter connection. What it does:

• Holds and seals the replaceable water filter cartridge
• Channels inlet water through the filter to the dispenser and ice maker
• Helps prevent leaks at the filter connection and housing
• Common symptoms: leaks around the filter area, low or no water to dispenser/ice maker, filter won't seat or stay in place, visible cracks on the housing

• 1 water filter assembly

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure by dispensing water; place a towel to catch residual water
• Transfer fittings/lines carefully and seat connections fully; do not overtighten
• Restore water, check for leaks, and run water to purge air from the system

The Water Filter LT800P is an OEM part for LG refrigerators. This filter is designed to remove contaminants from the water supply, ensuring clean and fresh-tasting water and ice.

Causes of a bad water filter can include extended use beyond its recommended lifespan, exposure to high levels of contaminants, or damage to the filter itself.

Symptoms of a bad Water Filter LT800P include:

• Unpleasant taste or odor in the water or ice
• Reduced water flow from the dispenser
• Indicator light signaling the need for replacement
• Visible sediment or particles in the water

This OEM LG part is also compatible with Sears/Kenmore.

This cover tube is a molded protective housing that shields internal components and wiring from wear, heat, and debris. It helps maintain safe operation and prevents rubbing or chafing that can lead to damage. What it does:

• Covers and protects internal wiring, hoses or assemblies from contact and abrasion
• Helps direct airflow and keeps debris away from sensitive parts
• Reduces noise caused by rubbing or loose components
• Preserves component alignment and prevents premature wear

• Disconnect power to the appliance before beginning any repair.
• Installation requires partial disassembly of the appliance; keep track of screws and clips.
• Use OEM replacement and follow the service manual for correct orientation and torque of fasteners.
• If you see damaged wiring or other compromised parts, replace or repair those items before reinstalling the cover tube.
