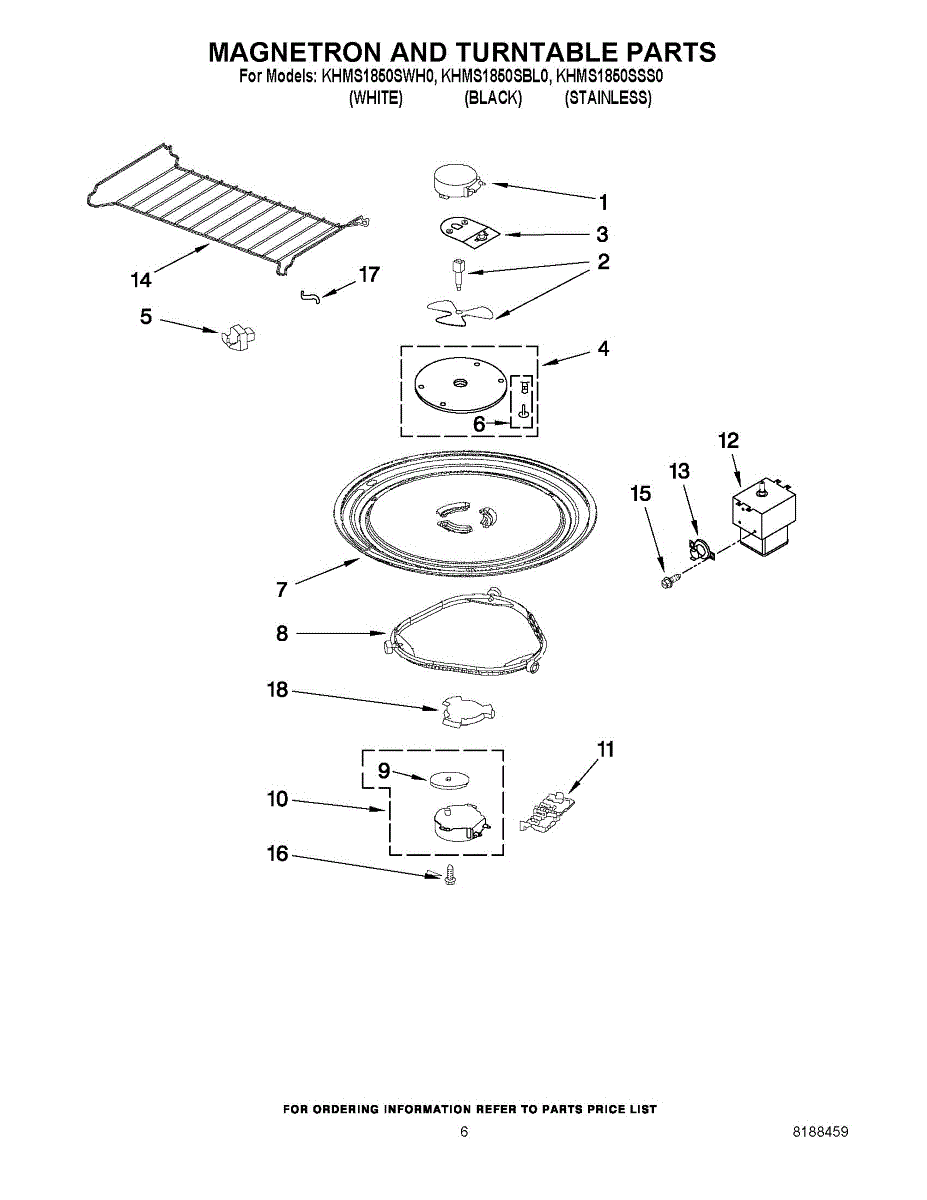

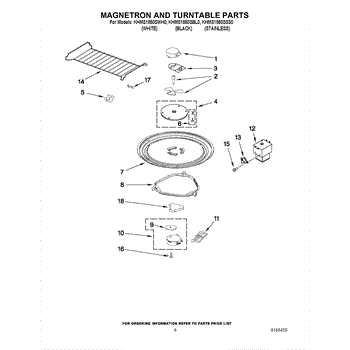

Parts for Kitchenaid KHMS1850SBL0: 05 - Magnetron And Turntable Parts

Includes new motor, stirrer cover, plastic rivets and hardware to install upgrade kit.

Comes with 4 supports. Color: chrome.

*** Note: This glass tray has 3 partial-circles to engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that glass tray use part# W11367904. ***

The Cooking Tray is an OEM part for Whirlpool microwaves. This glass tray sits on the turntable support and rotates to ensure that food heats evenly throughout the cooking cycle. It is designed to fit securely within the microwave, providing a stable platform for various dishes and containers.

Over time, the cooking tray can become damaged due to regular use, drops, or exposure to extreme temperatures. If the tray is cracked or broken, it can lead to uneven cooking and potential safety hazards.

Symptoms of a bad cooking tray include:

• Visible cracks or chips on the glass surface
• The tray not rotating properly
• Uneven heating or cooking of food
• The tray wobbling or not fitting securely on the turntable support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ring-Turn is an OEM part for Whirlpool microwaves. Designed with precision, this component plays a crucial role in the microwave's turntable system, supporting the glass plate and ensuring it rotates smoothly during operation. The ring-turn's seamless integration with the microwave design allows for the even distribution of microwave energy, which is essential for consistent cooking and heating results.

Causes of a bad Turntable Ring can include cracks or breaks developing from years of use rotating the turntable back and forth under high heat levels.

Symptoms of a bad Ring-Turn include:

• The microwave turntable not rotating properly
• Unusual noises during operation, indicating a misalignment or damage
• The glass plate not sitting flat or slipping during use
• Uneven or partially cooked food, resulting from improper rotation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Comes with 4 supports. Color: chrome.

This microwave turntable motor drives the glass tray to rotate food for more even heating. Replacing the motor restores smooth, consistent rotation and dependable cooking performance.

• Drives the turntable during cook/defrost cycles for more uniform heating
• Turntable won't turn or only turns intermittently
• Jerky movement or tray requires a push to start
• Humming, grinding, or clicking from beneath the tray area

• Disconnect power by unplugging the microwave or switching off the breaker before servicing; microwaves contain high-voltage components that can retain a charge
• Remove the glass tray and support ring before accessing the motor
• Access is typically from the bottom panel; note wire connections and motor orientation before removal
• After installation, ensure the coupler engages properly and the tray spins freely

This magnetron generates the microwave energy that cooks food inside a microwave oven, restoring heating performance when the original tube fails. Replaces a failed magnetron to return proper cooking and reheating. What it does:

• Converts electrical power into microwave energy used to heat food.
• Restores normal cooking when the oven no longer heats or has weak heating.
• Resolves loud humming, sparking, or intermittent heating caused by a failing tube.
• Works with the oven's high-voltage circuitry and waveguide to distribute energy into the cavity.

• Disconnect power and unplug the appliance before service; high-voltage components can retain a dangerous charge.
• Discharge the high-voltage capacitor before touching the magnetron or associated wiring.
• Inspect and replace any damaged waveguide covers or mounting hardware for safe operation.

A replacement mounting screw used to secure appliance panels and components. This OEM-style screw helps restore proper fit and reduces rattling or loose parts for a finished, secure assembly. What it does:

• Fastens control panels, brackets, or interior trim to the appliance frame
• Restores proper alignment when an original screw is missing or stripped
• Stops rattling or vibration caused by loose fasteners
• Matches OEM fit for reliable fastening when the correct screw is used

• Turn power off at the breaker before servicing electrical appliances
• Match screw length, head style and thread to the removed fastener before installation
• Use the correct screwdriver or bit to avoid cam-out or head damage
• Do not overtighten; snug until secure to avoid stripping threads or cracking components
