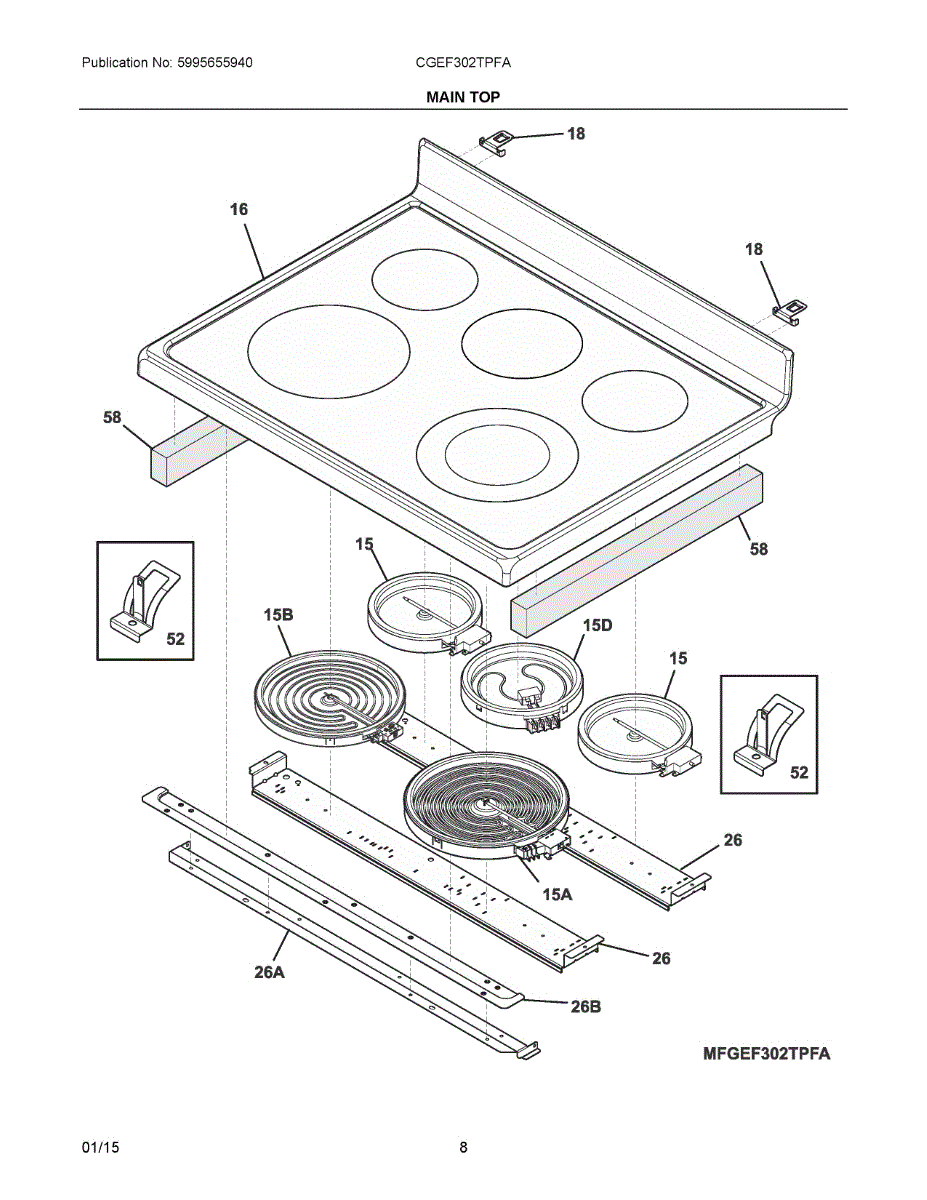

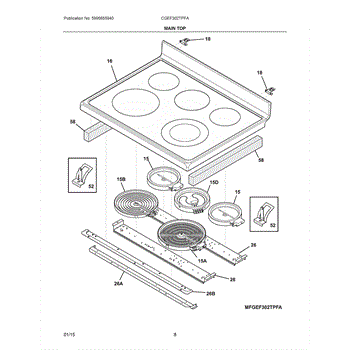

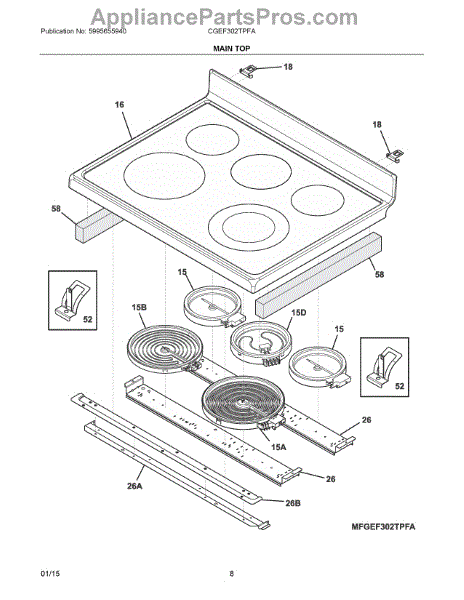

Parts for Electrolux CGEF302TPFA: 04 - Main Top Parts

This 100W radiant element replaces a failed warming element to restore gentle, even heat in the appliance's warmer/drawer. It delivers low-profile radiant heat for keeping food warm between cooking and serving. What it does:

• Radiates low-level heat to maintain food temperature in the warmer or drawer
• Replaces a broken or non-heating warmer element
• Common symptom: warmer drawer not holding temperature or not heating
• Works as the heating element that sits under the warming surface to provide consistent warmth

• Disconnect power to the appliance before attempting service
• Inspect mounting and wiring; replace any damaged connectors or mounting hardware as needed
• Handle the element carefully to avoid bending or damaging the heating surface

The Surface Element is an OEM part for Frigidaire electric ranges. It is the heating element located on the cooktop, responsible for providing the heat necessary for cooking. This component is essential for the proper functioning of your stove, ensuring consistent and reliable heating for various cooking tasks.

Causes of a bad surface element can include wear and tear from regular use, damage due to spills or overheating, or electrical failures such as a short circuit. A faulty surface element can result in uneven cooking or complete failure to heat.

Symptoms of a bad surface element include:

• Element not heating up
• Uneven heating or hot spots on the element
• Visible damage such as burns or cracks
• Element cycling on and off erratically

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM replacement part for Frigidaire electric ranges. This component is located on the cooktop surface and features two heating coils in one unit, one measuring 6 inches in diameter and the other 9 inches. It allows for precise control of cooking temperatures, accommodating various pot and pan sizes for more efficient cooking.

Causes of a bad dual element can include prolonged use that leads to wear and tear, electrical surges that can damage the heating element, or physical damage due to impact or mishandling. Over time, these issues can result in the element failing to heat properly or not working at all.

Symptoms of a bad dual element include:

• The element not heating up or only partially heating
• Inconsistent or fluctuating temperatures
• Visible damage, such as burns or breaks in the element
• The element not responding to temperature controls
• Sparking or unusual noises when the element is in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This mounting bracket secures internal components and panels so the appliance stays stable and aligned. Replacing a worn or broken bracket restores proper support and reduces rattling or misalignment. What it does:

• Provides structural support for internal panels, assemblies, or trim
• Holds components in correct position to prevent rubbing or vibration
• Stops movement that can cause noise, wear, or improper door/panel alignment
• Helps maintain safe operation by keeping parts securely fastened

• Disconnect power before starting any repair to avoid electrical shock
• Use basic hand tools; keep fasteners and orientation noted for reassembly
• Inspect surrounding clips, screws, and mounting points; replace any damaged hardware

This replacement part is a black element mounting clip used in ranges or wall ovens. This clip is used for surface elements on electric ranges and ovens. The clip itself connects the surface of the element to the support bracket which allows the stove to heat up. The user might need a new clip or clips if the heating element on the stove is loose, if the heating element is completely detached, or if the clip itself is bent or broken. This clip is black and made of sturdy metal that can withstand heat as well as strain on the clip itself. Installation of this clip is very simple as it just requires replacing the old one with a new one and making sure it is secure. Pliers might be required if the old clip is bent or stuck near or on the heating element. There are no special tools needed for this repair. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from Frigidaire and other brands like Electrolux, Gibson, Kelvinator, Crosley, Westinghouse, and more.

Size: 6-20 x 0.312 inch.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
