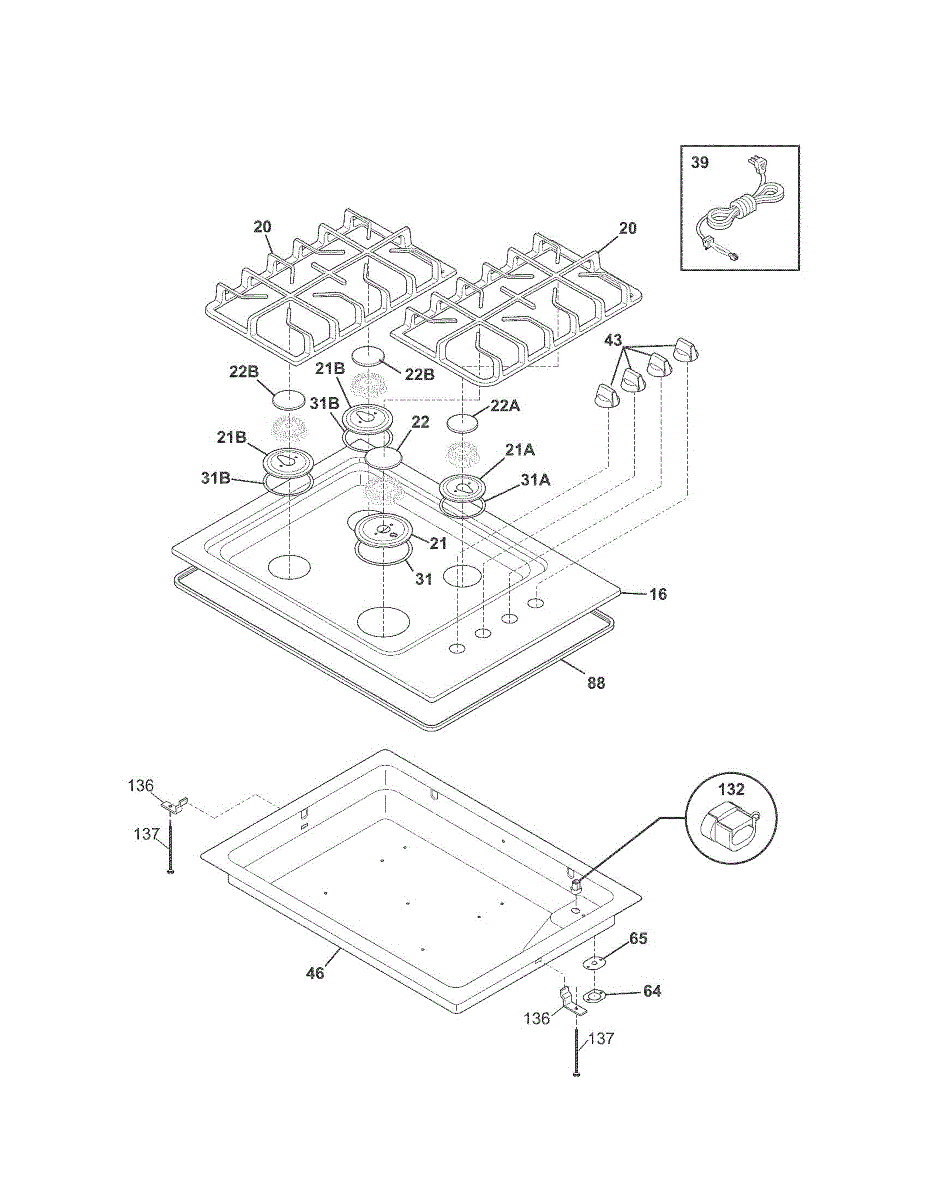

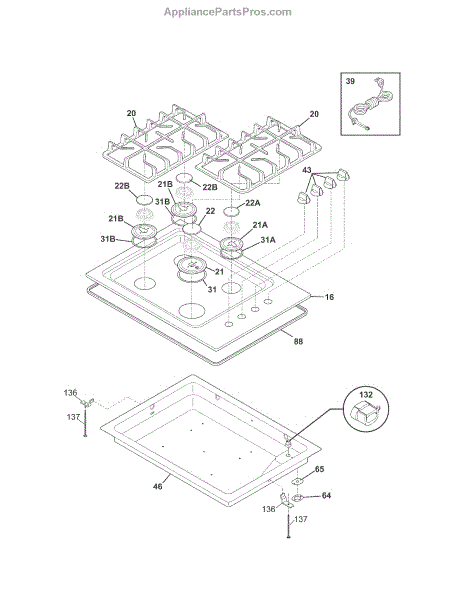

Parts for Kenmore 790.32423901 (79032423901, 790 32423901): Main Top Parts

Upper cooktop panel that provides a finished surface for burners. Replaces cracked, dented, or badly scratched cooktop surfaces while containing spills.

The burner skirt surrounds and supports the high-output burner assembly while directing proper airflow for efficient combustion. Positioned around the 14,000 BTU burner on the cooktop, it should be replaced if damaged, warped, or if it causes uneven heating or poor flame distribution.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

Burner cap sits on top of the gas burner assembly to distribute flame evenly. Replace if cracked, chipped, discolored, or missing for proper cooking.

Seals around cooktop burner to prevent spills from entering burner housing and centers burner for even heating. Replace when hardened or cracked.

Replacement gasket that seals around surface burners to prevent spills from entering the cooktop cavity. Replace when hardened, cracked, or torn. Confirm fit with your model number before ordering.

Seals the gap between burner and cooktop to prevent spills from leaking underneath. Replace when seal becomes discolored, cracked, or loses flexibility.

Replacement power cord for cooktops and ranges. Connects appliance to wall outlet. Install when original cord is damaged, cut, frayed, or missing.

This is a flexible gasket that seals the oven door to the cabinet, preventing heat from escaping during cooking. It fits around the perimeter of the oven opening and helps maintain consistent internal temperatures. Replace this seal if you notice excessive heat radiating from the oven door, uneven cooking results, or if the gasket is visibly torn, hardened, or no longer making full contact with the door.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This is a metal support bracket that helps secure and stabilize the firebox or internal cavity structure of the range or cooktop. It provides structural reinforcement to keep components properly aligned during operation. Replace this bracket if it is bent, broken, or corroded, which can cause misalignment of internal parts or rattling noises during use.

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.

Owner's manual for your cooktop. Provides installation instructions, operating guidelines, maintenance tips, and troubleshooting information.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.
