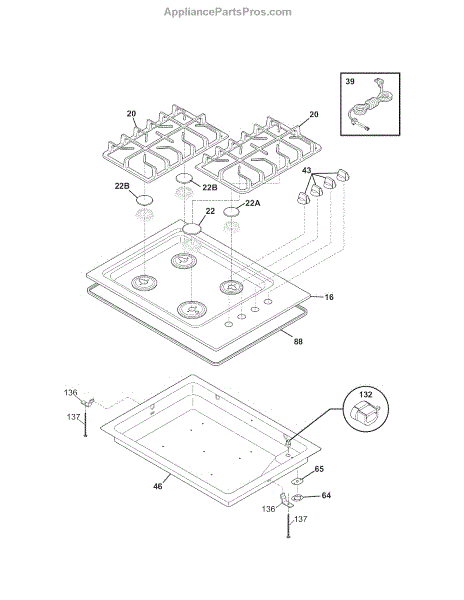

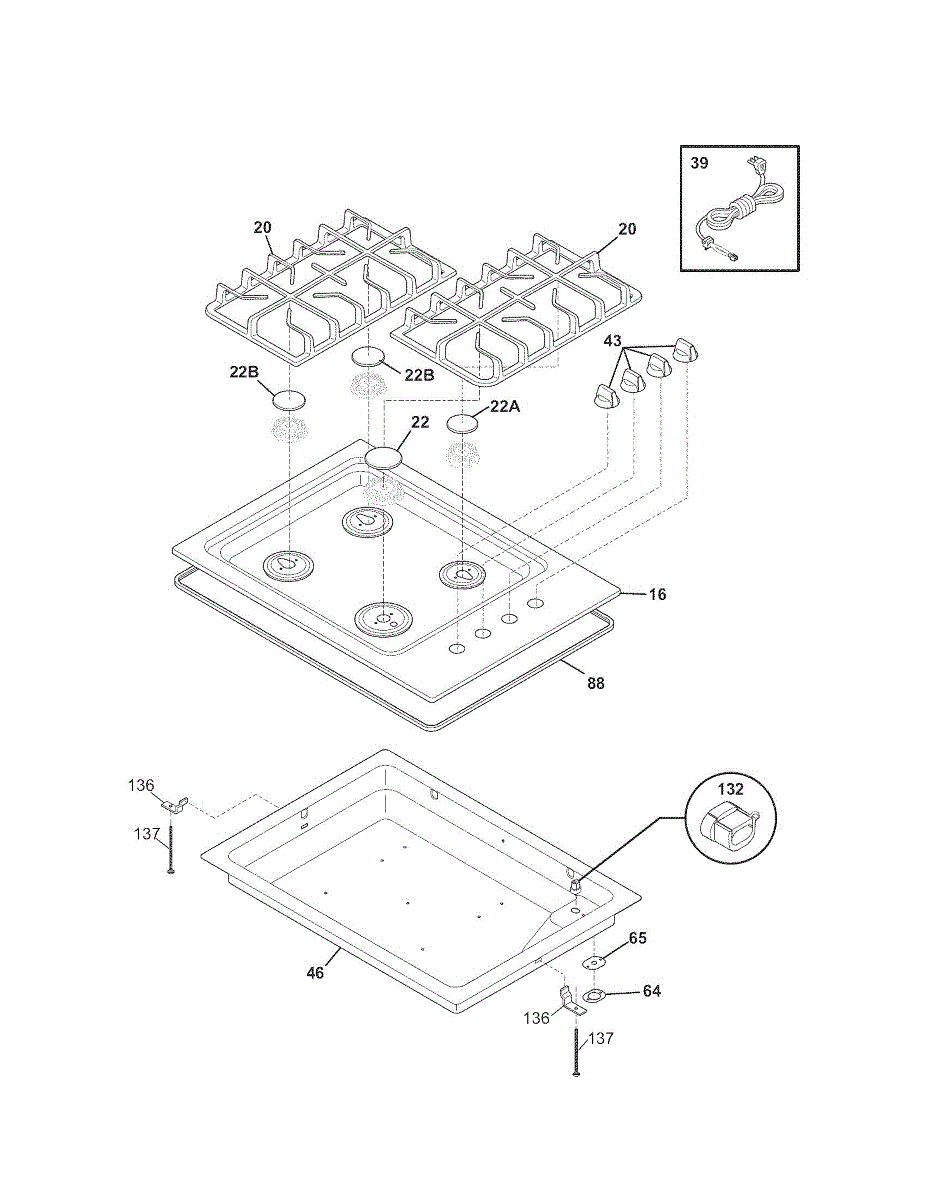

Parts for Kenmore 790.32424901 (79032424901, 790 32424901): Main Top Parts

Color: Black

Burner cap sits on top of the gas burner assembly to distribute flame evenly. Replace if cracked, chipped, discolored, or missing for proper cooking.

Replacement power cord for cooktops and ranges. Connects appliance to wall outlet. Install when original cord is damaged, cut, frayed, or missing.

Replace your cooktop's control knob if the original is cracked, broken, or missing. This knob attaches to the burner control valve for heat adjustment.

This is a flexible gasket that seals the oven door to the cabinet, preventing heat from escaping during cooking. It fits around the perimeter of the oven opening and helps maintain consistent internal temperatures. Replace this seal if you notice excessive heat radiating from the oven door, uneven cooking results, or if the gasket is visibly torn, hardened, or no longer making full contact with the door.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This is a metal support bracket that helps secure and stabilize the firebox or internal cavity structure of the range or cooktop. It provides structural reinforcement to keep components properly aligned during operation. Replace this bracket if it is bent, broken, or corroded, which can cause misalignment of internal parts or rattling noises during use.

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.

This printed repair parts list provides the factory parts diagram and itemized part names to help identify components for service or ordering. It makes matching and replacement parts easier when troubleshooting or repairing appliances. What it does:

• Shows the exploded parts diagram and part reference numbers for the appliance
• Useful for locating part names and positions during disassembly or inspection
• Reduces guesswork when communicating part needs to a service technician or parts supplier

• No tools required; reference-only document to be used during repair or parts ordering
• Keep the sheet with service records or the appliance manual for future reference
• If the sheet is damaged or unreadable, obtain a replacement from the manufacturer or authorized parts distributor

Owner's manual for your cooktop. Provides installation instructions, operating guidelines, maintenance tips, and troubleshooting information.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.
