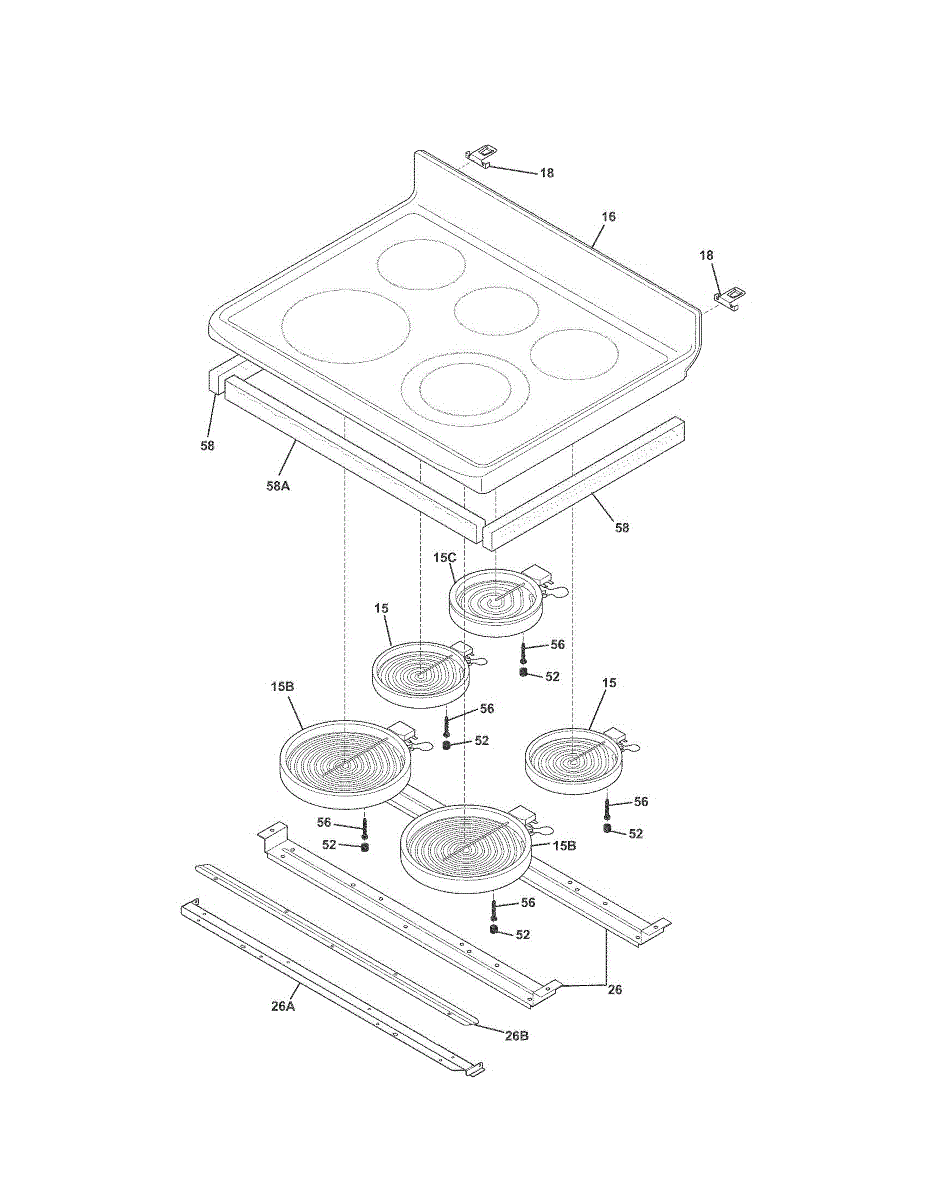

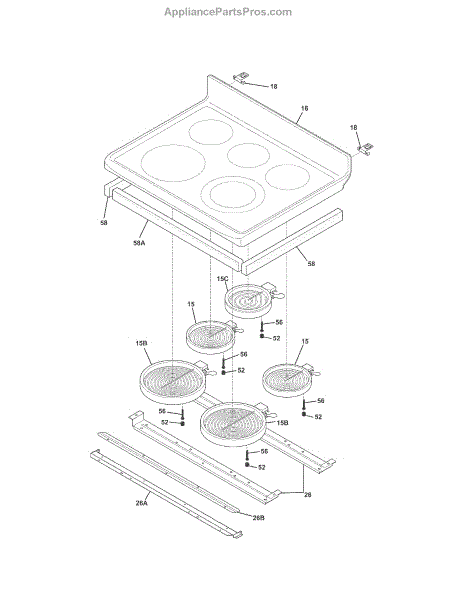

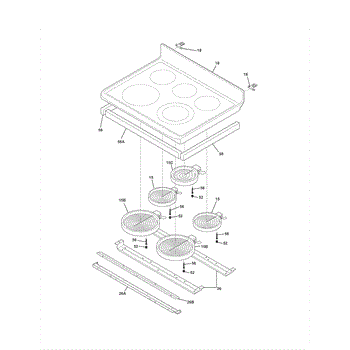

Parts for Kenmore 790.97609301 (79097609301, 790 97609301): Main Top Parts

Burner not heating or heating unevenly? This surface heating element restores consistent temperature control. Common fix for cold or slow-heating burners.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

The Dual Element is an OEM replacement part for Frigidaire electric ranges. This component is located on the cooktop surface and features two heating coils in one unit, one measuring 6 inches in diameter and the other 9 inches. It allows for precise control of cooking temperatures, accommodating various pot and pan sizes for more efficient cooking.

Causes of a bad dual element can include prolonged use that leads to wear and tear, electrical surges that can damage the heating element, or physical damage due to impact or mishandling. Over time, these issues can result in the element failing to heat properly or not working at all.

Symptoms of a bad dual element include:

• The element not heating up or only partially heating
• Inconsistent or fluctuating temperatures
• Visible damage, such as burns or breaks in the element
• The element not responding to temperature controls
• Sparking or unusual noises when the element is in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Mounting bracket for range installation. Secures appliance components in place. Replace if bent, cracked, or missing to restore proper stability and fit.

Mounting spring that secures electric cooktop elements in place. Replace if spring is broken, bent, or missing to properly hold heating element assembly.

Mounting screw secures heating element to cooktop surface. Replace if stripped, rusted, or missing to ensure proper element installation and stability.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
