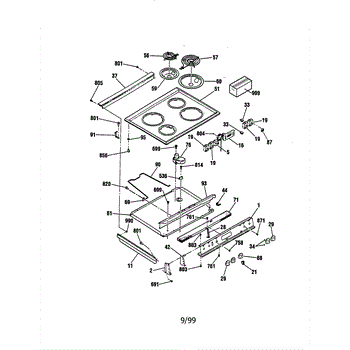

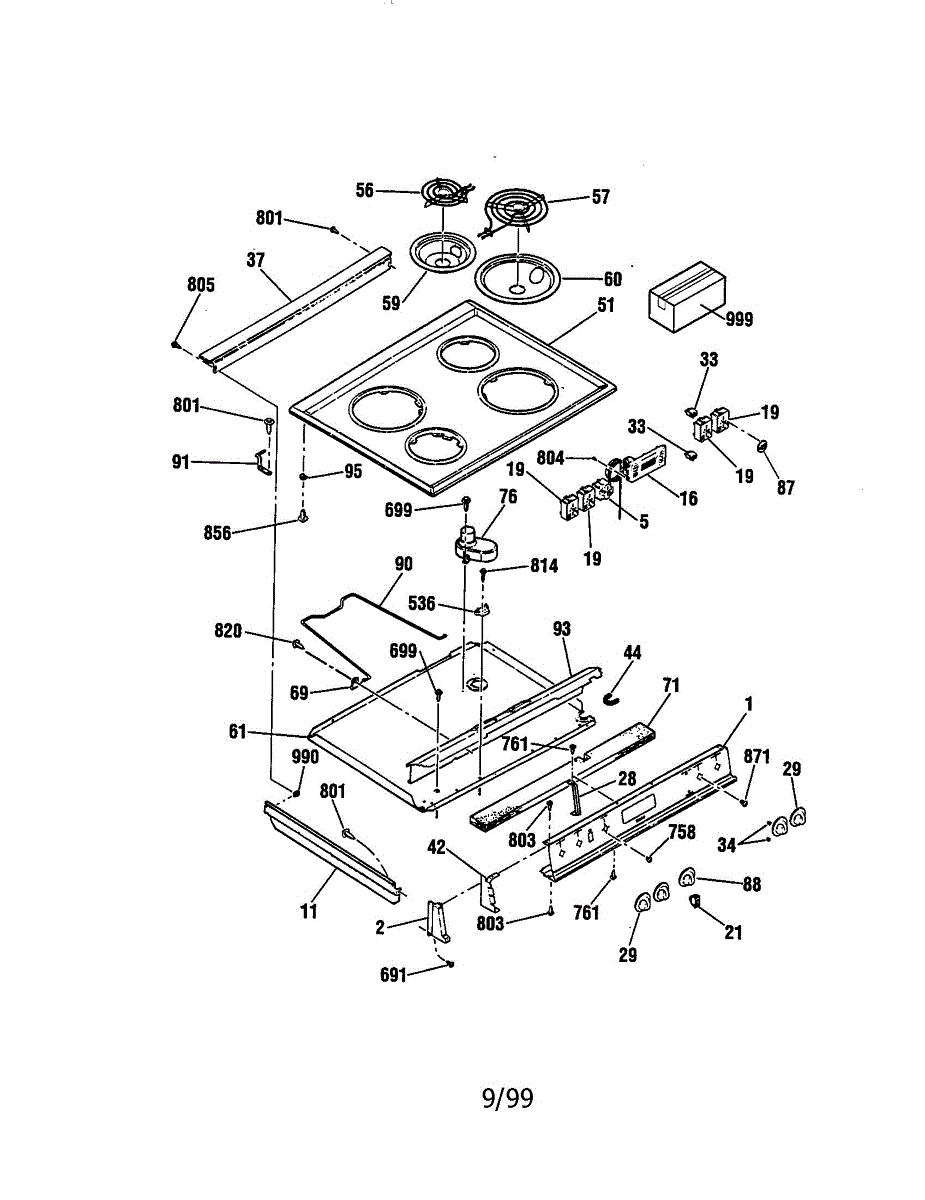

Parts for Kenmore 911.4624895 (9114624895, 911 4624895): Main Top Parts

This thermostat regulates oven temperature to maintain consistent cooking heat and help restore accurate bake and broil performance. Fits select ranges and ovens; replaces a failed or inaccurate temperature control. What it does:

• Senses oven temperature and cycles the heating elements to maintain the set temperature.
• Restores correct oven temperature when the appliance is running too hot, too cold, or has uneven baking.
• Works as the control linkage between the oven temperature knob/selector and the heating system.
• Commonly replaced when the oven won't reach set temperatures or temperature readings are erratic.

• Disconnect power to the appliance before starting any repairs to avoid shock or injury.
• Accessible from the oven control panel or rear of the range; some models require removing the back panel or control console.
• Handle the thermostat carefully to avoid bending the sensing element; improper handling can affect accuracy.

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

Note: 6" surface element

This radiant surface element sits beneath a glass cooktop and supplies controlled heat to a single burner. Replacing a failed element restores proper heating and consistent cooking performance on the range top. What it does:

• Converts electrical power into radiant heat under the glass for one surface burner
• Works with the limiter/control to cycle and maintain set temperatures
• Typical symptoms: burner won't heat, heats intermittently, shuts off too soon, or trips the circuit when turned on
• Common diagnosis: element tests open (no continuity) with a multimeter

• 1 radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift or open the glass top per your model's service information to access the element
• Note wire locations; transfer any mounting clips/brackets as needed and reconnect wires one at a time
• Handle the element carefully and seat it correctly before reassembly; test operation before closing up

This replacement burner box bottom is the lower metal housing that supports and protects the range/oven burner assembly and internal components from heat, spills, and debris. Restores proper burner alignment and chamber protection. What it does:

• Provides the lower enclosure that holds and supports the burner assembly
• Shields internal wiring and components from grease, crumbs, and spills
• Helps contain and direct heat away from adjacent parts for safer operation
• Replaces corroded, warped, or damaged panels that can cause burner misalignment or hot spots

• Disconnect the appliance from power and shut off the gas supply before starting work
• Typical replacement requires removing the cooktop/grates and burner components; have basic hand tools ready
• Inspect adjacent gaskets, screws, and mounting clips and replace if corroded or damaged

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

ST10-16 X 7/16"

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Package of 12

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

This replacement owner's manual provides the original operating, safety and maintenance guidance for the appliance so you can use it correctly and troubleshoot basic issues. Keeps important setup and care instructions on hand. What it does:

• Supplies official operating instructions and safety warnings to reduce misuse
• Covers basic care and routine maintenance recommendations
• Includes troubleshooting tips and user-facing symptom checks
• Lists user-accessible controls and common error explanations

• No tools required; this is a reference document only
• Store in a dry, accessible place with appliance records
• Keep out of reach of children and away from heat or moisture
• If lost, consider scanning a copy for secure digital backup
