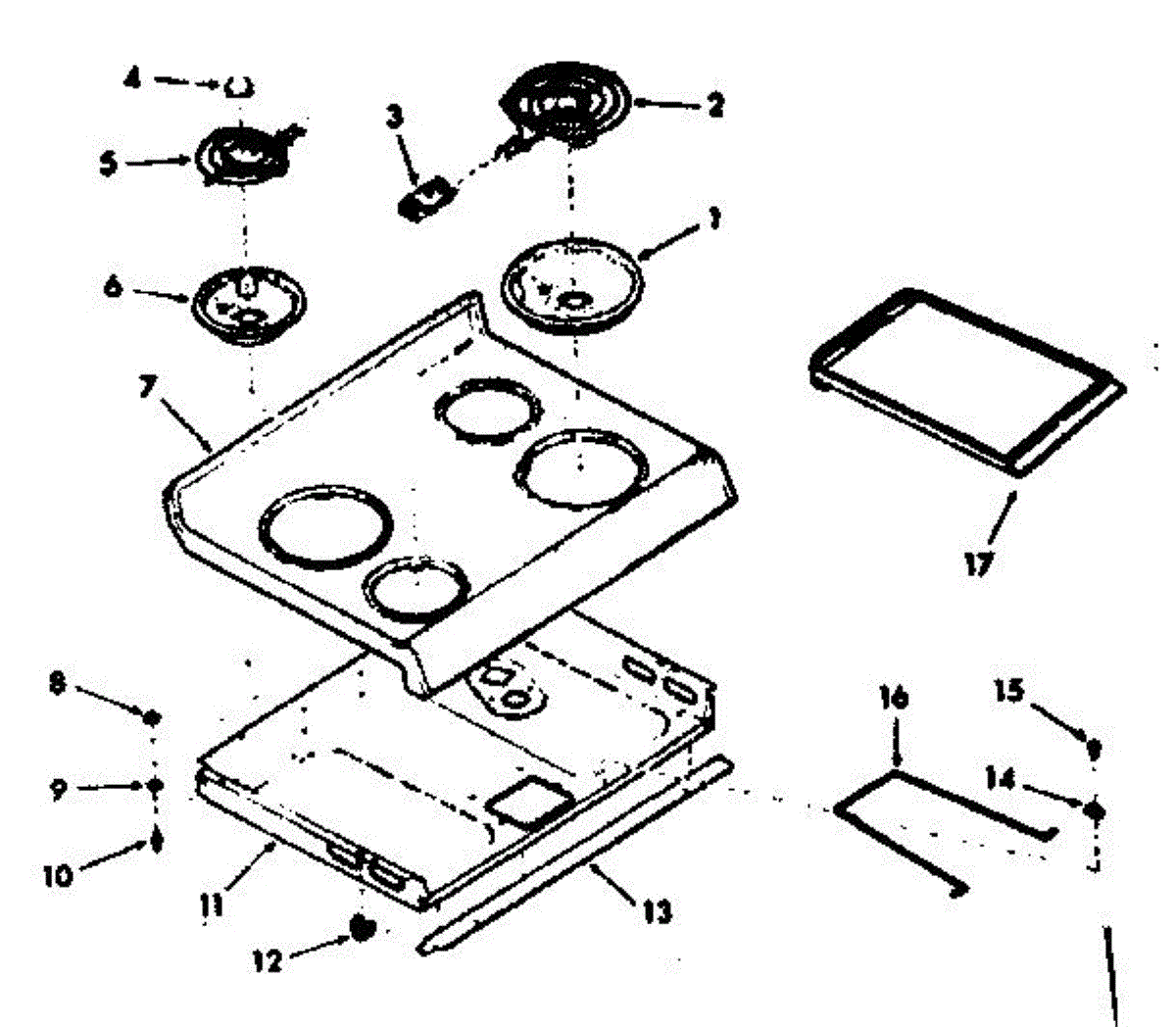

Parts for Kenmore 103.9867320 (1039867320, 103 9867320): Main Top Section Parts

The 8-Inch Large Drip Pan is an OEM part for GE ranges and cooktops. This drip pan is designed to sit beneath the heating element, catching any spills, drips, or overflow that occurs during cooking. It helps to protect the range from food debris and liquids, making cleaning easier and preventing damage to the stove's surface.

Symptoms of a failing Drip Pan include:

• Visible wear, rust, or corrosion on the pan
• Difficulty in fitting the pan securely beneath the heating element
• Accumulation of burnt food or discoloration that cannot be cleaned
• The pan becoming warped or damaged from high heat exposure

Causes of a bad drip pan can include regular wear and tear from frequent use, exposure to high temperatures, and spills from cooking. Over time, these factors can lead to rust, corrosion, and other forms of damage that necessitate replacement.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore.

This 8-inch surface coil element restores a burned-out or damaged heating element on an electric cooktop. It delivers consistent 2100W heat for everyday boiling, frying, and simmering, so your range burners perform like new.

• Provides direct, even heat for pots and pans on coil-top ranges
• Common symptoms: surface element won't heat, heats unevenly, or cycles off prematurely
• Visual signs can include blisters, breaks, or hot spots on the coil
• Helps resolve issues caused by a failed element rather than the switch or receptacle

• Unplug range or switch off circuit breaker before servicing
• Allow the old element to cool completely before handling
• Pull the element straight out from the receptacle; align and push the new one fully into place
• Inspect the element receptacle for heat damage and replace if needed for best results

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A decorative medallion trim that restores the finished look of your appliance's control area and covers fastening hardware. Makes worn, scratched, or missing trim look like new while leaving controls fully accessible. What it does:

• Covers and protects the control panel area from everyday wear and cosmetic damage
• Hides screws and mounting holes for a cleaner appearance
• Helps prevent dirt and grime buildup around switches and knobs
• Common replacement when the original trim is cracked, faded, or missing

• One decorative medallion trim

• Disconnect power to the appliance before beginning any work
• Typically installs with snap clips or a few screws; use the original hardware if present
• Handle carefully to avoid scratching the finish during installation

The 6 Inch Small Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit beneath the burner element to catch spills and drips that occur during cooking. This helps keep the stovetop clean and reduces the risk of burns and fire by preventing spills from coming into direct contact with the heating elements. For the 8-inch large drip bowl order WB32X106

Symptoms of a bad Drip Pan include:

• Rust or corrosion that can no longer be cleaned off
• Warping or changes in shape that prevent it from fitting properly under the burner
• Accumulation of stubborn residues that can't be removed, leading to smoke and odors during cooking

Common causes for replacing the drip pan include prolonged exposure to high heat which can cause discoloration and deformation, as well as accidental damage during cleaning or heavy use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity
