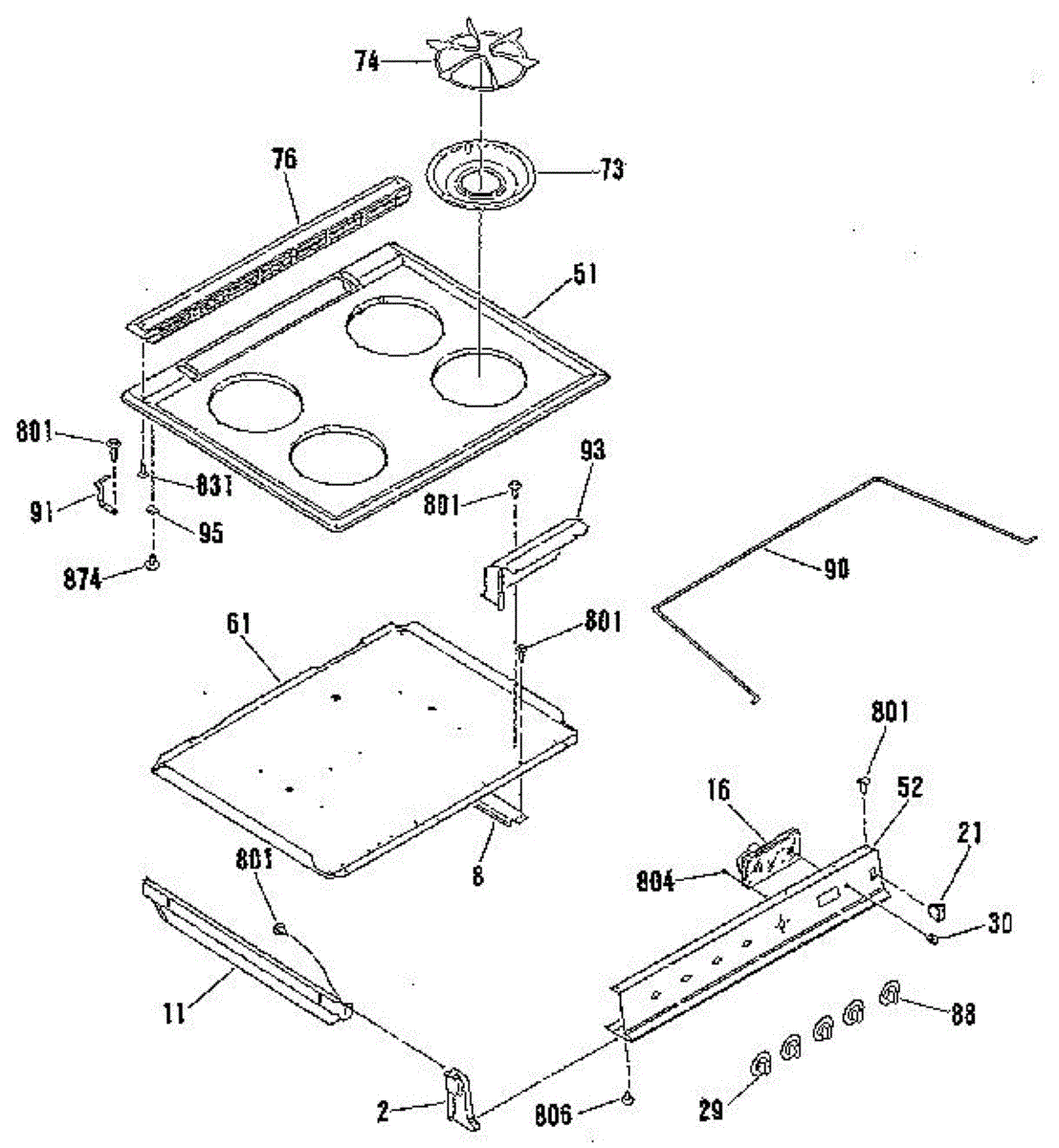

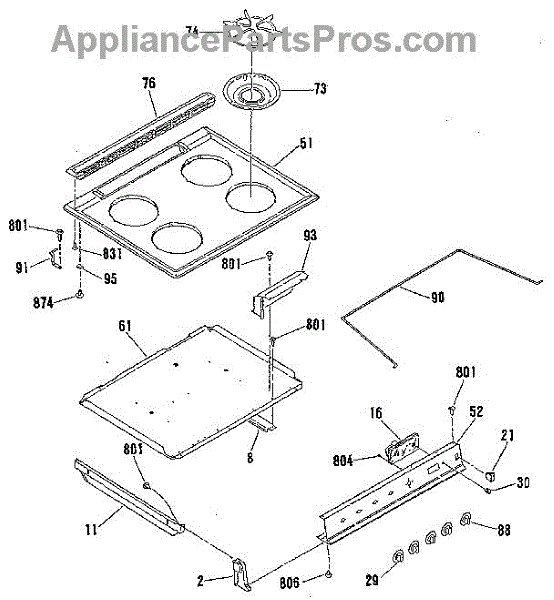

Parts for Kenmore 911.3631990 (9113631990, 911 3631990): Main Top Section Parts

Color: Black

This replacement burner box bottom is the lower metal pan that supports and protects the range's burner assembly, helping contain spills and direct heat away from internal components for safer, more reliable operation. What it does:

• Provides a protective base for the burner assembly and internal wiring/components
• Helps channel heat and spills away from sensitive parts to reduce corrosion and damage
• Keeps burners aligned and seated properly for consistent ignition and flame pattern
• Worn, rusted, or warped pans can lead to uneven flames, burner misalignment, or visible damage under the cooktop

• Disconnect the appliance from power and shut off the gas supply before servicing
• Allow the range to cool completely and remove surface components (grates, burners, cooktop) per the owner's manual
• Handle metal edges carefully; rusted parts may have sharp areas
• Follow OEM instructions and torque guidelines when reinstalling; replace any damaged fasteners or gaskets as needed

This drip pan sits beneath a surface burner to catch spills and boil-overs, protecting the cooktop and making cleanup easier. Replacing a stained or damaged pan helps the burner seat correctly and restores a clean appearance.

• Collects drips and splatters under the burner area
• Shields the cooktop surface from heat and residue buildup
• Provides proper seating/alignment for burner components
• Common signs it's time to replace: rust, heavy discoloration, pitting, warping, or a missing/ill-fitting pan

• Allow the appliance to cool; disconnect power or shut off gas per your model's instructions
• Remove the components above the pan (grate/ burner parts or element, as designed for your model)
• Lift out the old pan, clean the area, and position the new pan with alignment features oriented correctly
• Reinstall components and verify proper seating and operation

ST10-16 X 7/16"

A replacement screw used to secure appliance panels and components. This direct-fit fastener restores proper assembly and helps stop rattles or misalignment caused by a missing or damaged screw. What it does:

• Secures trim, panels, or internal components to maintain proper fit and function
• Prevents parts from vibrating loose during operation
• Helps stop rattling, squeaks, or gaps caused by a missing or stripped screw
• Restores correct alignment so doors, knobs, or covers operate smoothly

• One replacement screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threaded, then tighten snugly—do not over-tighten
• Replace with the exact part number for proper fit and function
