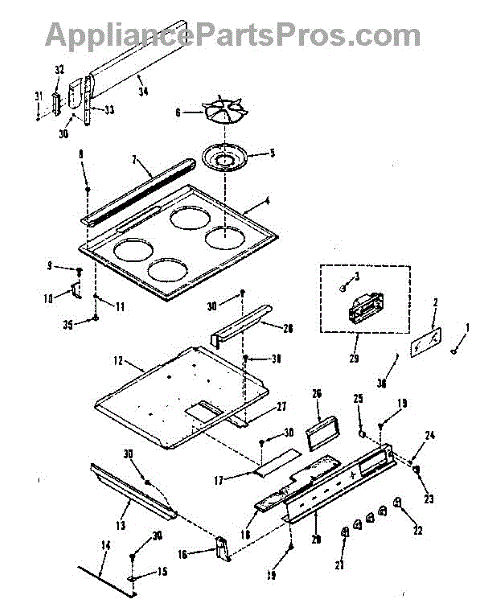

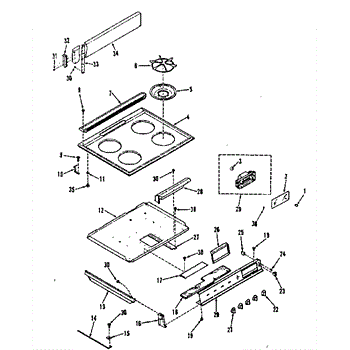

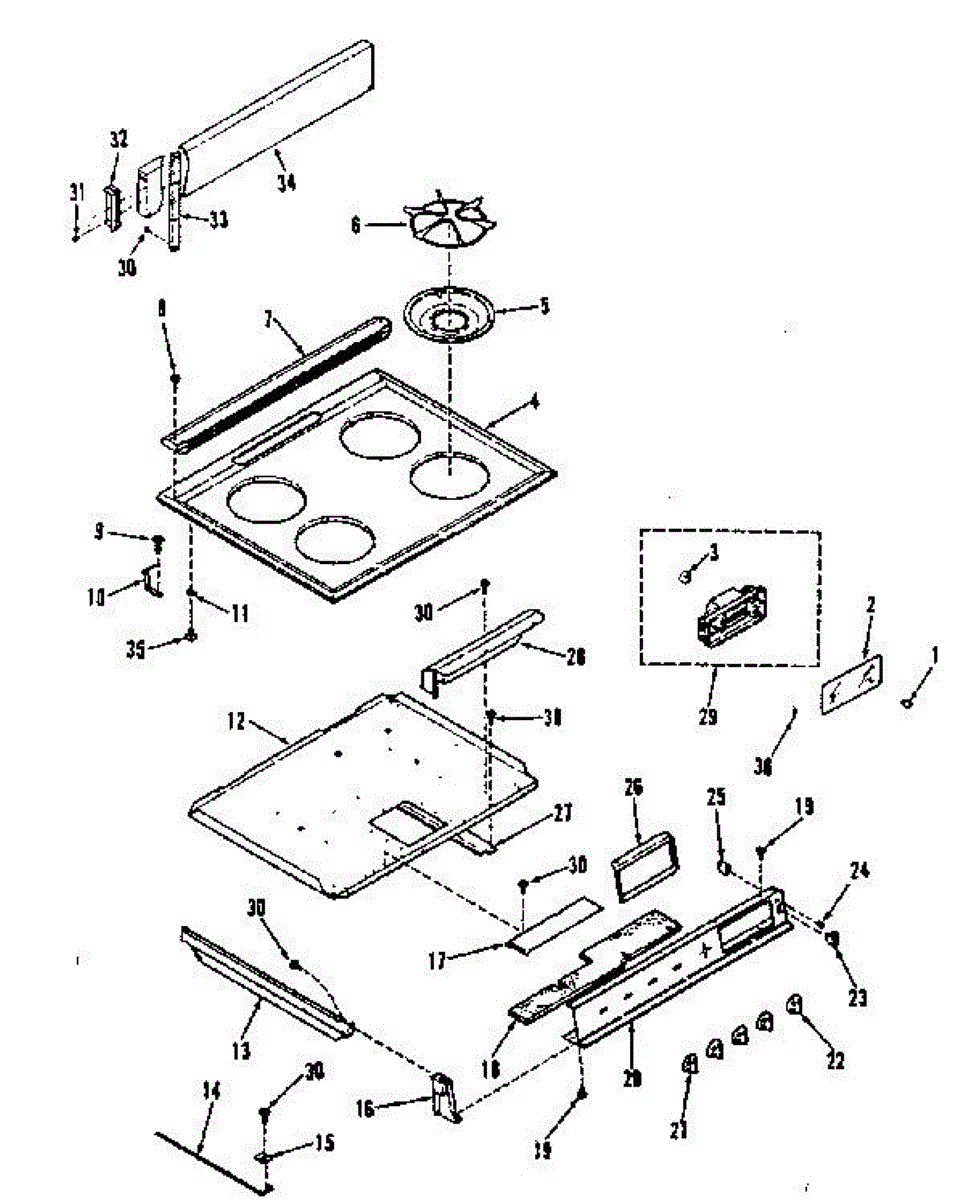

Parts for Kenmore 911.3658611 (9113658611, 911 3658611): Main Top Section Parts

This drip pan sits beneath a surface burner to catch spills and boil-overs, protecting the cooktop and making cleanup easier. Replacing a stained or damaged pan helps the burner seat correctly and restores a clean appearance.

• Collects drips and splatters under the burner area
• Shields the cooktop surface from heat and residue buildup
• Provides proper seating/alignment for burner components
• Common signs it's time to replace: rust, heavy discoloration, pitting, warping, or a missing/ill-fitting pan

• Allow the appliance to cool; disconnect power or shut off gas per your model's instructions
• Remove the components above the pan (grate/ burner parts or element, as designed for your model)
• Lift out the old pan, clean the area, and position the new pan with alignment features oriented correctly
• Reinstall components and verify proper seating and operation

Color: Black

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

ST10-16 X 7/16"
