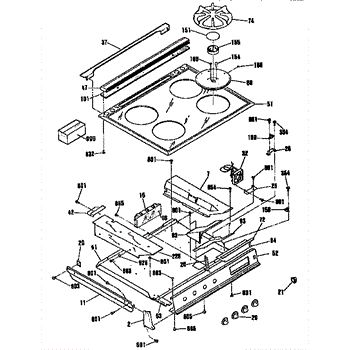

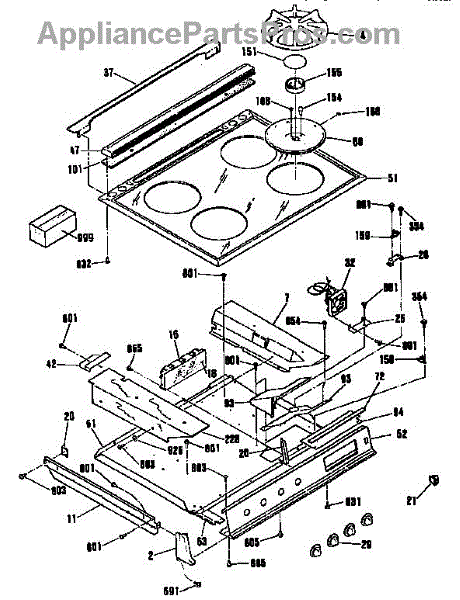

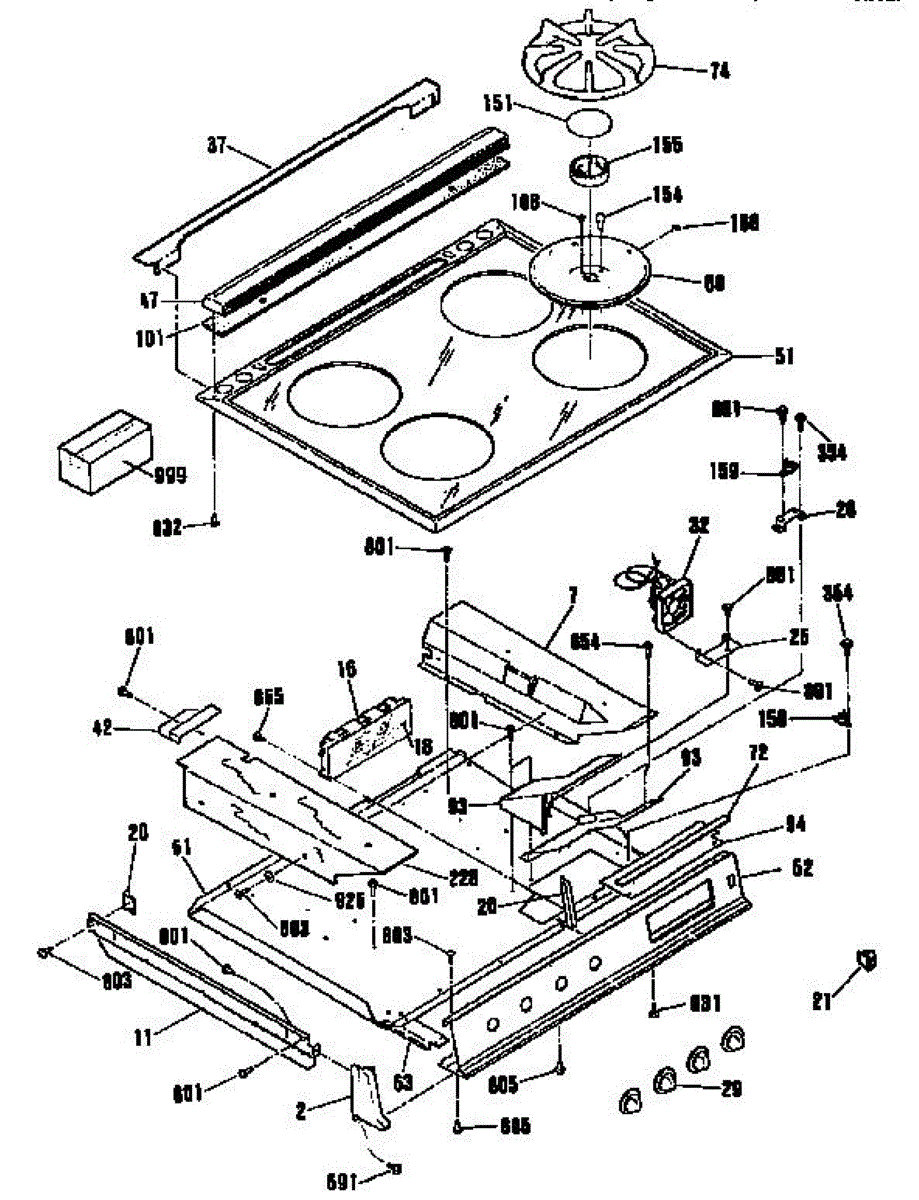

Parts for Kenmore 911.36756590 (91136756590, 911 36756590): Main Top Section Parts

Color: Black

Oven light switch.

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

Medium

Color: Black

This is a medium burner bowl, also sometimes known as a drip pan, and it is made for ranges, stoves, and cooktops. This is a genuine replacement part made by General Electric. The burner bowl is situated underneath the heating element and is able to catch any food or debris that falls when cooking. The bowl or drop pan is there to catch any and all waste so that the user may easily clean up after the heat is turned off and the appliance is cooled down.A new medium burner bowl might be needed if the current one is damaged in any way including being broken or bent so that is it not fully secure under the burner. This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges, stoves, or cooktops made by General Electric.

This is a large burner bowl replacement that can work with many models of stoves and ranges. Another term for these bowls is drip pan. The purpose of the drip pans is to protect the inner workings of the stove. They catch spills and drips when cooking. The stove shouldn't be used if the drip pans are damaged or missing.The main reason that the burner bowl might need to be replaced is that it has become dirty and can't be easily cleaned. Additionally, there is the chance that the burner bowls could eventually start to rust. This is a simple repair and should take only a few minutes. Be sure to unplug the stove or turn off the gas before starting a repair.The large burner bowl is for use with certain models of range from Whirlpool, General Electric, Kenmore, and Hotpoint. It is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

This right-side burner-box stiffener reinforces the cooktop's burner box to help maintain alignment and structural stability. It restores proper support for burners and associated components for safe, reliable operation. What it does:

• Reinforces the right side of the range/oven burner box to reduce flexing or distortion
• Helps keep burners, igniters and gas line fittings properly aligned
• Commonly replaced when the burner box is bent, damaged or producing rubbing/vibration noises
• Supports long-term fit and seal of the cooktop assembly to help prevent gaps or misalignment

• One right-side burner-box stiffener

• Disconnect power and gas supply before beginning any service
• Requires removing the cooktop/burner box access panels; basic hand tools are typically needed
• Handle carefully to avoid bending the replacement part or damaging adjacent components

Please note: These are a dark grey replacing light grey

The Burner Grate is an OEM part for GE gas ranges. This component supports cookware above the burner, allowing for even heating and stable placement of pots and pans during cooking.

Causes of a bad burner grate can include prolonged exposure to high heat, accidental dropping or impact, or wear and tear from frequent use. A damaged grate can affect cooking efficiency and safety by causing instability for cookware.

Symptoms of a bad burner grate include:

• Cracks or chips in the grate
• Uneven or unstable cooking surface
• Rust or discoloration
• Difficulty in placing pots and pans securely

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Electrode is an OEM part for GE gas cooktops and ranges. This component is responsible for igniting the surface burners. They are also often referred to as spark igniters.

Causes of a bad electrode can include cracks, mineral deposits, or damage accumulated from regular usage over many heating cycles. Heat exposure degrades the material integrity of the tip.

Symptoms of a bad electrode include:

• Surface burners failing to light or ignite when turned on
• The igniter glows but flames do not ignite
• Intermittent or inconsistent ignition of burners
• Visible wear, cracks or corrosion on the electrode tip

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

ST10-16 X 7/16"

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Nickel

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage
