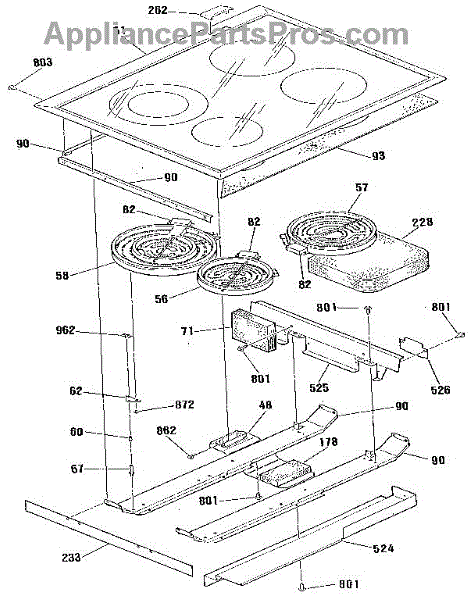

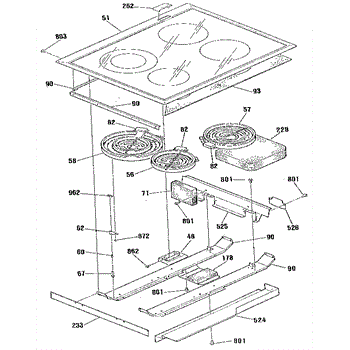

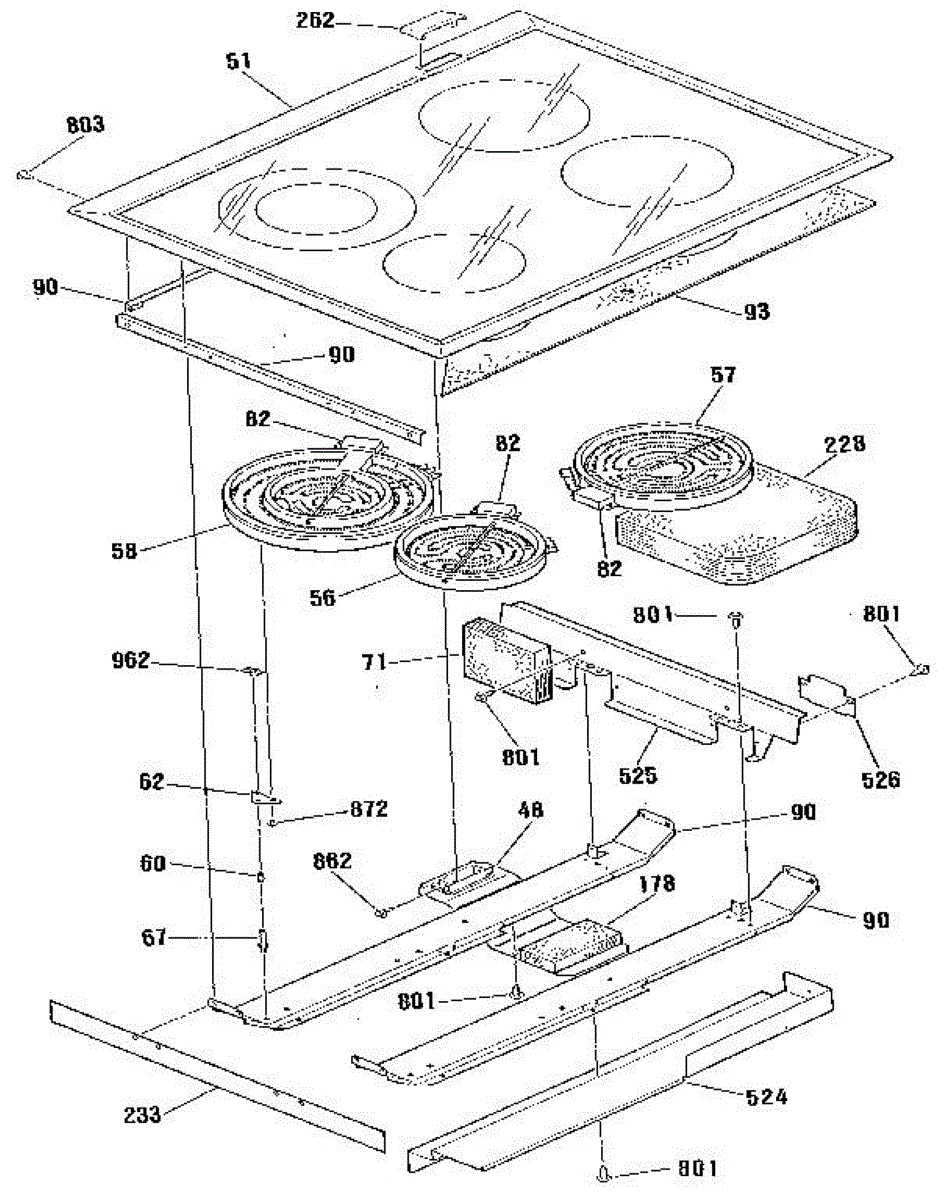

Parts for Kenmore 911.4678891 (9114678891, 911 4678891): Main Top Section Parts

This 9-inch dual radiant surface element kit replaces a failed burner on a smooth-top electric range or cooktop, restoring dependable, even heating and letting you choose a smaller or larger heating area to match your cookware.

• Provides two selectable heating zones (inner and outer rings) to match pot size
• Heats cookware evenly across the chosen zone on glass-ceramic cooktops
• Typical symptoms include no heat, only one ring working, slow or uneven heating, or intermittent operation
• Restores burner performance after internal failure of the element assembly

• Disconnect power at the circuit breaker before servicing; 240V shock risk
• Allow the cooktop to cool completely; protect the glass surface while working
• Photograph wiring and transfer leads one at a time to matching terminals on the new element
• Ensure the element seats correctly in its support brackets; test both inner and outer rings before final reassembly

Replacement mounting stud for cooktops and ranges. Secures the cooktop assembly to the cabinet or countertop. Replace if broken, stripped, or missing.

This temperature-sensitive switch cycles the heating element on and off to maintain proper drying temperature throughout the cycle. Replace if clothes come out too hot, cycles run too long, or the dryer overheats and shuts down.

Replace your range vent trim if it's cracked, broken, or missing. This cosmetic trim piece surrounds the ventilation opening on your range for a finished look.
