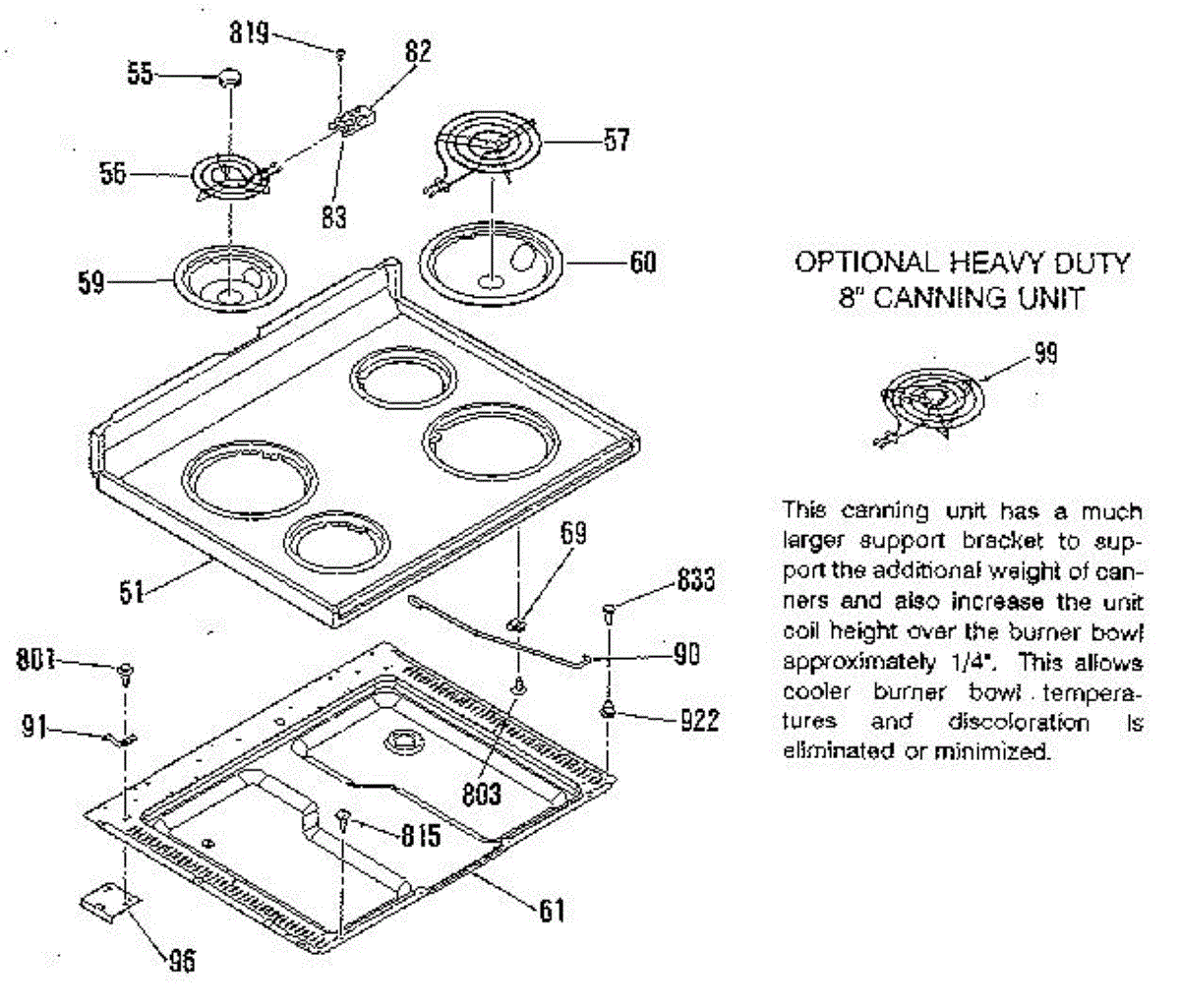

Parts for Kenmore 911.9149181 (9119149181, 911 9149181): Main Top Section Parts

The Drip Pan is an OEM part for GE ranges. It sits underneath the burners to catch spills, drips, and splatters during cooking, preventing these residues from reaching the internal components of the appliance. This helps in maintaining cleanliness and safety, while also making it easier to clean the stovetop.

Causes of a bad drip pan can include prolonged exposure to high heat, which can cause warping or discoloration, and the accumulation of food debris and grease, which can lead to corrosion or foul odors.

Symptoms of a bad Drip Pan include:

• Visible rust or corrosion
• Warping or misalignment with the burners
• Persistent stains or burnt-on food that cannot be cleaned
• Unpleasant odors emanating from the stove area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Restore reliable heat on your range's small burner with this 6-inch surface coil element. Replacing a worn or burned-out coil brings back consistent temperature response and dependable everyday cooking performance.

• Supplies direct electric heat to a 6-inch cooktop burner
• Replaces a coil that is warped, cracked, or has an open/burned-out section
• Common symptoms include: burner won't heat, heats unevenly, or works intermittently
• Visible damage, hot spots, or arcing at the terminals can indicate failure

• Disconnect power by unplugging the range or switching off the circuit breaker
• Lift the old coil and pull straight out from the receptacle to remove
• Inspect the element receptacle/terminal block for discoloration or pitting; replace if damaged
• Align terminals and support, insert fully, and ensure the element sits level in the drip bowl

The 8" Surface Element is an OEM part for GE ranges. It is an 8-inch heating element that fits into the cooktop to provide heat for cooking.

Causes of a bad surface unit include wear and tear from regular use, damage due to heavy cookware, or electrical issues that prevent the element from heating correctly.

Symptoms of a bad surface unit include:

• The burner not heating up
• Uneven heating or hotspots
• Visible damage or burn marks on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. This part is located under the burner to catch spills, drips, and crumbs during cooking. The drip pan helps maintain cleanliness by containing messes, making it easier to keep the cooktop clean and preventing spills from reaching the internal components of the appliance. Note: This is the drip pan used with the 6-inch element. For the drip pan used with 8-inch element, order WB31K5025.

Causes of a bad drip pan can include regular wear and tear, discoloration from repeated use, or damage from heavy pots and pans.

Symptoms of a bad drip pan include:

• Visible cracks or holes in the pan
• Rust or significant discoloration
• Difficulty in cleaning the pan
• The pan not fitting securely under the burner

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. It sits underneath the burners to catch spills, drips, and splatters during cooking, preventing these residues from reaching the internal components of the appliance. This helps in maintaining cleanliness and safety, while also making it easier to clean the stovetop.

Causes of a bad drip pan can include prolonged exposure to high heat, which can cause warping or discoloration, and the accumulation of food debris and grease, which can lead to corrosion or foul odors.

Symptoms of a bad Drip Pan include:

• Visible rust or corrosion
• Warping or misalignment with the burners
• Persistent stains or burnt-on food that cannot be cleaned
• Unpleasant odors emanating from the stove area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
