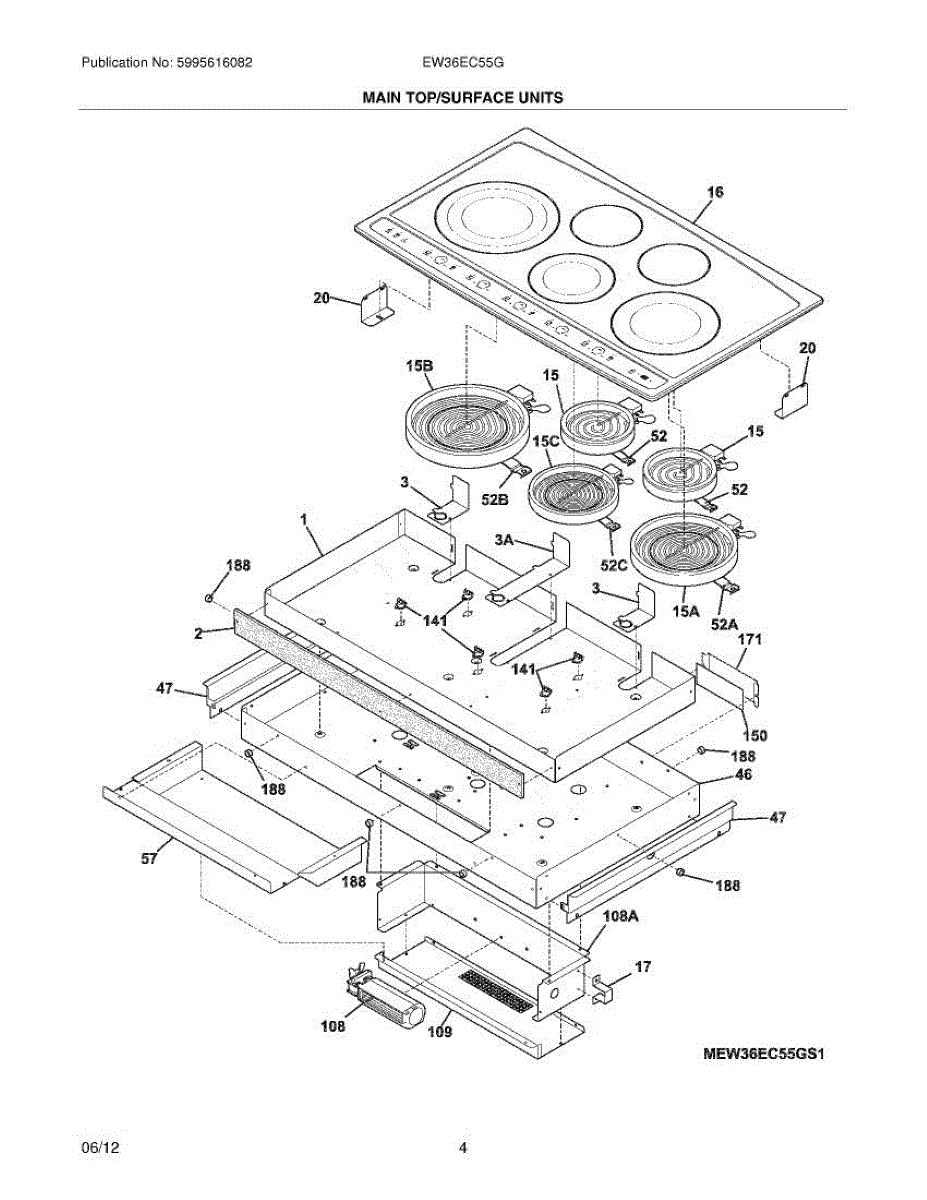

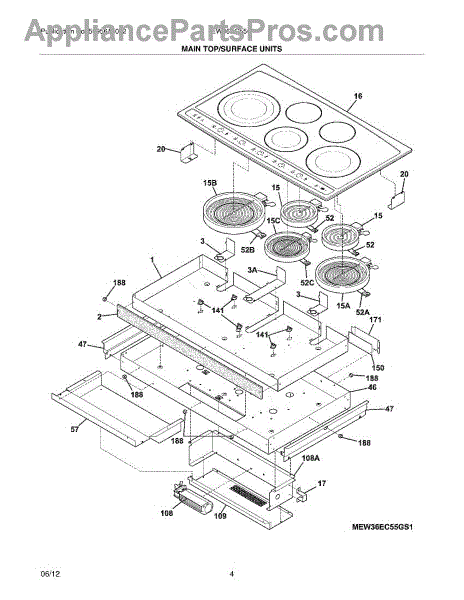

Parts for Electrolux EW36EC55GW1: 05 - Main Top Parts

This is a dual radiant surface element that mounts beneath the glass cooktop on a smooth-top electric range. It provides heat for cooking by radiating energy through the glass surface and can operate at two different diameters for different pot sizes. Replace this element if the burner no longer heats, heats unevenly, only partially lights up, or if you see visible damage such as cracks or burn spots in the coil.

This is a triple-ring radiant surface element designed for electric ranges with ceramic glass cooktops. It provides multiple heating zones in a single burner location, allowing for different pot sizes and heat output levels. Replace this element if the burner fails to heat, heats unevenly, or only partially glows when turned on.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

The Dual Element is an OEM replacement part for Frigidaire electric ranges. This component is located on the cooktop surface and features two heating coils in one unit, one measuring 6 inches in diameter and the other 9 inches. It allows for precise control of cooking temperatures, accommodating various pot and pan sizes for more efficient cooking.

Causes of a bad dual element can include prolonged use that leads to wear and tear, electrical surges that can damage the heating element, or physical damage due to impact or mishandling. Over time, these issues can result in the element failing to heat properly or not working at all.

Symptoms of a bad dual element include:

• The element not heating up or only partially heating
• Inconsistent or fluctuating temperatures
• Visible damage, such as burns or breaks in the element
• The element not responding to temperature controls
• Sparking or unusual noises when the element is in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Retainer bracket secures cooktop components in place. Order a replacement if your original bracket is bent, cracked, broken, or missing hardware.

Secures the heating element to the cooktop surface. Replace if your original spring is broken, missing, or no longer holds the element firmly in place.

Secures your cooktop heating element in place and maintains proper electrical contact. Replace if your spring is worn, broken, or missing to restore stability.

Mounting spring that secures the heating element in place on your cooktop. Replace if spring is broken, stretched, or missing to properly hold element.

This wiring harness routes power and signals between components inside the refrigerator to restore reliable electrical connections. Replaces a damaged connector assembly to help resolve intermittent operation and component failures. What it does:

• Transfers power and control signals between control modules, dispensers, ice maker, and other internal components
• Restores reliable electrical connections when wires are frayed, chafed, or connectors are loose
• Helps stop intermittent operation, unresponsive controls, or devices that work only sporadically
• Prevents shorts and arcing caused by damaged wiring when installed correctly

• Disconnect all power to the appliance before starting work to avoid shock or damage
• Handle connectors and wire terminals carefully to avoid bending pins or pulling wires from terminals
• Route and secure the harness with existing clips/retainers; do not pinch under panels or trim

Spacer bumper for cooktops and ranges. Installs between components to provide proper clearance and prevent vibration. Replace if worn or missing.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
