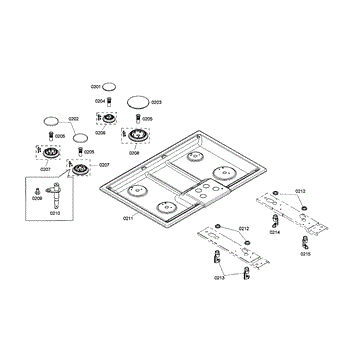

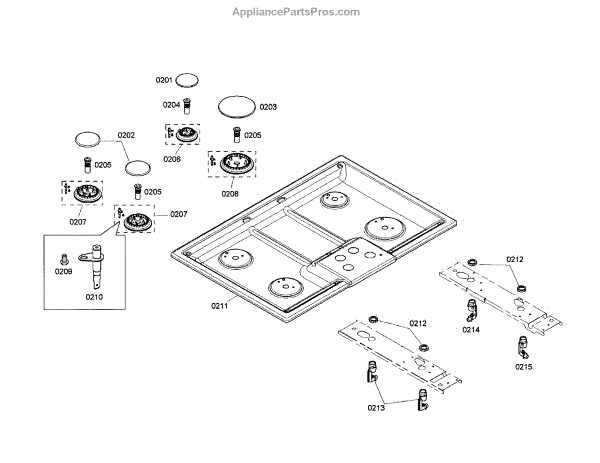

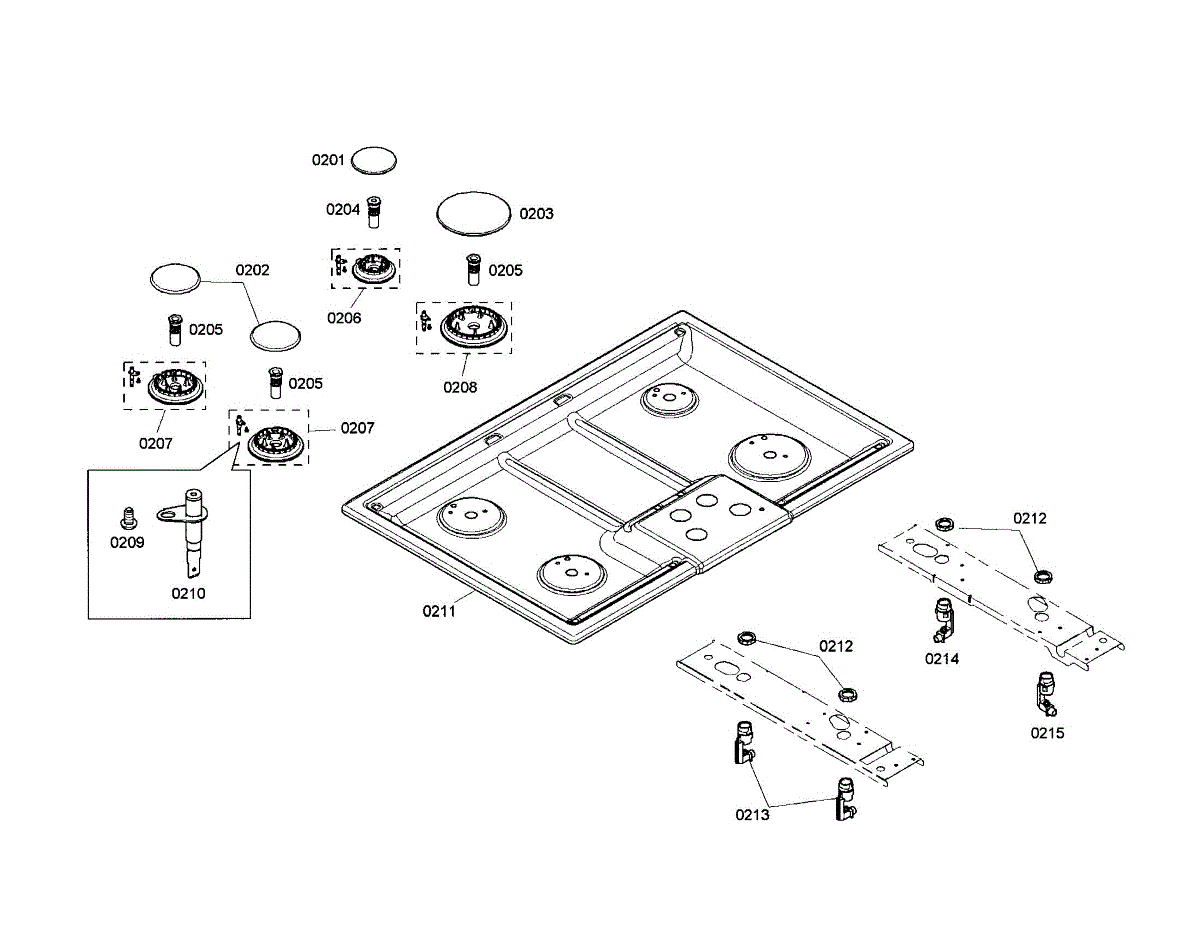

Parts for Bosch NGM5064UC/01: Maintop Parts

The Burner Cap is an OEM part for Bosch Ranges. This part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Burner is an OEM part for Bosch cooktops and ranges. This part provides reliable and consistent heat for cooking. This burner is specifically engineered to distribute flame evenly, ensuring optimal cooking performance.

Causes of a bad Burner can include clogging from food spills or debris, which blocks gas flow and affects flame quality and consistency.

Symptoms of a bad Burner include:

• Uneven flame or low flame output, which can lead to poorly cooked food
• Difficulty lighting the burner, indicating potential blockages or issues with the gas supply
• Excessive sooting or yellow flame, which suggests incomplete combustion typically caused by clogs or improper gas-air mixture
• Noticeable rust or physical damage that can prevent proper seating or alignment of the burner

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Screw Range is an OEM component specifically designed for Bosch ranges. These screws serve to securely mount and assemble different components within the oven cavity.

The screw range plays a crucial role in ensuring internal structures and assemblies are firmly fastened in their correct positions. Proper installation with this screw set guarantees tight tolerances and optimal heat distribution throughout the cooking and baking cycles.

Causes of faulty screws can include wear and tear over time resulting in loosened fits, cracks or heads shearing off due to repeated heating and cooling.

Symptoms of loose or damaged screws include:

• Drooping or sagging racks and shelves
• Components shifting positions or coming loose
• Inconsistent or uneven cooking results

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models. Replace yours today to maintain your range's integrity.


The Ignition Device is an OEM part for Bosch gas cooktops. This ignitor is responsible for sparking the burners to safely ignite the gas flow and initiate the cooking process.

The ignition device works through a high-voltage electrical arc that produces a spark near each gas burner valve whenever a cooktop burner is turned on. This spark reliably ignites the gas, allowing full and consistent burner flame.

Causes of a bad ignition device can include defects in the electronic components, wear and tear of the electrode tips over time, or issues preventing a strong enough spark from occurring.

Symptoms of a bad ignition device include:

• Burners that will not light or remain lit
• Repeated lighting attempts required before a flame is produced
• Inconsistent or intermittent ignition between burners
• Burners that light but then extinguish unexpectedly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Used to hold down the jet holder assembly.

This holder is a small mounting bracket designed to secure internal components in place inside the appliance, helping prevent movement and vibration for reliable operation. It's a direct-replacement component that restores proper fit and stability. What it does:

• Secures and supports designated internal parts to maintain correct alignment
• Reduces rattling or movement that can occur when fasteners or supports fail
• Keeps wiring, tubes, or assemblies positioned to prevent wear or interference
• Restores original mounting points to allow reassembly after repair

• One holder (mounting bracket) as shown

• Disconnect power (and water if applicable) before beginning any repair
• Inspect surrounding fasteners and clips; replace any that are damaged
• Use the OEM fasteners and align the holder to original mounting points

This replacement holder is the mounting bracket used to secure a component inside the appliance, restoring proper alignment and support so parts stay in place during normal use. It helps reduce noise and wear caused by loose or misaligned components. What it does:

• Provides a secure mounting point for the associated component to prevent movement and vibration
• Restores proper spacing and alignment so connected parts operate smoothly
• Helps eliminate rattling or knocking caused by a missing or damaged bracket
• Durable replacement designed to match the OEM fit and function

• One holder as pictured

• Compare the part to the original before installation to ensure fit and orientation
• Turn off power and unplug the appliance before beginning any repair
• Use basic hand tools; avoid overtightening fasteners to prevent damage
