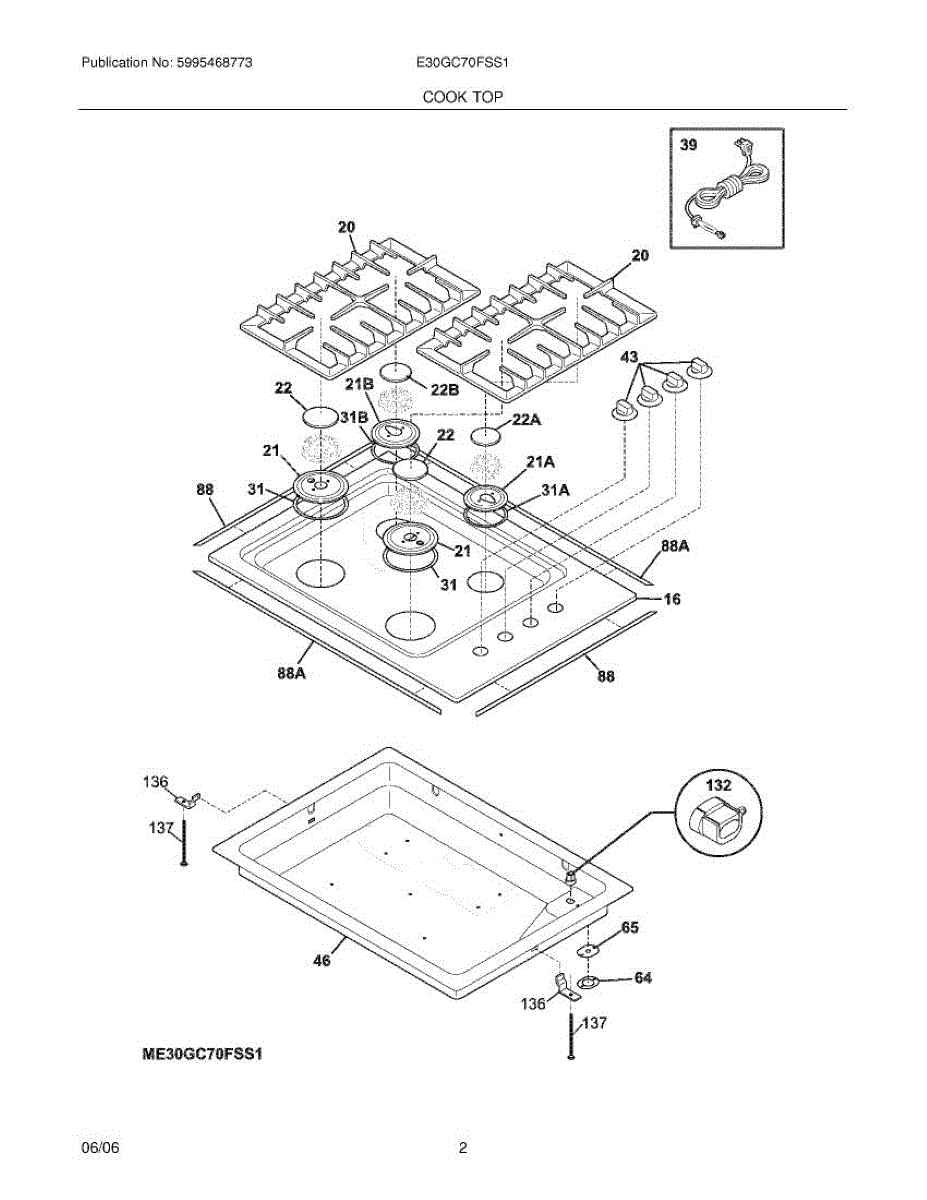

Parts for Electrolux E30GC70FSS1: 03 - Maintop Parts

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

This burner seal fits around a cooktop burner to help keep spills and debris out of the burner housing and provide a stable, centered burner location for consistent heating. It restores a flush seal between the burner and the cooktop surface. What it does:

• Forms a protective gasket around the burner to block food, grease and liquids from entering the cooktop cavity
• Cushions and centers the burner, reducing wobble and promoting even element-to-surface contact
• Helps reduce smoke or odors caused by spills burning on exposed internal surfaces
• Restores proper fit after a cracked, torn or missing seal

• One burner seal

• Disconnect power to the appliance before servicing; if the range is gas, shut off the gas supply
• Remove the burner or lift the cooktop per your model's service instructions to access the seal area
• Clean and dry the mounting surface thoroughly before installing the new seal
• Press the seal into place; do not stretch excessively or use solvents/adhesives unless your model's instructions specify

This burner seal fits the 17k burner to restore a snug seal between the burner and cooktop, helping keep spills out of the burner assembly and keeping the flame properly aligned. Ideal for restoring a cleaner, more reliable cooktop surface. What it does:

• Creates a tight seal around the 17k burner to help prevent food and liquid from entering the burner cavity
• Keeps burner head seated correctly so the flame pattern stays consistent
• Helps reduce soot and residue buildup around the burner area
• Useful when the original seal is cracked, compressed, or missing

• One burner seal for a 17k burner (single piece)

• Always shut off power and gas supply before servicing the range
• Remove burner head and clean mating surfaces before installing the new seal
• Fit the seal in the correct orientation so the burner seats evenly; reassemble parts in reverse order
• After installation, restore power/gas and verify proper burner operation; follow manufacturer's instructions for leak checks and testing

This burner seal is a replacement gasket that fits around a surface burner to help keep food and liquids out of the cooktop cavity and make cleanup easier. Simple wear replacement for torn or collapsed seals. What it does:

• Forms a protective gasket between the surface burner and cooktop to limit spills and debris entering the cavity
• Helps keep the burner cap seated correctly and reduces grime buildup around the burner area
• Makes routine cleaning faster by preventing trapped food and liquid
• Common signs you need this part: visible gap or torn seal around the burner, frequent debris buildup, or a burner cap that sits uneven

• Turn off the cooktop and gas supply and allow all parts to fully cool before starting.
• Remove the burner cap and lift out the old seal; align and press the new seal into place around the burner opening.
• Reinstall the burner cap, restore power/gas, and test burner operation for correct seating and appearance.

This replacement power cord restores electrical connection to your appliance so it powers on safely and reliably. Designed as a direct-fit electrical cord to replace damaged, cut, or worn factory cords. What it does

• Provides the primary AC power connection from the wall outlet to the appliance.
• Replaces frayed, cracked, or damaged cords that can cause intermittent power or safety hazards.
• Helps resolve no-power or intermittent-power symptoms when the cord is the root cause.
• Restores a secure connection at the appliance and outlet when properly installed.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Route the cord through the appliance's strain relief and secure all wiring connections per the appliance's wiring diagram.
• Use insulated tools and avoid pinching or sharp bends in the cord; replace strain reliefs if damaged.

This replacement part is called a control knob. This part is used on ranges, stoves, and ovens and is used to indicate the heat level during cooking or baking. The knob correlates directly with the temperature of the cooktop and the oven itself to regulate the temperature during cooking and baking. The user might need to replace this part if the current knob will not turn, is bent, broken, missing completely, or if it rotates incorrectly. The repair for this part is generally easy. There are no major tools that are used and most knobs are able to be removed quite easily so that the new ones can clip on. Once correctly installed the part is able to be used right away and should work with any setting already on the oven or stove. Keeping in mind brand compatibility, this knob will work on old ranges or stoves as well. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from manufacturers like Frigidaire, Electrolux, Gibson, Kelvinator, Westinghouse, and others.

This replacement door gasket creates a tight seal around the refrigerator or freezer door to help maintain interior temperature and reduce energy loss. It restores proper door closure for better cooling and frost prevention. What it does:

• Seals the door perimeter to keep cold air in and warm air out
• Helps maintain consistent internal temperatures for food safety
• Reduces frost build-up and compressor runtime due to air leaks
• Restores proper door alignment and closing performance

• Remove old gasket and clean the door mating surface before installing the new gasket
• Start installation at a corner and work around the door to ensure an even fit
• Gasket may be warmed slightly (hot water or hair dryer on low, if needed) to improve flexibility for positioning
• Unplug or disconnect power to the appliance before beginning work

Note: Quantity of two brackets

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.
