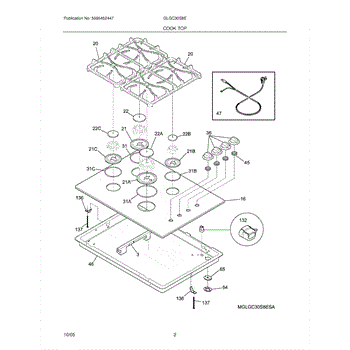

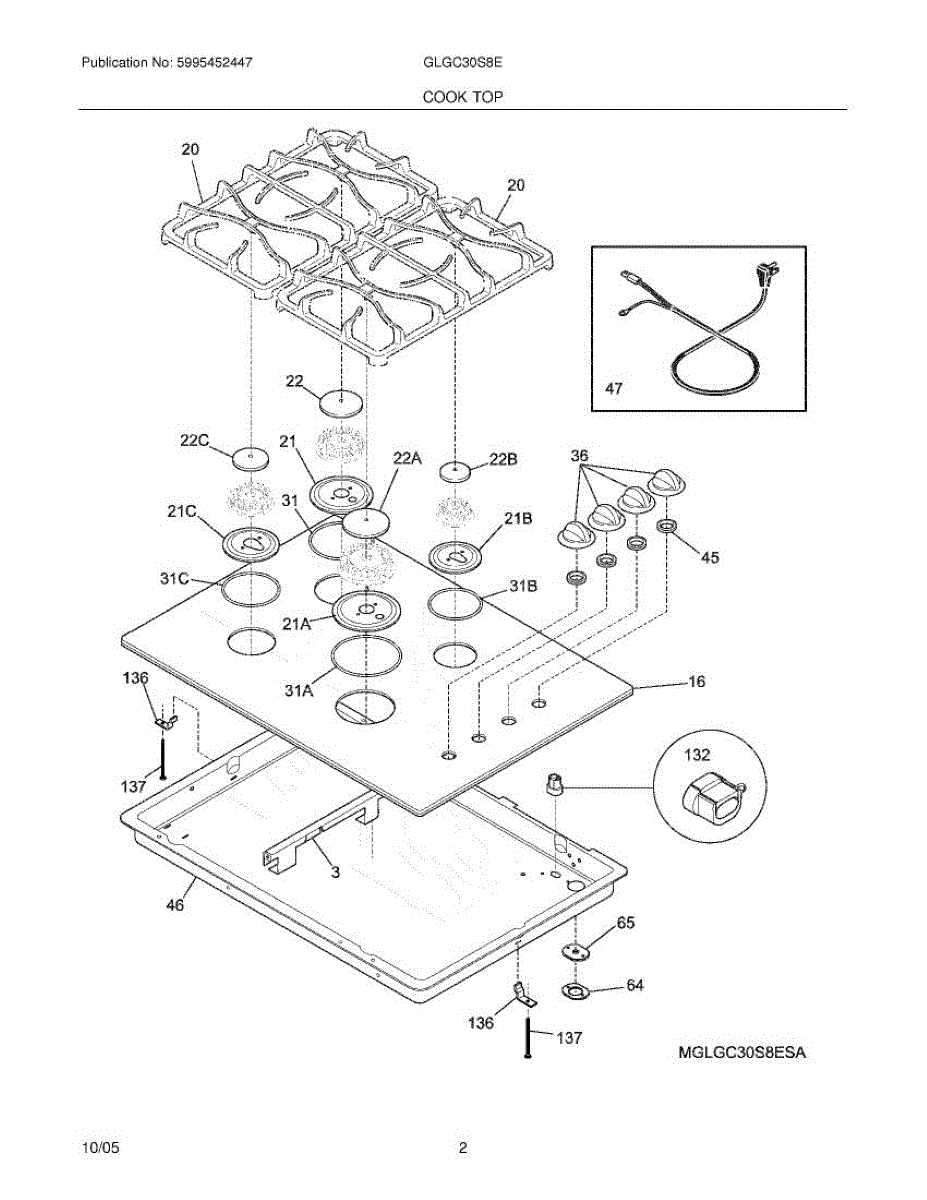

Parts for Frigidaire GLGC30S8EBA: 03 - Maintop Parts

This is a double grate that is used on gas cooktops. The purpose of this part is to provide a stable surface for cooking ware to sit while cooking. This part sits on top of the burner.This is a very sturdy and durable part but if it breaks for any reason or begins to wear out, it is easy to replace. The replacement process simply involves lifting out the old double grate and placing the new one in its place. Allow the cooktop time to cool down completely before trying to replace this part.This double grate is sold individually as a replacement part. It is compatible with gas cooktop units that are manufactured by Frigidaire. This part comes directly from the manufacturer.

The burner skirt surrounds and supports the high-output burner assembly while directing proper airflow for efficient combustion. Positioned around the 14,000 BTU burner on the cooktop, it should be replaced if damaged, warped, or if it causes uneven heating or poor flame distribution.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

A surface burner skirt that covers and protects the heating element on your electric range cooktop. This metal component directs heat upward while shielding the element from spills and debris. Replace it when the skirt is warped, discolored from overheating, or has cracks that affect heat distribution.

Seals around cooktop burner to prevent spills from entering burner housing and centers burner for even heating. Replace when hardened or cracked.

Replacement gasket that seals around surface burners to prevent spills from entering the cooktop cavity. Replace when hardened, cracked, or torn. Confirm fit with your model number before ordering.

Seals the gap between burner and cooktop to prevent spills from leaking underneath. Replace when seal becomes discolored, cracked, or loses flexibility.

Seals between burner and cooktop to prevent spills and air leaks. Replace when cracked, hardened, or crumbling. Confirm fit with your model number.

Replace your cooktop's control knob if the original is cracked, broken, or missing. This knob installs on the control panel for burner adjustment.

Replacement power cord for cooktops and ranges. Connects appliance to wall outlet. Install when original cord is damaged, cut, frayed, or missing.

This is a flexible gasket that seals the oven door to the cabinet, preventing heat from escaping during cooking. It fits around the perimeter of the oven opening and helps maintain consistent internal temperatures. Replace this seal if you notice excessive heat radiating from the oven door, uneven cooking results, or if the gasket is visibly torn, hardened, or no longer making full contact with the door.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This bracket kit secures your cooktop to the countertop during installation, providing stable mounting support. The brackets prevent movement and ensure proper alignment with the cutout opening. Install these brackets if your cooktop shifts, sits unevenly, or needs to be properly secured to meet safety requirements.

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
