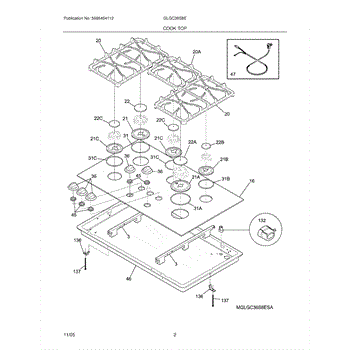

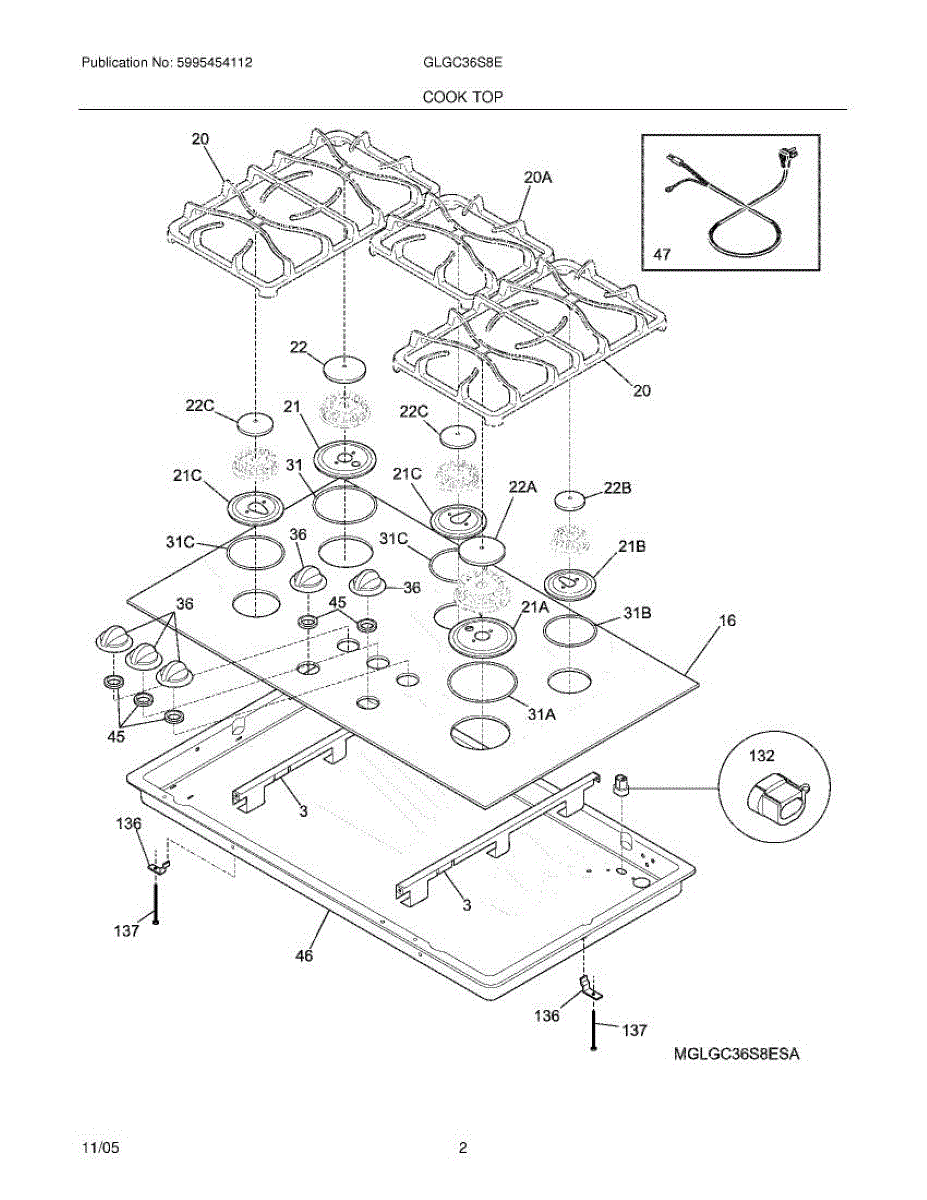

Parts for Frigidaire GLGC36S8EBA: 03 - Maintop Parts

This is a double grate that is used on gas cooktops. The purpose of this part is to provide a stable surface for cooking ware to sit while cooking. This part sits on top of the burner.This is a very sturdy and durable part but if it breaks for any reason or begins to wear out, it is easy to replace. The replacement process simply involves lifting out the old double grate and placing the new one in its place. Allow the cooktop time to cool down completely before trying to replace this part.This double grate is sold individually as a replacement part. It is compatible with gas cooktop units that are manufactured by Frigidaire. This part comes directly from the manufacturer.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

This burner seal fits around a cooktop burner to help keep spills and debris out of the burner housing and provide a stable, centered burner location for consistent heating. It restores a flush seal between the burner and the cooktop surface. What it does:

• Forms a protective gasket around the burner to block food, grease and liquids from entering the cooktop cavity
• Cushions and centers the burner, reducing wobble and promoting even element-to-surface contact
• Helps reduce smoke or odors caused by spills burning on exposed internal surfaces
• Restores proper fit after a cracked, torn or missing seal

• One burner seal

• Disconnect power to the appliance before servicing; if the range is gas, shut off the gas supply
• Remove the burner or lift the cooktop per your model's service instructions to access the seal area
• Clean and dry the mounting surface thoroughly before installing the new seal
• Press the seal into place; do not stretch excessively or use solvents/adhesives unless your model's instructions specify

This burner seal is a replacement gasket that fits around a surface burner to help keep food and liquids out of the cooktop cavity and make cleanup easier. Simple wear replacement for torn or collapsed seals. What it does:

• Forms a protective gasket between the surface burner and cooktop to limit spills and debris entering the cavity
• Helps keep the burner cap seated correctly and reduces grime buildup around the burner area
• Makes routine cleaning faster by preventing trapped food and liquid
• Common signs you need this part: visible gap or torn seal around the burner, frequent debris buildup, or a burner cap that sits uneven

• Turn off the cooktop and gas supply and allow all parts to fully cool before starting.
• Remove the burner cap and lift out the old seal; align and press the new seal into place around the burner opening.
• Reinstall the burner cap, restore power/gas, and test burner operation for correct seating and appearance.

This burner seal is a replacement gasket that fits around a cooktop burner to help keep the burner area sealed and easier to clean. It helps maintain a proper seal between the burner base and the cooktop surface. What it does:

• Seals the gap between the burner and cooktop to limit food, grease and liquid from entering the burner cavity
• Helps keep the burner seated and reduces wobble or misalignment
• Supports cleaner cooktop surfaces and simplifies wipe-downs
• Can help maintain consistent ignition area by keeping debris away from the burner base

• Turn off power to the appliance and ensure the cooktop is completely cool before starting.
• Remove burner grate and lift off the burner cap and burner head as needed to access the seal.
• Clean the seating area of any grease or debris, then press the new seal evenly into place before reassembling.

This surface burner seal sits between the burner and the cooktop opening to block spills and air leaks, helping the burner seat correctly and keeping the cooktop area cleaner.

• Creates a tight seal between the surface burner and the cooktop opening
• Helps prevent liquids and debris from getting under the cooktop
• Supports proper burner alignment and consistent heat/flame
• Replace if torn, brittle, swollen, or permanently compressed; common signs include seepage under the top, uneven heating/flame, or the burner not sitting level

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the cooktop to cool completely.
• Remove grates, burner cap, and burner head/base as applicable; lift off the old seal.
• Clean the mating surfaces; position the new seal evenly around the opening.
• Reassemble burner parts and test for proper seating and even heating/flame.

This replacement power cord restores electrical connection to your appliance so it powers on safely and reliably. Designed as a direct-fit electrical cord to replace damaged, cut, or worn factory cords. What it does

• Provides the primary AC power connection from the wall outlet to the appliance.
• Replaces frayed, cracked, or damaged cords that can cause intermittent power or safety hazards.
• Helps resolve no-power or intermittent-power symptoms when the cord is the root cause.
• Restores a secure connection at the appliance and outlet when properly installed.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Route the cord through the appliance's strain relief and secure all wiring connections per the appliance's wiring diagram.
• Use insulated tools and avoid pinching or sharp bends in the cord; replace strain reliefs if damaged.

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
