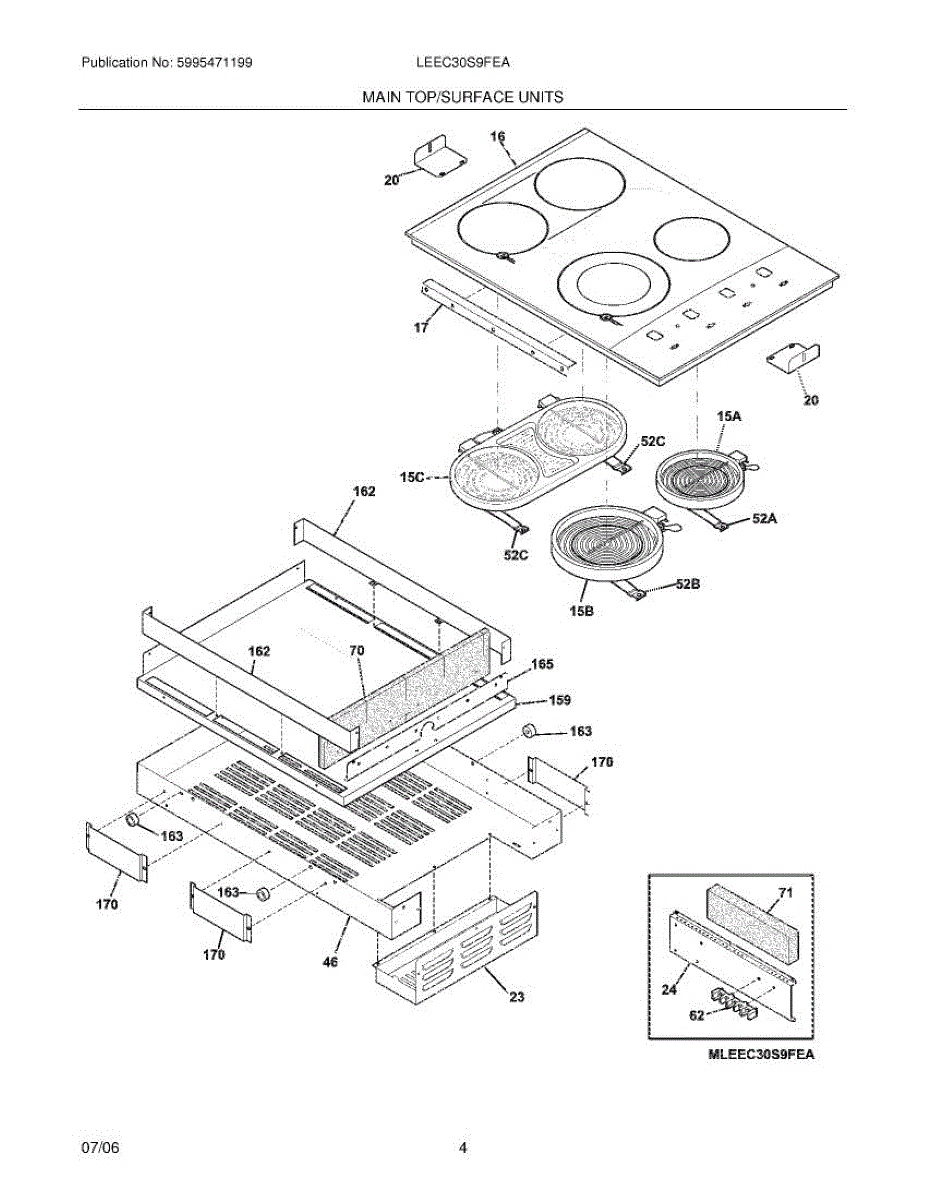

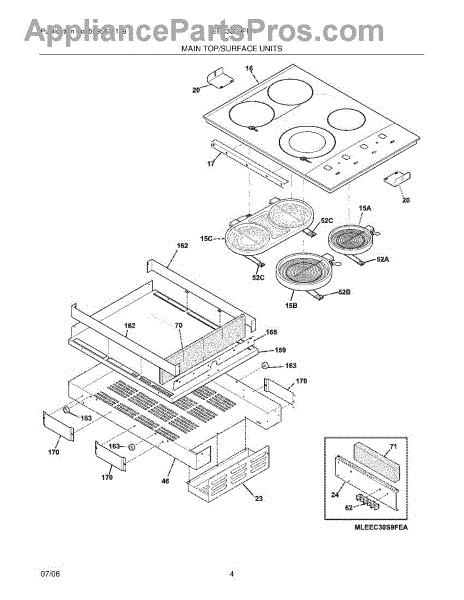

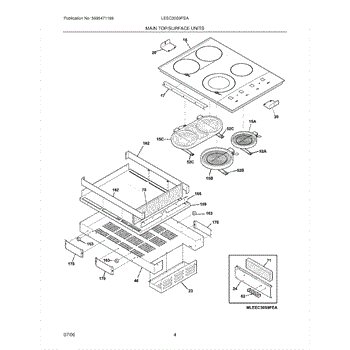

Parts for Frigidaire LEEC30S9FEA: 05 - Maintop Parts

6 inch, 1200 watt single radiant surface element.

This part is a replacement surface element designed for use with various different models of ranges and electric cooktops.This part supplies the heat to the cooktop and thus is critical for proper appliance functionality. If the current surface element is worn, malfunctioning, or in any way rendered ineffective, it will need to be immediately replaced. Ensure the range is entirely disconnected from the power source before attempting to replace this part. Work gloves should be worn whenever attempting appliance repairs.This is a genuine OEM part made by Frigidaire and has been sourced directly from the manufacturer. This surface element is suitable for use on a variety of range models manufactured by Frigidaire, Electrolux, Gibson, Kelvinator, and some other brands. It is a genuine OEM part and thus is manufactured from high-quality, durable materials. This part is sold individually.

This replacement surface element restores proper heating on a 6-inch burner, so you can cook evenly and bring pans up to temperature as expected.

• Heats cookware on a 6-inch cooktop position
• Common failure signs: burner won't heat, heats intermittently, or trips off under load
• Restores consistent, controllable surface heat
• Direct fit for the designated element location

• Disconnect power before servicing
• Allow the cooktop to cool fully before handling
• Lift/remove the old element carefully to avoid damaging terminals or receptacle
• Inspect and replace the element receptacle as needed

A replacement burner box that secures and routes the cooktop's gas and ignition components to keep burners operating safely and reliably. Restores proper alignment and support for valves, igniters and burner heads. What it does:

• Houses and positions gas valves, igniters and burner assemblies for a gas cooktop
• Routes gas from the manifold to each burner for consistent delivery
• Protects internal components from spills and directs heat away from controls
• Can help resolve symptoms such as burners not lighting, irregular flames, or gas odors near the cooktop

• Turn off gas supply and disconnect power before starting any service
• Replacement may require removing the cooktop and disconnecting gas lines
• Inspect and replace any damaged gaskets or mounting hardware during installation
• Follow OEM service instructions and test for leaks and proper ignition after reinstalling

Used on the 1200 watt element

This element mounting spring secures a surface cooktop heating element to the range, keeping the element stable and ensuring consistent electrical contact for reliable heating. Replaces a worn or missing spring to restore proper element fit. What it does

• Holds the surface heating element in place under the cooktop or in the drip pan.
• Maintains stable mechanical and electrical contact so the element heats evenly.
• Prevents element wobble, movement, or poor seating that can cause intermittent heating.
• Commonly needed when an element drops, rattles, or fails to make solid contact.

• Disconnect power to the appliance before starting any repair.
• Remove the element and/or drip pan per the range service instructions to access the spring.
• Install the spring in the same orientation as the original; ensure the element seats fully and securely.

Used on the 2500 watt element

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This deflector directs refrigerated air inside the compartment to help even cooling and protect stored items from direct airflow. It restores intended airflow paths so the appliance cools more consistently. What it does:

• Guides airflow from the evaporator/fan to distribute cold air evenly
• Reduces spots of uneven temperature and helps maintain consistent food temperatures
• Helps prevent direct fan blow on food that can cause localized freezing
• Works with cabinet airflow components to keep circulation operating as designed

• Refer to your model's service manual or parts diagram for the correct mounting location and orientation
• Power off and unplug the appliance before accessing internal compartments or removing panels
• Handle plastic parts carefully to avoid cracking; use appropriate fasteners when reinstalling

Specs: 10-32 X 0.375

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

The Support Roller Washer is an OEM part for Frigidaire dryers, designed to ensure the smooth and stable operation of the dryer drum. Positioned between the support roller and the shaft, this washer plays a critical role in reducing friction and wear, allowing the drum to rotate smoothly and quietly.

Causes of these symptoms often stem from normal wear and tear, which can lead to the degradation of the washer over time.

Symptoms of a bad Dryer Support Roller Washer include:

• Unusual noises, such as squeaking or grinding, indicating increased friction during drum rotation
• The dryer drum appears to wobble or is misaligned during operation
• Increased vibration of the dryer, which can lead to wear on other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
