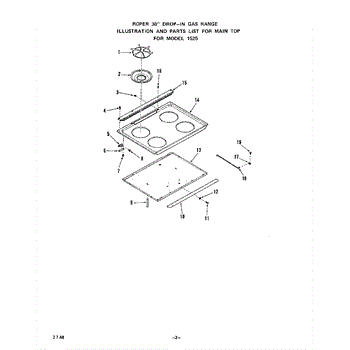

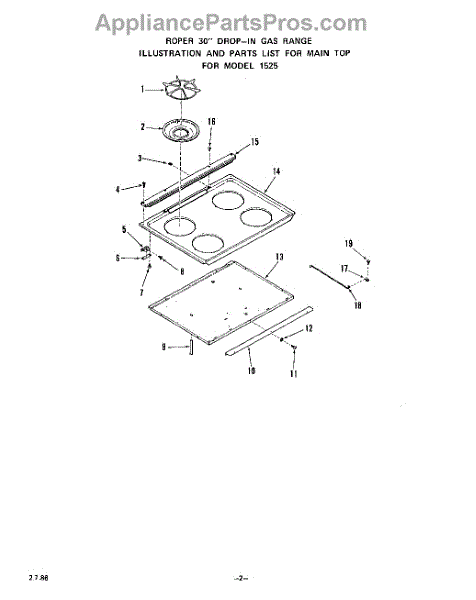

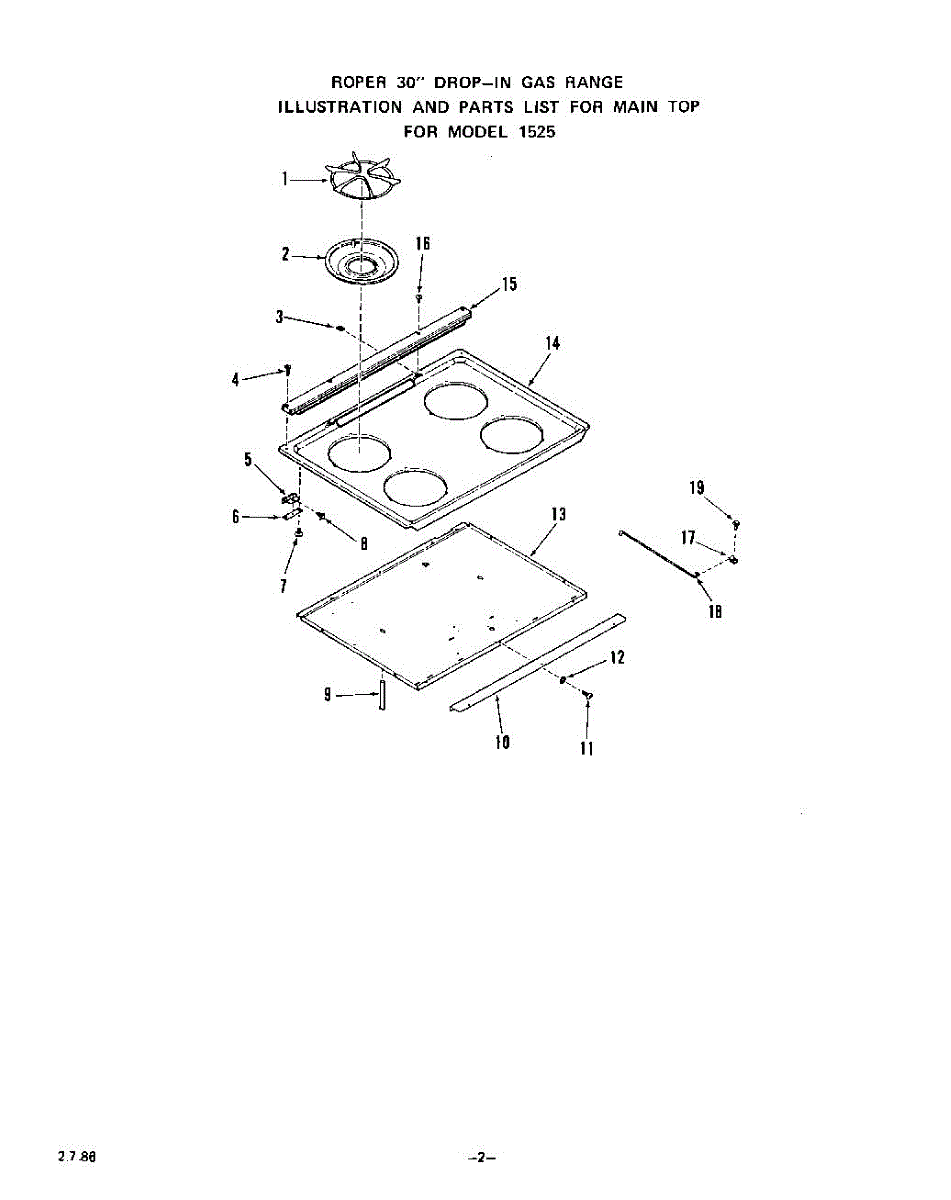

Parts for Whirlpool 1525W2A: 03 - Maintop Parts

This exhaust vent extension restores proper exhaust airflow by lengthening or adapting the appliance exhaust outlet to the vent duct. It helps maintain safe ventilation and reduces backpressure that can cause poor performance or odors. What it does:

• Extends or adapts the appliance exhaust outlet to reach the home vent duct
• Directs exhaust airflow to reduce backflow and help prevent overheating
• Helps resolve symptoms like weak venting, lingering odors, or unusual appliance cycling
• Provides a stable connection point for the exhaust duct to improve sealing and airflow

• Turn off and disconnect power (and gas if applicable) to the appliance before installing.
• Use proper fasteners and high-temperature-rated duct tape or clamps as recommended by the appliance manufacturer.

This drip pan sits beneath a surface burner to catch spills and boil-overs, protecting the cooktop and making cleanup easier. Replacing a stained or damaged pan helps the burner seat correctly and restores a clean appearance.

• Collects drips and splatters under the burner area
• Shields the cooktop surface from heat and residue buildup
• Provides proper seating/alignment for burner components
• Common signs it's time to replace: rust, heavy discoloration, pitting, warping, or a missing/ill-fitting pan

• Allow the appliance to cool; disconnect power or shut off gas per your model's instructions
• Remove the components above the pan (grate/ burner parts or element, as designed for your model)
• Lift out the old pan, clean the area, and position the new pan with alignment features oriented correctly
• Reinstall components and verify proper seating and operation

Size: 10-32 inch.

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

Includes 12 washers.

ST10-16 X 7/16"
