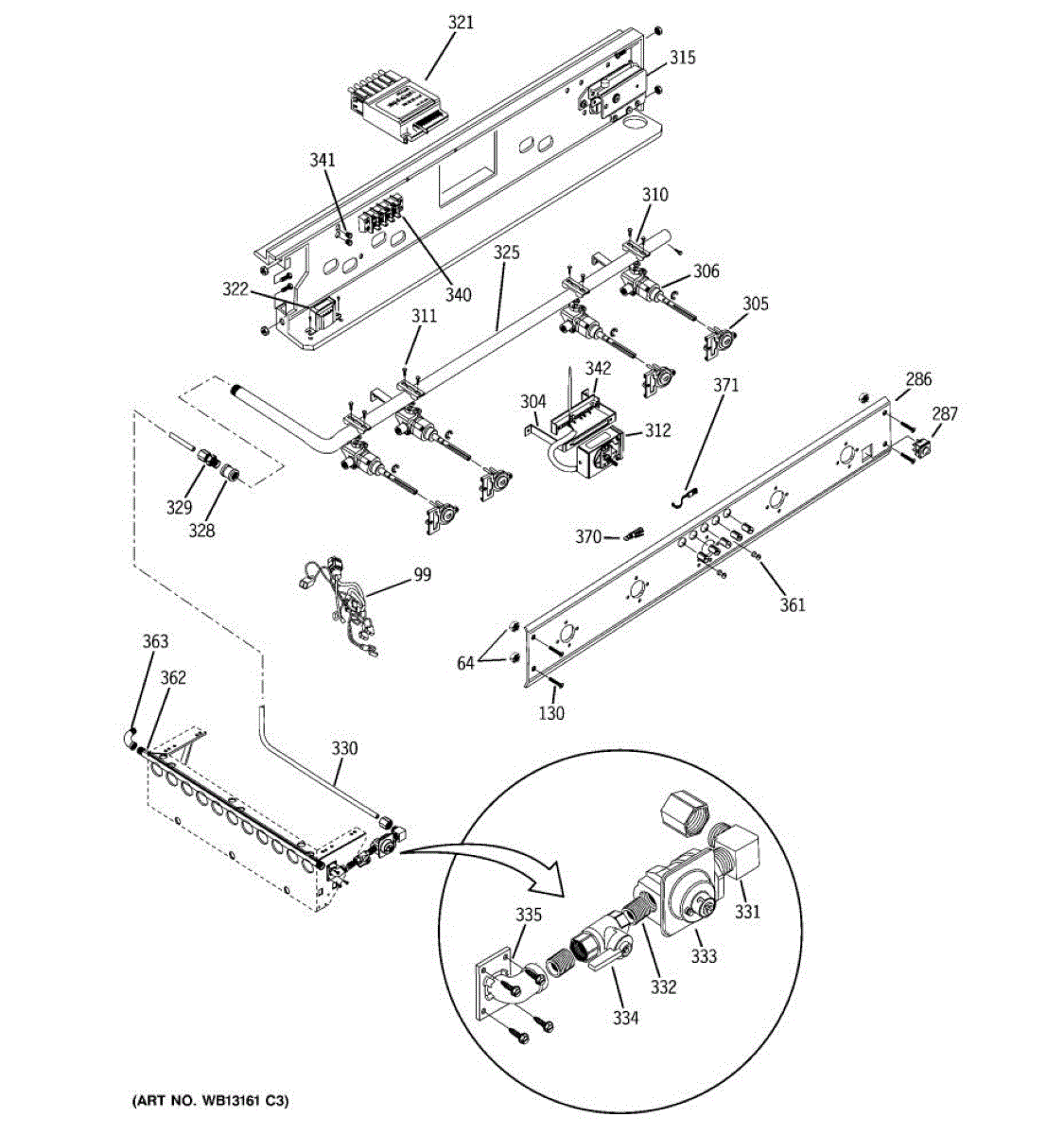

Parts for Ge ZDP30N4H2SS: 02 - Manifold Assembly Parts

This is the surface burner igniter switch that mounts on the valve stem and closes the circuit to spark the burners when you turn the knob. Replacing a faulty switch restores consistent, reliable ignition on your gas cooktop or range.

• Closes when the knob is turned to send power to the spark module
• Helps resolve intermittent or no spark at one or more burners
• 12 o'clock orientation matches the valve shaft's flat position for proper fit

• Disconnect power and shut off gas before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions before transfer; replace one switch at a time
• Verify correct shaft orientation (12 o'clock) to match your valve style

A 10-32 x 1 hex head screw used to secure appliance components where a standard machine screw is required. It provides a reliable fastener for panels, brackets, and assemblies that use a 10-32 thread. What it does:

• Fastens panels, brackets, and small assemblies using a 10-32 UNC thread.
• Replaces stripped, missing, or damaged hex-head machine screws.
• Restores secure mounting to reduce rattling or loose parts.
• Works where a 1-inch length screw with a hex head is specified.

• One 10-32 x 1 hex head screw.

• Use the correct 10-32 driver or socket to avoid rounding the head.
• Do not overtighten; snug until parts are secure to prevent thread or component damage.
• Inspect mating threads and replace if cross-threaded or damaged.
• Follow all appliance safety guidelines: disconnect power and water before servicing.

This thermostat door lock assembly secures the temperature control area and helps ensure consistent thermostat operation. It replaces a worn or broken door lock to restore proper door closure and temperature performance. What it does

• Secures the thermostat/temperature control compartment door to help maintain consistent internal temperatures.
• Replaces damaged or broken lock components that prevent the door from latching properly.
• Helps stop drafts and reduce temperature fluctuation caused by a loose or non-latching control door.
• Common symptom: door won't stay closed or the thermostat cover won't latch.

• One thermostat door lock assembly.

• Disconnect power to the appliance before attempting any repair to avoid shock or injury.
• Handle plastic components carefully to avoid breakage; use appropriate hand tools.
• If mounting hardware or trim is damaged, replace those parts as well.

This spark module controls surface-burner ignition on gas cooktops and ranges, sending high-voltage pulses to the igniters when you turn a knob. Replacing a failed module restores quick, consistent sparking so burners light reliably.

• Generates and routes high-voltage pulses to the surface burner igniters
• Triggers sparking when a burner knob is turned to the Ignite/Light position
• Common symptoms: no spark or clicking on any burners; multiple burners won't ignite; weak or intermittent sparking
• Restores dependable ignition performance across the surface burners

• Disconnect electrical power and shut off gas supply before servicing
• Access the module behind the control area or beneath the cooktop, depending on model
• Label and transfer wires one at a time to the new module to maintain correct placement
• Mount securely and ensure a good ground; test burner ignition before reassembly

This high-voltage transformer steps line voltage up to power the magnetron, producing microwave energy. Replacing a failed transformer can restore heating when the oven runs but doesn't heat or hums without cooking.

• Supplies the high voltage the magnetron needs to generate microwave energy
• Failure may present as the microwave running but not heating
• May cause a loud hum or buzz with no heat
• Can blow an internal fuse or trip a breaker immediately after pressing Start

• Disconnect power before service; the high-voltage capacitor can retain a dangerous charge even when unplugged
• Support the heavy transformer during removal/installation and reuse original mounting hardware and wire positions
• After installation, verify secure connections in the high-voltage circuit (capacitor and diode) before testing
