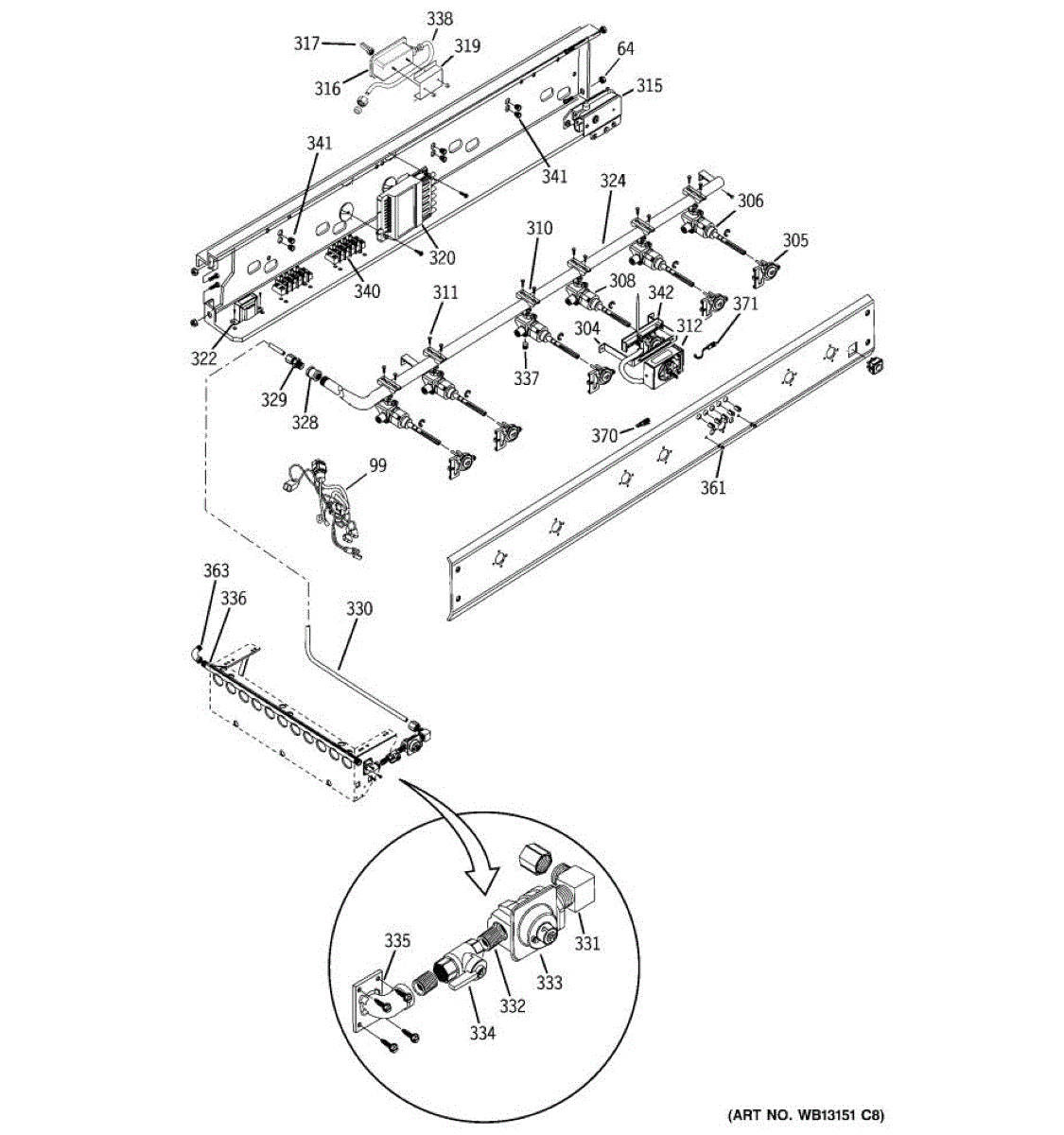

Parts for Ge ZDP36N4RH2SS: 05 - Manifold Assembly Parts

This is the surface burner igniter switch that mounts on the valve stem and closes the circuit to spark the burners when you turn the knob. Replacing a faulty switch restores consistent, reliable ignition on your gas cooktop or range.

• Closes when the knob is turned to send power to the spark module
• Helps resolve intermittent or no spark at one or more burners
• 12 o'clock orientation matches the valve shaft's flat position for proper fit

• Disconnect power and shut off gas before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions before transfer; replace one switch at a time
• Verify correct shaft orientation (12 o'clock) to match your valve style

A 10-32 x 1 hex head screw used to secure appliance components where a standard machine screw is required. It provides a reliable fastener for panels, brackets, and assemblies that use a 10-32 thread. What it does:

• Fastens panels, brackets, and small assemblies using a 10-32 UNC thread.
• Replaces stripped, missing, or damaged hex-head machine screws.
• Restores secure mounting to reduce rattling or loose parts.
• Works where a 1-inch length screw with a hex head is specified.

• One 10-32 x 1 hex head screw.

• Use the correct 10-32 driver or socket to avoid rounding the head.
• Do not overtighten; snug until parts are secure to prevent thread or component damage.
• Inspect mating threads and replace if cross-threaded or damaged.
• Follow all appliance safety guidelines: disconnect power and water before servicing.

This thermostat door lock assembly secures the temperature control area and helps ensure consistent thermostat operation. It replaces a worn or broken door lock to restore proper door closure and temperature performance. What it does

• Secures the thermostat/temperature control compartment door to help maintain consistent internal temperatures.
• Replaces damaged or broken lock components that prevent the door from latching properly.
• Helps stop drafts and reduce temperature fluctuation caused by a loose or non-latching control door.
• Common symptom: door won't stay closed or the thermostat cover won't latch.

• One thermostat door lock assembly.

• Disconnect power to the appliance before attempting any repair to avoid shock or injury.
• Handle plastic components carefully to avoid breakage; use appropriate hand tools.
• If mounting hardware or trim is damaged, replace those parts as well.

This orifice hood directs and stabilizes the natural gas flow to a single range/oven burner for reliable combustion and consistent heat. It helps restore proper burner performance when the hood is damaged or worn. What it does:

• Guides natural gas from the orifice to the burner for steady flame and efficient combustion
• Commonly used when burners have weak, uneven, or unstable flames
• Can resolve ignition problems tied to damaged or misshapen hoods
• Supports correct flame shape to reduce yellow tipping or sooting

• Turn off gas supply and electrical power before servicing; follow local codes
• Install on the burner tube/orifice assembly as shown in your service manual
• Inspect surrounding fittings and gaskets; replace any damaged components
• After installation, check for gas leaks and proper burner operation

This spark module controls surface-burner ignition on gas cooktops and ranges, sending high-voltage pulses to the igniters when you turn a knob. Replacing a failed module restores quick, consistent sparking so burners light reliably.

• Generates and routes high-voltage pulses to the surface burner igniters
• Triggers sparking when a burner knob is turned to the Ignite/Light position
• Common symptoms: no spark or clicking on any burners; multiple burners won't ignite; weak or intermittent sparking
• Restores dependable ignition performance across the surface burners

• Disconnect electrical power and shut off gas supply before servicing
• Access the module behind the control area or beneath the cooktop, depending on model
• Label and transfer wires one at a time to the new module to maintain correct placement
• Mount securely and ensure a good ground; test burner ignition before reassembly

This high-voltage transformer steps line voltage up to power the magnetron, producing microwave energy. Replacing a failed transformer can restore heating when the oven runs but doesn't heat or hums without cooking.

• Supplies the high voltage the magnetron needs to generate microwave energy
• Failure may present as the microwave running but not heating
• May cause a loud hum or buzz with no heat
• Can blow an internal fuse or trip a breaker immediately after pressing Start

• Disconnect power before service; the high-voltage capacitor can retain a dangerous charge even when unplugged
• Support the heavy transformer during removal/installation and reuse original mounting hardware and wire positions
• After installation, verify secure connections in the high-voltage circuit (capacitor and diode) before testing

A 1/8" hex pipe plug that seals unused threaded openings to stop leaks and protect internal passages. Simple replacement for worn or missing plugs to restore proper sealing and safe operation. What it does:

• Threads into a 1/8" NPT threaded port to block unused pipe or port openings.
• Prevents fluid or gas leaks from inactive or removed fittings.
• Helps maintain proper pressure and system integrity in valves, manifolds, or housings.
• Common symptom: visible leakage or dripping from a threaded port where a plug is missing or damaged.

• Turn off and isolate electricity, gas, or water to the appliance before servicing.
• Use appropriate thread sealant (PTFE tape or approved pipe compound) if required by the appliance design.
• Thread by hand to start, then tighten with a wrench—avoid overtightening to prevent damage to threads or housing.
