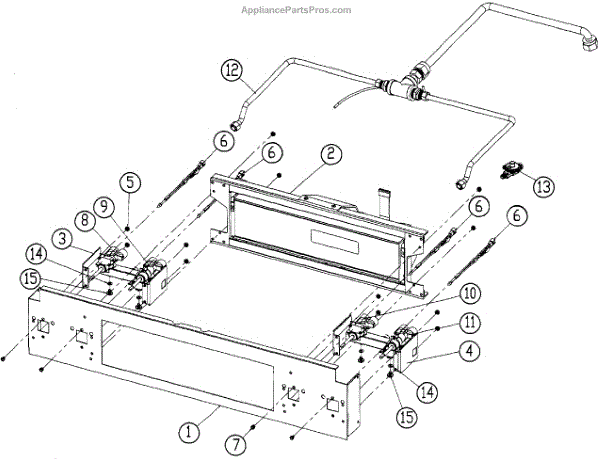

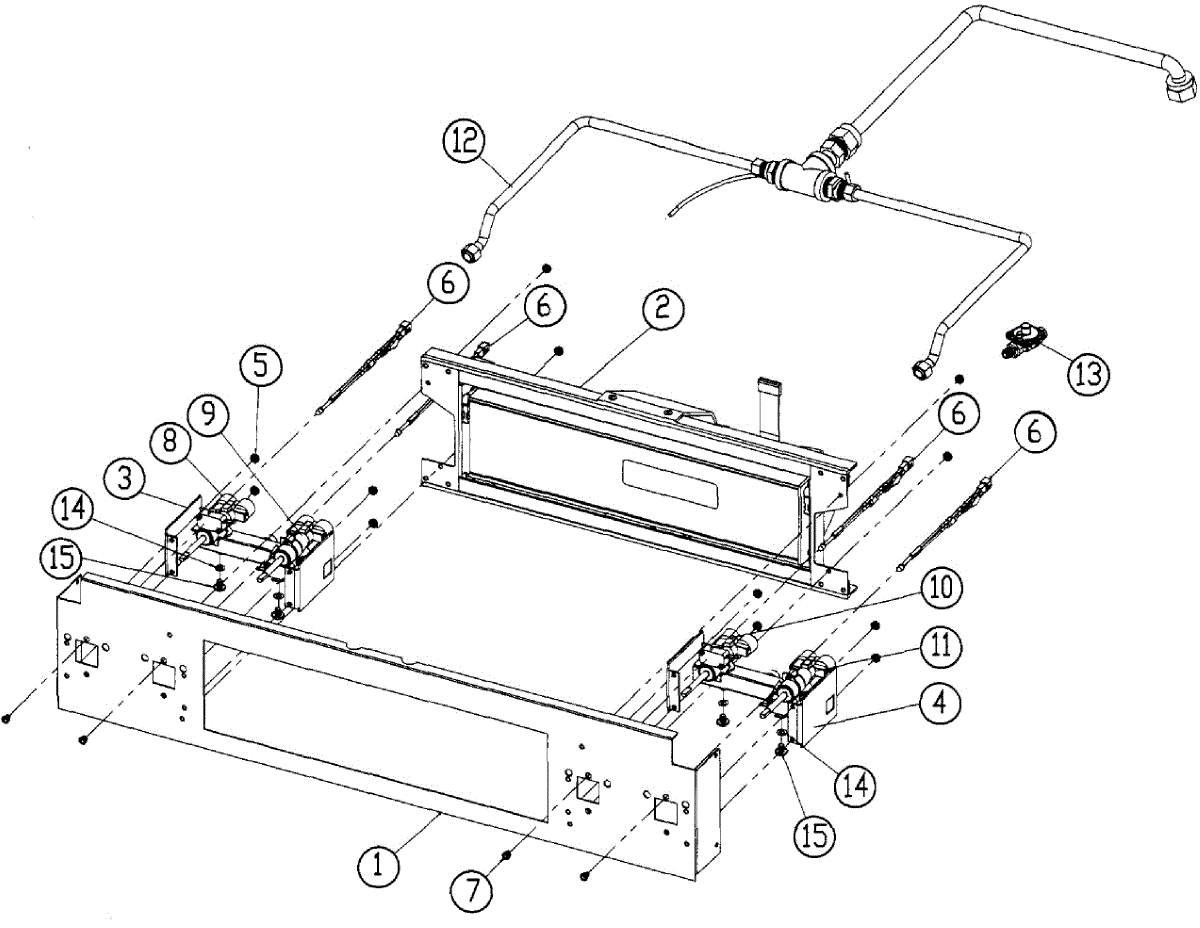

Parts for Dacor ER30DSCHNG: Manifold Parts

This LED socket assembly restores the high-intensity indicator lighting used on select cooktops to show an active cooking zone. Replace a failed module to bring back clear, consistent illumination. What it does:

• Provides bright LED illumination for a cooking zone indicator
• Restores visual feedback that a burner/zone is in use
• Replaces a failed or damaged LED socket/module
• Common symptoms: no light, dim or flickering light, intermittent operation, or physical damage

• One LED socket assembly

• Disconnect power at the breaker before servicing
• Allow the appliance to cool and protect the glass surface while working
• Access the module from beneath the cooktop; match connector orientation and mounting position
• Test illumination before final reassembly

This retaining ring secures the LED assembly in place, keeping indicator lights and display components stable for reliable operation. It's a small but important part that helps prevent loose or misaligned LED modules. What it does:

• Holds the LED assembly securely to the control/display area
• Prevents movement or rattling of indicator lights during operation
• Helps maintain proper alignment so LEDs remain visible and functional
• Can address symptoms like loose display trim, vibrating noises, or intermittently obscured LEDs

• Disconnect power before starting any repair to avoid shock or damage
• Handle the LED assembly and connectors gently to avoid breaking LEDs or wiring
• Use basic hand tools; avoid forcing the ring—align and snap into place per OEM guidance

This blue LED holder secures a blue indicator/lighting LED in place behind the control or panel, restoring stable illumination and correct LED positioning for visible status lights. What it does

• Holds and aligns a blue LED so the light displays correctly through the control or panel lens.
• Replaces broken, cracked, or melted holders that cause misaligned or non-visible LEDs.
• Helps stop LED wobble, intermittent contact, or shifting that can make lights dim or flicker.
• Fits into the OEM mounting location to maintain factory fit and light direction.

• Disconnect power before accessing controls or removing panels to prevent shock.
• Handle the LED and holder gently to avoid damaging the LED lens or leads.
• May require removal of the control panel or bezel; keep screws and small parts organized.

This regulator assembly controls LP gas pressure to the appliance's valve system, restoring correct burner and oven flame performance when the factory regulator is faulty. It helps ensure steady, adjustable gas flow for safe operation. What it does:

• Regulates LP gas pressure delivered to the appliance's valves and burners
• Can be used when burners have low, weak, or uneven flames
• Addresses issues where burners or oven fail to reach proper heat
• Supports proper gas delivery after conversion or regulator failure

• One regulator assembly (LP), 3/4 in

• Turn off gas supply and unplug the appliance before servicing
• Use proper gas fittings and thread sealant rated for gas; check for leaks after installation
• Tighten fittings securely but avoid over-torquing; follow OEM torque guidance if available
