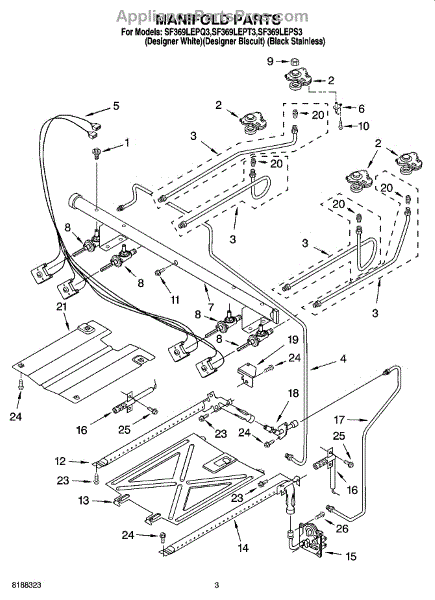

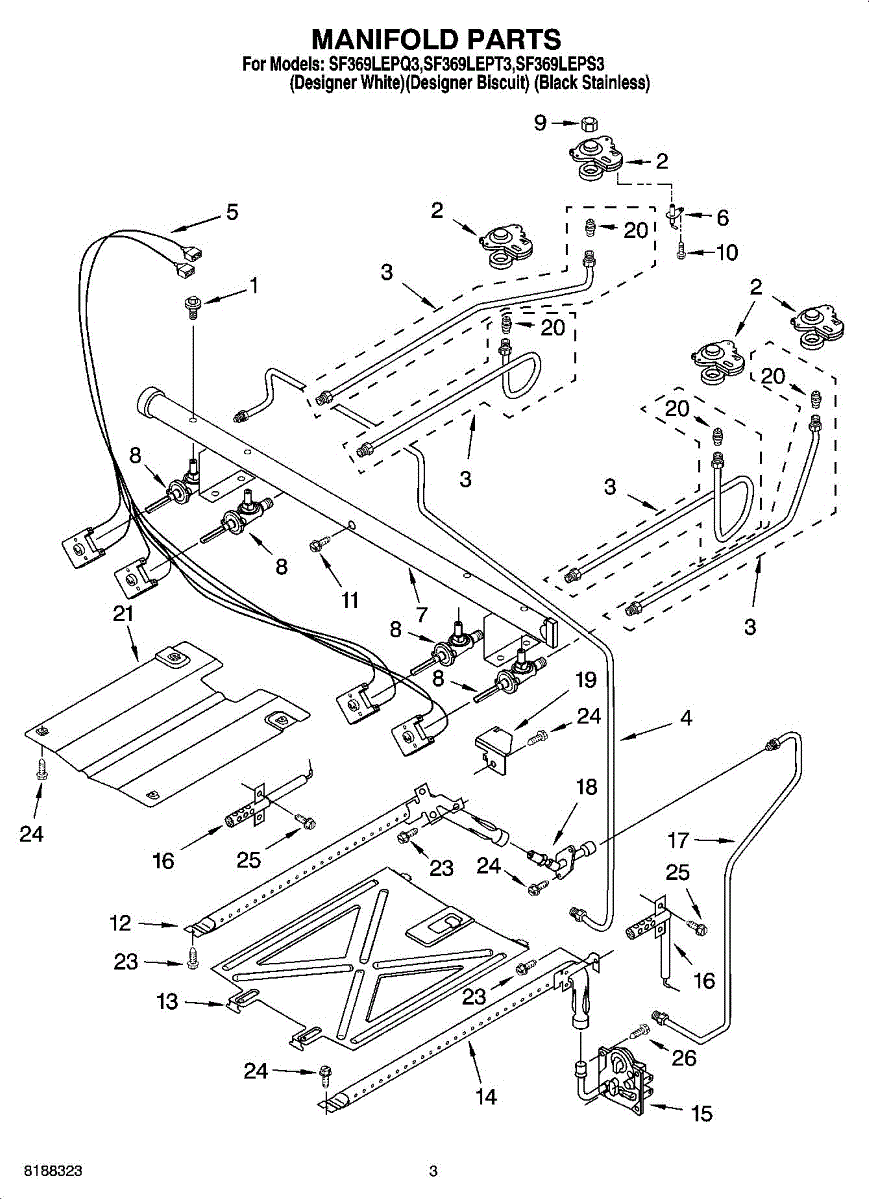

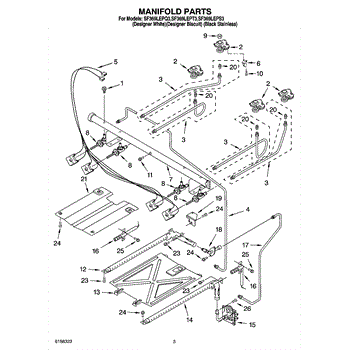

Parts for Whirlpool SF369LEPS3: 03 - Manifold Parts

This range burner base is a replacement part that is used for gas stovetops and ranges. This burner base directs gas to the burner head. It also holds the orifice. If this part of the range is broken or not working properly, it will not direct the gas where it needs to go. It could make it more difficult to head up the burner, and it could prove to be dangerous.While the metal pieces are durable and made to last, they may still need to be replaced. They could become dirty or corroded, or they could suffer damage when the range is moved. When replacing the burner base, owners will first want to shut off the gas supply to the stove and ensure the burner is completely cool before starting. When repairing, owners should also wear gloves to protect their hands.The burner base is compatible with many models of ranges from Whirlpool, Roper, Crosley, Estate, and Inglis. This is a genuine OEM part that has been sourced from the manufacturer. It is sold individually.

Tubing with orifice.

Tubing with orifice.

Tubing with orifice. Location: Left front.

Tubing with orifice. Location: Left rear.

This replacement wire harness routes power and signals between the control switches and the appliance wiring, restoring reliable electrical connections for proper control operation and reducing intermittent or failed switch responses. What it does:

• Connects the control/switch manifold to the appliance's main wiring harness to enable switch signaling and power flow
• Restores intermittent or non-working switches caused by damaged or loose wiring connections
• Prevents misrouting and poor contact that can cause erratic control behavior
• Provides correct plug-to-plug replacement for a straightforward wiring restore

• Disconnect power to the appliance before starting any repair to avoid shock risk
• Match connector shapes and colors; route harness to avoid pinch points and hot surfaces
• Reconnect all plugs fully until they click; secure with original clips or fasteners

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface burner valve regulates gas flow to a top burner on your gas range or cooktop. The simmer version enhances low-heat control so the flame adjusts smoothly from a steady simmer to a full boil. What it does:

• Regulates gas to the surface burner as you turn the knob, controlling flame size
• Simmer variant improves stable low-flame performance at lower settings
• Common failure symptoms: burner won't light though the igniter sparks, flame won't adjust or stays at one level
• Knob feels stiff/binds or the stem no longer aligns correctly with settings

• 1 surface burner valve

• Disconnect electrical power and shut off the gas supply before servicing
• Remove the control knob and access the valve/manifold from the control panel or cooktop top
• Note the original valve's orientation for your burner position; transfer mounting hardware as needed and tighten all gas connections securely
• After reassembly, restore gas and check every joint for leaks with an approved leak-detection solution; verify proper flame and adjustment

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

The Gas Valve is an OEM part for Whirlpool ovens and ranges. It regulates the flow of gas to the oven burner, ensuring safe and efficient operation by controlling the amount of gas released for ignition and maintaining a steady flame during cooking.

Causes of a bad gas valve can include wear and tear from regular use, exposure to high temperatures, or damage from gas impurities.

Symptoms of a bad gas valve include:

• The oven not heating or taking a long time to heat up
• The smell of gas when the oven is turned on
• Inconsistent or uneven heating
• The oven failing to maintain the set temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Spark Igniter is an OEM replacement part for Whirlpool gas ranges. Located inside the oven cavity it initiates combustion using high-voltage electricity. This is a broil igniter for the upper (broil) burner.

Causes of malfunction relate primarily to element degradation from extended heating cycles. Exposure to grease or other residue accumulation shortens the service life by insulating the hot surface.

Symptoms involve:

• Inability to ignite gas burners using the automatic igniter
• Safety issues arise requiring manual lighting with matches or lighters
• Difficulties baking or broiling without consistent flame generation
• Element replacement prevents further problems and safety hazards

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This spud orifice regulates the flow of natural gas to a burner, helping maintain the correct flame size for safe, efficient cooking. It replaces worn or damaged orifices to restore reliable ignition and burner performance. What it does:

• Meters natural gas to the burner to produce the proper flame for cooking
• Helps maintain consistent heat output and stable ignition
• Commonly replaced when flames are weak, uneven, yellow-tipped, or the burner won't light reliably
• Compatible with factory burner assemblies that use a spud-style orifice

• Turn off gas supply and unplug the appliance before servicing
• Use appropriate tools; avoid overtightening the orifice when installing
• After installation, check for gas leaks and proper burner operation before regular use

This spud orifice controls the gas flow to a burner, ensuring proper flame size and consistent cooking or baking performance. It replaces a worn or damaged natural-gas orifice to restore safe, reliable burner operation. What it does:

• Meter gas to the burner for correct flame height and even heat
• Helps prevent weak flames, uneven cooking, or ignition issues
• Restores proper combustion when the original orifice is clogged or damaged
• Works with the burner tube and manifold to maintain oven/range performance

• Only install with the appliance disconnected from gas and power; follow local codes
• Use correct torque and fittings; check for leaks with a soap solution or approved leak detector
• Replace only with the same or manufacturer-approved orifice size for safe operation

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal
