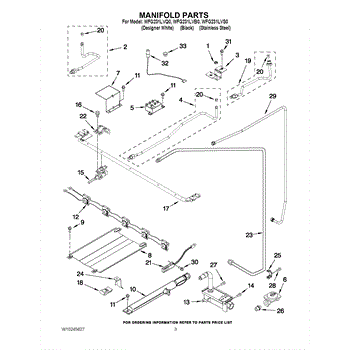

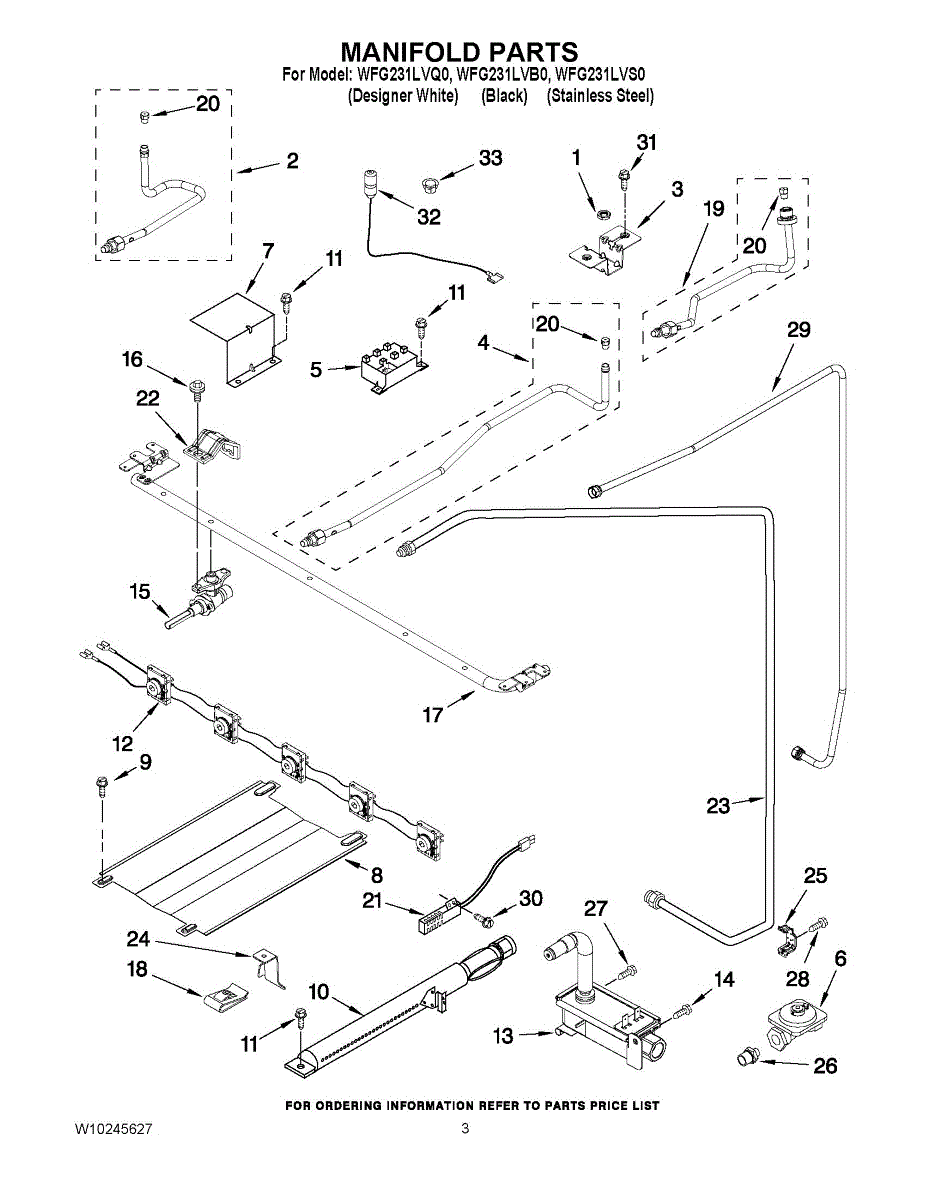

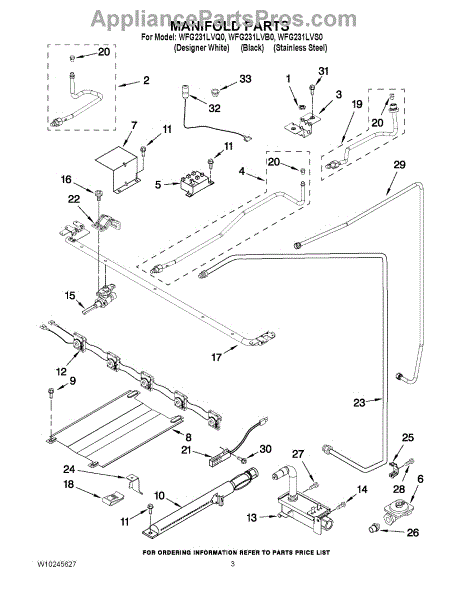

Parts for Whirlpool WFG231LVB0: 03 - Manifold Parts

A small lock-style nut that secures a threaded shaft or fastener to prevent loosening from vibration and normal use. Restores a firm connection so the appliance parts stay aligned and operate quietly and reliably. What it does:

• Locks a threaded connection in place to prevent backing off from vibration
• Keeps rotating or mounted components secured to reduce wobble or movement
• Helps stop noises caused by loose fasteners or shifting parts
• Restores proper fit where a worn or missing nut allowed play

• Disconnect power (and water if applicable) before starting any repair
• Use the correct size wrench/socket and hold mating hardware to avoid twisting other components
• Inspect threads for damage; replace mating fasteners if stripped
• Tighten securely to OEM guidance; avoid over-tightening which can damage threads

This front burner gas tube routes natural gas from the manifold to a front surface burner on compatible gas ranges for a stable flame and dependable ignition. Replace if kinked, corroded, or leaking.

• Directs natural gas from the manifold to a front cooktop burner
• Helps maintain proper flow for consistent flame height and reliable ignition
• Restores performance when the original tube is blocked, bent, or damaged
• Common symptoms: front burner won't light, weak/uneven flame, gas odor, visible cracks or kinks

• Shut off gas supply and power; allow the appliance to cool before servicing
• Support fittings with two wrenches; avoid overtightening and do not kink the tube
• Transfer any reusable orifices/seals from the original if applicable; replace damaged seals
• After installation, restore gas and check all joints for leaks with a soap-and-water solution

This mounting bracket secures a surface burner assembly to the cooktop, keeping the burner stable for safe, even cooking. It replaces a worn or broken bracket to restore proper burner alignment and support. What it does:

• Holds the surface burner or burner bowl firmly in place on the cooktop
• Prevents burner wobble, misalignment, and uneven heating
• Helps maintain correct spacing for safe gas/electric operation
• Addresses symptoms like a loose or tilted burner or rattling during use

• Disconnect power and gas supply before beginning work
• Remove burner head and grates as needed to access the bracket
• Use proper hand tools; avoid overtightening fasteners

This rear venturi tubing directs water flow and helps create the suction needed for proper drain and recirculation functions in the washer. Replacing a worn or cracked venturi restores reliable water flow and reduces leaks or siphoning issues. What it does:

• Channels water to the venturi assembly to help create suction for proper draining and recirculation
• Prevents leaks and unwanted siphoning when intact
• Helps maintain correct water flow during fill and drain cycles
• Can cause filling/draining problems or gurgling noises when cracked or clogged

• Disconnect power and turn off water supply before starting any repair
• Access may require removing the washer cabinet or rear panel; follow your service manual
• Inspect clamps and adjacent hoses; replace clamps if corroded or damaged
• Replace with this OEM venturi tubing for best fit

This spark module controls ignition for the surface burners, generating high-voltage pulses to the electrodes so the gas lights when you turn a knob. Replacing a failed module restores consistent, reliable burner lighting.

• Generates and distributes ignition spark to the surface-burner electrodes
• Activates when a burner knob/switch is turned to LIGHT
• Common symptoms of failure: no spark at all burners, intermittent ignition, continuous clicking, or burners that only light with a match
• If multiple burners lose spark together, the module or its power/ground is often suspect

• Disconnect power and shut off gas before servicing
• Access the module under the cooktop or behind the control panel; label wires and transfer one at a time
• Mount securely; ensure all spark leads and ground connections are fully seated and undamaged
• Restore power and test each burner for proper ignition

This oven burner baffle is a metal heat shield that directs heat and protects the oven floor and internal components for reliable cooking performance. It helps maintain even heating and keeps burner flames contained away from oven panels. What it does:

• Shields oven bottom and internal components from direct flame and high heat
• Helps stabilize burner flames for more consistent cooking and baking
• Prevents heat-related damage to oven floor and nearby parts
• Reduces hotspots that can cause uneven baking or browning

• One oven burner baffle

• Disconnect power and shut off gas supply before servicing;
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Ensure the baffle is seated and secured per the oven's parts diagram to avoid rattling or interference with the burner

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Restore reliable heating with this oven burner assembly. It channels gas through calibrated ports to produce a stable, even flame across the burner, promoting consistent ignition and uniform oven temperatures when baking. What it does:

• Directs gas from the oven valve and provides the flame path for heating
• Works with the igniter to light the oven flame
• Helps maintain even heat distribution throughout the oven
• Typical symptoms of a failed burner: delayed or no ignition, weak/uneven flame, sooting, popping on ignition, or slow/uneven preheating

• 1 oven burner assembly

• Disconnect power and shut off the gas supply; allow the oven to cool completely
• Remove oven racks and the oven bottom panel to access the burner
• Note igniter alignment and transfer any reusable mounting hardware from the original burner
• Restore gas/power, check all connections for leaks, and verify a steady, properly aligned flame

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This wire harness assembly routes power and signals between the appliance control and internal components, restoring reliable electrical connections for proper operation. Designed as a direct plug-in replacement to replace a damaged or worn wiring assembly. What it does:

• Provides factory-style electrical connections between the control board and powered components
• Carries control signals and power so motors, heaters, lights, or sensors operate correctly
• Common symptom: appliance won't start or specific functions are unresponsive
• Common symptom: intermittent operation or visible damaged/burned wires/connectors

• Disconnect the appliance from power (unplug or turn off breaker) before starting
• Compare new harness to the original to ensure connector types and routing
• Route and secure harness away from moving parts and heat sources per service instructions
• If terminals are corroded or connectors damaged, replace the harness rather than attempting repairs

The Gas Safety Valve is an OEM replacement part for Whirlpool gas ranges. This important safety device works to automatically shut off the gas supply to the range if abnormal flame conditions, such as flame rollout, occur.

Causes of a bad gas safety valve can include wear and tear from extended use over time, damage due to rust or corrosion from exposure to moist environments, or failure of internal components like springs or seals.

Symptoms of a bad gas safety valve include:

• Gas leaking around the range
• Burners or oven failing to ignite or stay lit
• Improper or uneven heating
• Other abnormal burner flame conditions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This burner valve controls the gas flow to a single surface burner, restoring reliable ignition and consistent flame control for gas ranges. It's a direct-fit replacement when the existing valve fails. What it does

• Regulates gas delivery to one surface burner so the burner lights and holds a steady flame
• Commonly replaces valves that cause weak or no flame at a burner
• Helps stop erratic flame behavior caused by faulty gas regulation
• Works with the range's control knob to adjust flame size safely

• One burner valve

• Turn off the gas supply and electrical power before starting work
• Verify the fit and orientation before final installation; some disassembly of the cooktop or manifold may be required
• Use proper gas fittings and check all connections for leaks with a soapy-water test after installation

This surface burner valve controls the flow of natural gas to a cooktop or range-top burner. Replacing a worn valve restores smooth flame adjustment and helps prevent leaks for safer, reliable everyday cooking performance. What it does:

• Regulates gas flow to one surface burner as you turn the control knob
• Provides a positive OFF shutoff to stop gas when the knob is off
• Helps deliver consistent flame levels from simmer to boil
• Common symptoms: burner won't light or is inconsistent, flame won't adjust, gas odor near the knob, or the knob is stiff/loose

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access the manifold; transfer burner tubing and any brackets/spark switch from the original valve to the replacement
• Use two wrenches on compression fittings; tighten securely without overtightening
• After reassembly, leak-check connections with soapy water and verify proper flame; follow your model's conversion procedure if changing gas type

This orifice is the small, precision gas fitting that meters fuel to a single burner for correct combustion and stable flame. It restores proper burner performance and helps maintain consistent heating. What it does:

• Controls gas flow to a burner so the flame size and heat output are correct
• Helps produce an even, stable flame for reliable cooking or heating
• Can address symptoms like weak or uneven flames, poor ignition, or burners that won't maintain heat
• Works with the burner tube and valve as part of the gas delivery system

• Turn off the gas supply and unplug the appliance before starting work
• Use the correct orifice size and tighten to OEM torque; loose or damaged fittings can leak
• After installation, check all connections for gas leaks with a soap solution or approved leak detector

This orifice controls gas flow to a single gas burner, restoring correct flame size and consistent cooking performance. Use it to replace a clogged, damaged, or incorrectly sized orifice for safe, even burner operation. What it does:

• Regulates the gas flow into the burner to produce the proper flame height and heat output
• Helps correct weak, uneven, or slow-to-light burner flames when the orifice is clogged or damaged
• Ensures stable combustion at the burner for consistent cooking results
• Works as the proper-fit replacement part when the original orifice is worn or obstructed

• One orifice

• Turn off the gas supply and unplug the appliance before beginning any service
• Only install if the orifice size matches appliance requirements; improper orifice sizing can affect performance and safety
• Use appropriate tools and follow the appliance service manual or diagram for access and reassembly

Replacement burner orifice (1.25) that controls gas flow to the burner for proper flame and cooking performance. Use when an orifice is clogged, damaged, or the wrong size for correct burner output. What it does:

• Regulates gas flow to the burner so the flame burns steadily and the cooktop reaches expected heat.
• Helps correct weak, uneven, or sooty flames and inconsistent burner heating when the orifice is the cause.
• Restores proper burner output after clogging, corrosion, or damage from wear or debris.

• Turn off the appliance power and shut off the gas supply before replacing.
• Verify the orifice size required for your fuel type and appliance before installation; do not file or modify the part.
• Tighten securely but avoid overtightening; check all connections for leaks after installation using an approved leak-detection method.
• If you smell gas or suspect a leak, turn off the gas immediately.

The Oven Igniter is an OEM part for Whirlpool ovens responsible for igniting the gas burner that heats the oven. It works by drawing electrical current through the igniter filament, heating it to a high temperature until it glows and ignites the gas to start the cooking process.

Symptoms of a failing Oven Igniter include:

• Oven not heating up at all
• Igniter glowing without igniting the gas
• Weak flame or delayed ignition
• Increased gas smell

Causes of a bad Oven Igniter can range from normal wear and tear, which reduces the igniter's efficiency over time, to physical damage or a buildup of dirt and grease that can interfere with its operation. A malfunctioning igniter can lead to uneven cooking, wasted gas, and in some cases, safety hazards due to the accumulation of gas without ignition.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


3/8 to 9/16

This is a replacement screw used to secure panels, trim, or small components on compatible Whirlpool appliances. Installing the correct fastener restores proper fit and helps stop rattles or loose trim. What it does:

• Secures trim, panels, or control components to prevent movement and rattling
• Replaces missing or damaged hardware that can cause gaps or loose parts
• Helps maintain proper alignment of panels and movement-free operation
• Used wherever a factory screw of this size and head style is specified

• Always disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threads engage, then tighten snugly—do not overtighten
• Keep removed hardware organized before final reassembly

This appliance screw secures panels, brackets, and internal components. Replacing a stripped or missing screw keeps parts tight and aligned, reducing vibration and preventing noise for reliable day-to-day operation.

• Secures mounting points for panels, brackets, or assemblies
• Replaces stripped, rusted, or missing hardware to restore a solid attachment
• Helps reduce rattling, vibration, and misalignment from loose fasteners
• Maintains proper fit so components operate as intended

• Disconnect power; turn off water or gas before service
• Match the screw to its original location and replace one at a time
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model

The Surface Burner Ignitor is an OEM part for Whirlpool gas ranges. This part ignites the gas to create a flame on the burner, allowing for efficient cooking.

Causes of a bad ignitor can include wear and tear from regular use, electrical issues, or physical damage to the ignitor element.

Symptoms of a bad surface burner ignitor include:

• The burner not lighting or taking longer to light
• Clicking sounds without ignition
• Weak or inconsistent flame
• The smell of gas without ignition

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Clip is an OEM part for Whirlpool ranges. This part holds the surface igniter in place, ensuring that it remains properly positioned to ignite the gas burner efficiently.

Causes of a bad surface igniter clip can include wear and tear from regular use, damage from high heat exposure, or breakage due to improper handling during maintenance.

Symptoms of a bad surface igniter clip include:

• The igniter not staying in place
• Difficulty in lighting the burner
• The burner not igniting at all
• Visible damage or deformation of the clip

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
